7-111
SYSTEM SETTINGS►SYSTEM SETTINGS

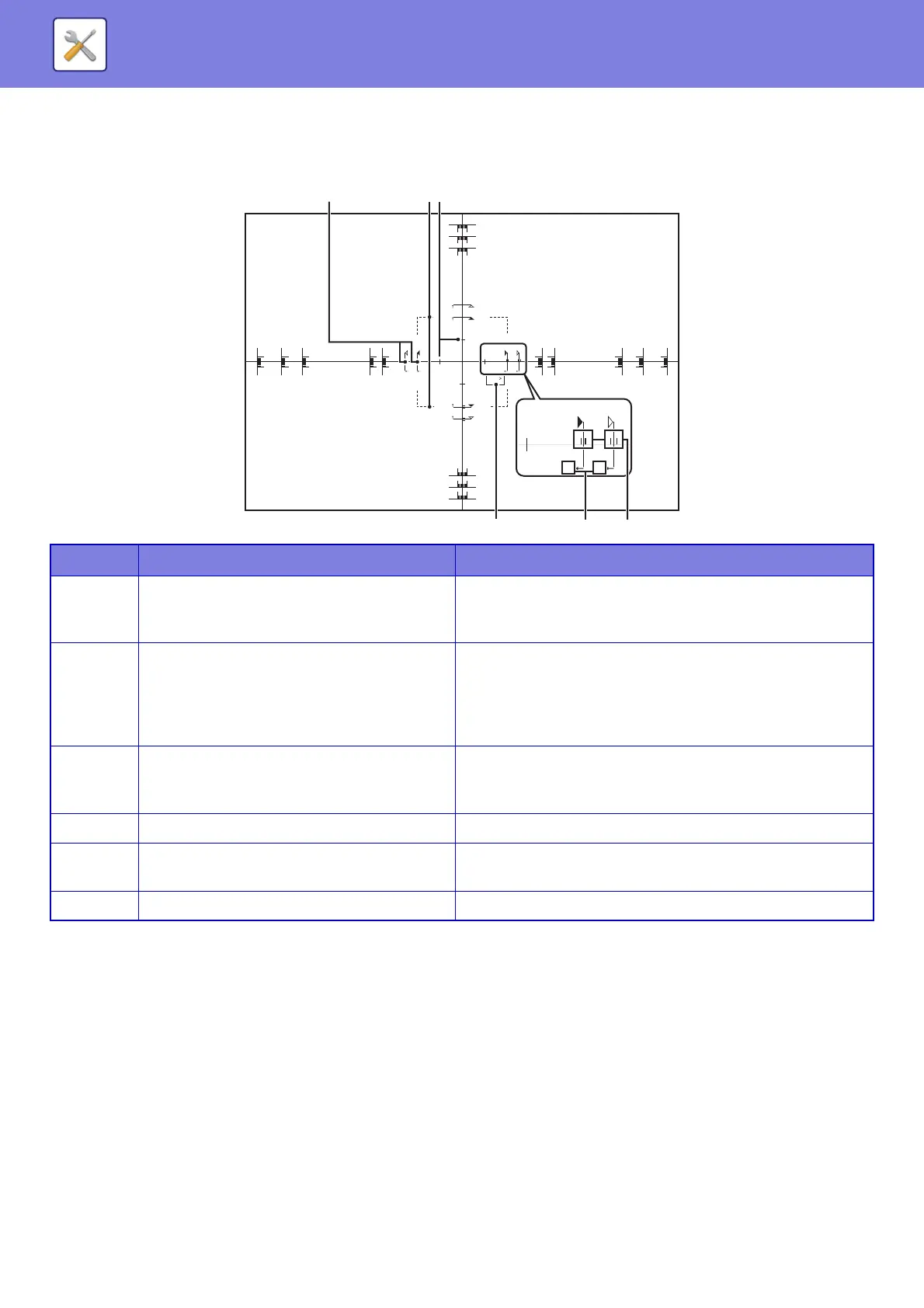

Measurement patterns for Side1/2, XY Ratio Settings / Side1/2, XY Print Position Settings
To specify Side1/2, XY Print Position Settings and Side1/2, XY Ratio Settings, print a pattern for measurement.
Content of the measurement pattern
The same measurement pattern content is printed at the same size, regardless of the paper size. The outer perimeter of
the measurement pattern is trimmed to match the paper size.
No. Item Description
1 Measurement Line
Reference line for measurement.
Measurement lines for AB sizes and inch sizes have been
created.
2 Dot Line
This line is visible through the Side 1 and Side 2 to let you
visually check for misalignment. The line is printed at the same
position on the Side 1 and Side 2. If visual inspection reveals
that the lines are not aligned, the print positions on the Side 1
and Side 2 are not aligned.
3 Assistant Line
Assistant line located 25 mm from the center of the paper.
When the paper size is 100 mm or less, use this line for
measurement.
4 Notes (Side 1/Side 2) These indicate the Side 1 and Side 2.
5 Notes (X/Y axis)
When entering the settings, these indicate the X and Y axes of
the paper.
6 Assistant Line (Magnification) Indicates a position that is ±1% of the measured distance.
X +5 -5 mm
X +5 -5 mm
X +5 -5 mm
X +5 -5 mm
X +5 -5 mm
X +5 -5 mm
Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm Y +6 -6 mm
X1 X1 X2 X2
Front
(Side1)
Y2
+1 -1
Y2 Y1 Y1
/10 mm : %(X) /5’’ : %(X)
/10 mm : %(X) /5’’ : %(X)
-1+1
/5’’ :
100%
/100mm :
100%
X2 X2
-1+1
(1) (2)(3)
(4)
(5) (6)
