2. Description
2-1. Control PWB CHK

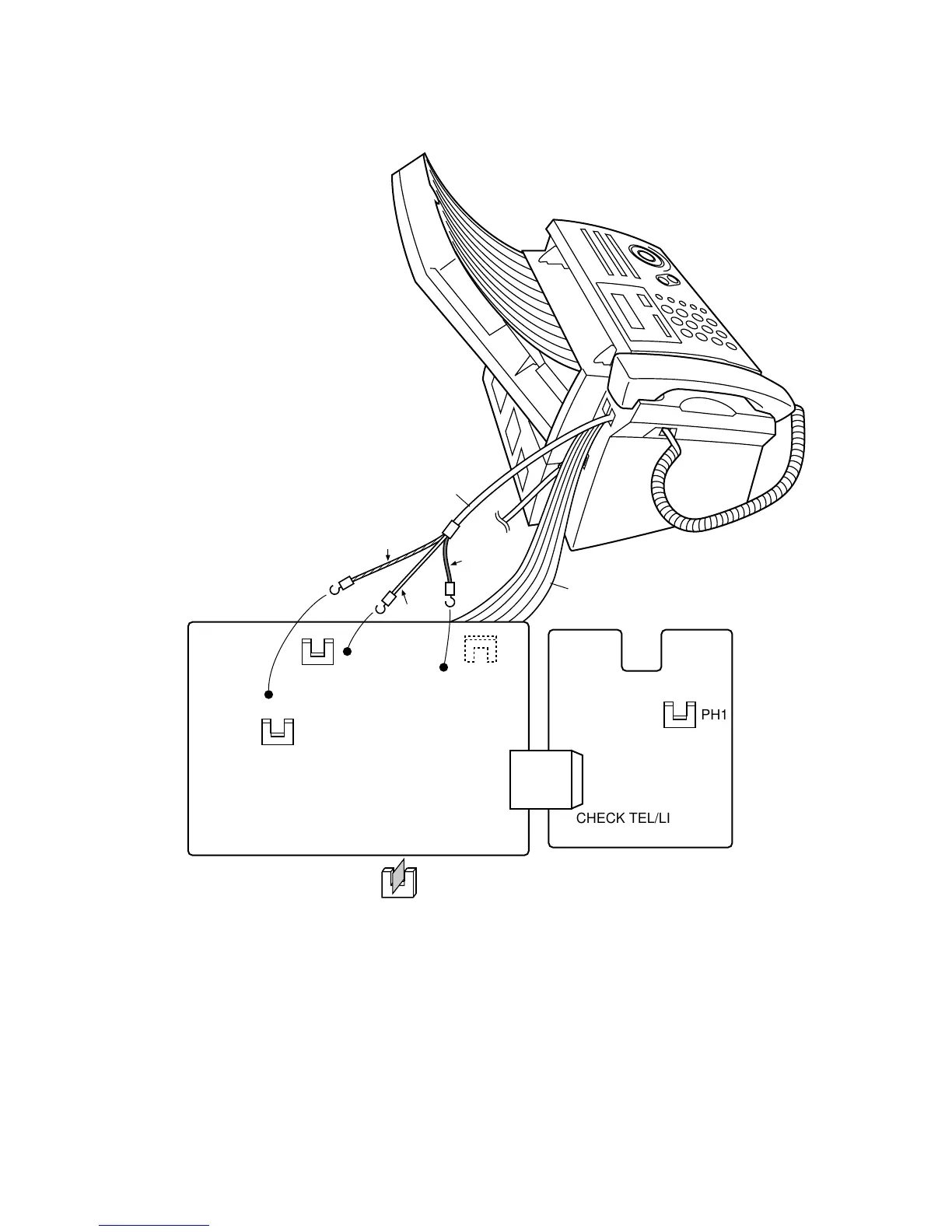

Install the extension PWB X3312 in the main unit. (Replace X3308.)
,,,




PH1
CHECK TEL/LIU PWB
(F3309)
RED
ORANGE
(HOOK-SW)
BROWN
QCNWG338BSCZZ QCNWG339BSCZZ
QCNWG344BSCZZ QCNWG345BSCZZ
QCNWG349BSCZZ QCNWG355BSCZZ
PH1
CHECK CONTROL PWB (X3308)
PH2
FRSNS(RED)
DRSNS
(BROWN)
PH100
ORGSNS
(ORANGE)
QCNWG348BSCZZ
* Block the groove in each PH like . Hook-SW (PH1 of TEL/LIU F3309) should be turned on/off manually.
