UX-B700U
FO-B1600U
[3] Disassembly and assembly procedures
• This chapter mainly describes the disassembly procedures. For the assembly procedures, reverse the disassembly procedures.
• Easy and simple disassembly/assembly procedures of some parts and units are omitted. For disassembly and assembly of such parts and units,
refer to the Parts List.
• The numbers in the illustration and the parts list in a same section are common to each other.
• To assure reliability of the product, the disassembly and the assembly procedures should be performed carefully and deliberately.

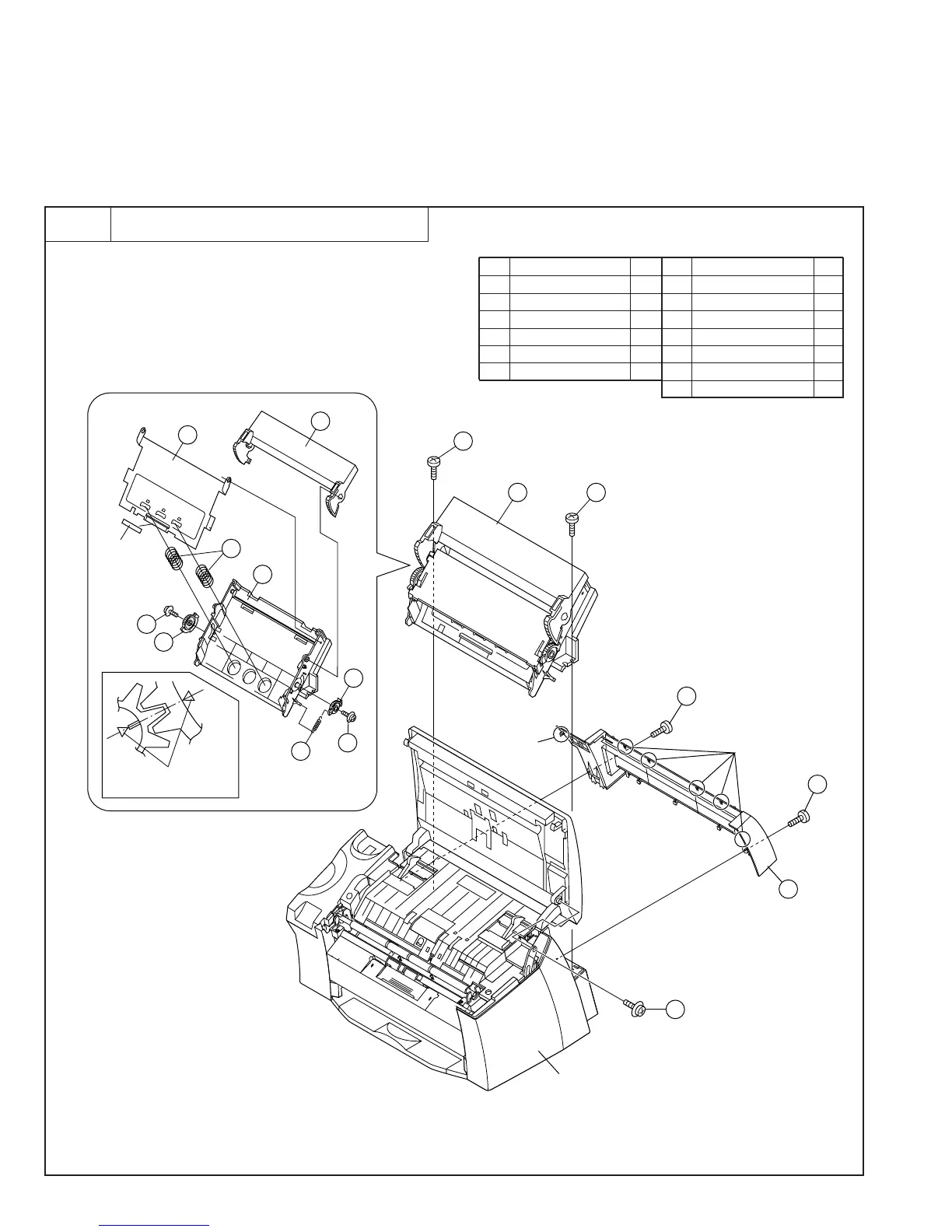

Back cover, Paper hopper unit
1
Parts list (Fig. 1)
Fig. 1
3 – 6
7 RP release gear, left 1
8 RP release gear, right 1
9 RP release plate 1
10 Rotation plate 1
11 Coil spring 2
12 Paper hopper 1
13 Screw 1
No. Part name Q’ty No. Part name Q’ty
1 Screw (3×12) 2
2 Back cover 1
3 Screw (3×10) 2
4 Paper hopper unit 1
5 Screw (3×6) 2
6 RP release spring 1
Hook
3
12
8
9
10
Paper pad
4 3
1
1
2
13
Main unit
Hook
11
7
5
6
5
Check the triangle
mark of gears
Paper hopper unit
Back cover
To Next Page
