Sharp UX-B700 Service Manual

UX-B700U
FO-B1600U

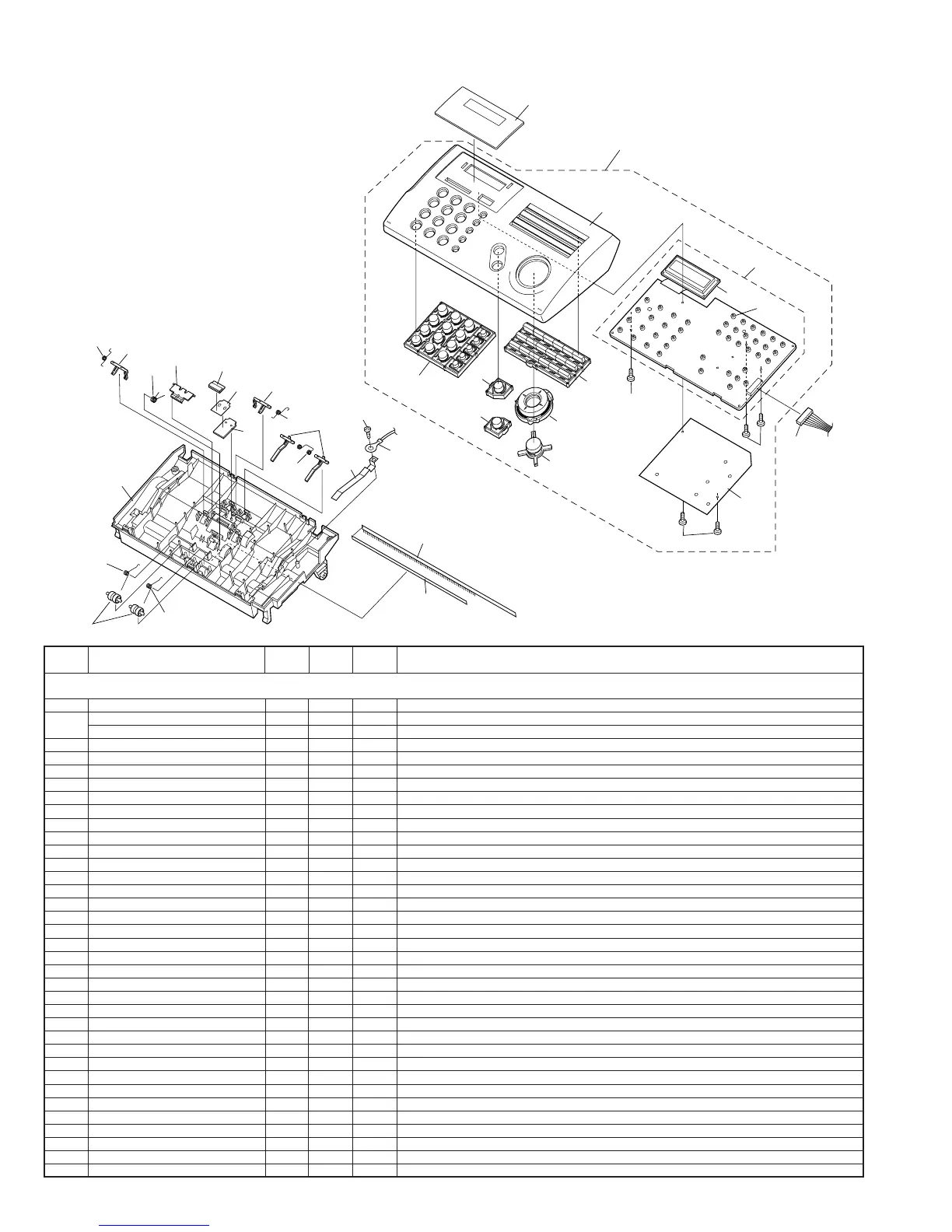

[2] Operation panel unit/Document guide upper
– 3 –
901
2
4
8
7
5
18
19
14
22
30
31
29
21
20
15
15
17
10
23
28
12
13
16
11
6
9
27
26
25
24
1
B1
B1
B1
B2
3
NO.
PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[2]Operation panel unit/Document guide upper
1 DCEKP439CXH01 BG N E Operation panel PWB unit
2 HPNLH2426XHZZ AL N D Decoration panel [UX-B700U]
HPNLH2426XHZA AL N D Decoration panel [FO-B1600U]
3 GCASP2168XHSA AU N D Panel case
4 JBTN-2381XHSA AG N C 12 key
5 JBTN-2382XHSA AF N C Start/Memory key
6 JBTN-2383XHSA AF N C Function key
7 JBTN-2384XHSA AF N C Stop key
8 JBTN-2385XHSA AF N C Copy/Help key
9 JBTN-2386XHSA AG N C Rapid Dial key
10 LPLTG3268XHZZ AE N C Separate rubber
11 LPLTP3175XHZZ AD C Separate plate
12 LPLTP3257XHZL AE N C Sub feed plate,left
13 LPLTP3257XHZR AE N C Sub feed plate,right
14 MARMP2034XHZZ AE N C Paper feed plate
15 MSPRD3401XHZZ AE N C Pinch pressure spring
16 MSPRD3398XHZZ AE N C Separate spring
17 MSPRD3399XHZZ AE N C Paper feed spring
18 MSPRD3400XHZZ AD N C Sub feed spring,left
19 MSPRD3405XHZZ AD N C Sub feed spring,right
20 NROLP2332XHZZ AD C Pinch roller
21 PGIDM2650XHSA AU N C Document guide upper
22 PSHEM3772XHZZ AG N D Earth sheet 2
23 PSHEP3773XHZZ AK N D Separate sheet
24 PSHEZ3757XHZZ AG N C Panel sheet
25 QCNWN334BXHZZ AP N C Panel cable
26 QSW-K0005AWZZ AC C Tact switch(SW)
27 RUNTZ2080XH01 BA E LCD unit
28 PCUSU2196XHZZ AE N C Separate cushion
29 QCNWN389BXHZZ AF N C Earth cable
30 PBRS-2062XHZZ AZ N C Static brush
31 PSHEZ3776XHZZ AF N D Static brush sheet
B1 XUBSD20P06000 AA C Screw(2x6)
B2 XEBSD30P10000 AA C Screw(3x10)
(Unit)
901 DCEKP438CXH01 BM N E Operation panel unit
