[2] Operation panel
DEF
AM
1 2 3
4 5 6
7 8 9
0
TEL FAX
MNO
WXYZ
ABC
JKL
TUV
GHI
01 02 03 04 05 06
07 08 09 10 11 12
13 14 15 16/POLL 17/G1 18/G2
PQRS
RESOLUTION
/
HOLD
SPEED DIAL
FUNCTION
COPY/HELP
STOP
REDIAL
ZA
UP
PLAIN PAPER INKJET FAX
DOWN
START/
MEMORY
SPEAKER
RECEPTION MODE
13 4
57 109
121186
2
13
PANEL RELEASE

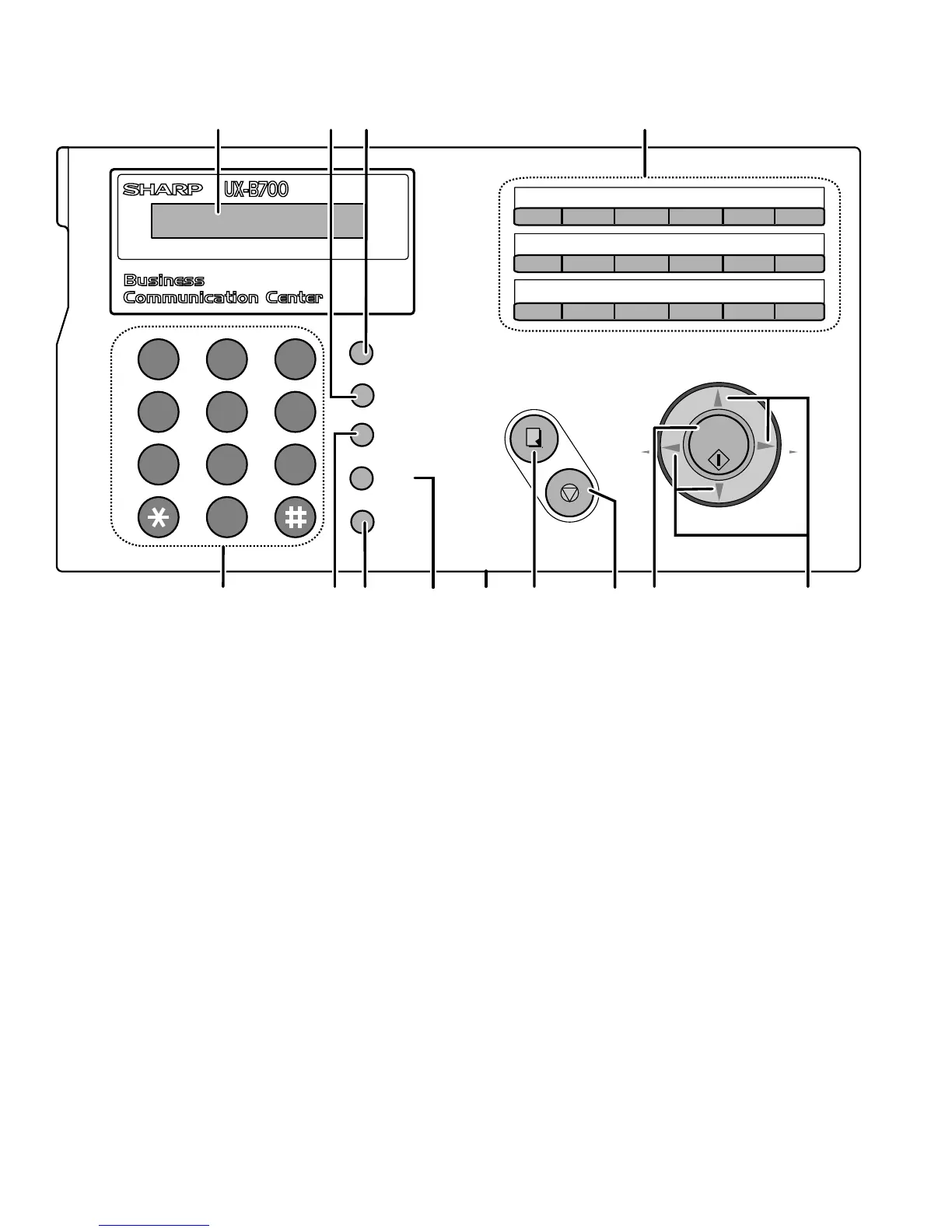

1. Display
This displays messages and prompts to help you operate
the machine.
2. FUNCTION key
Press this key followed by the arrow keys to select special
functions and settings.
3. RESOLUTION / RECEPTION MODE key
When a document is in the feeder, press this key to adjust
the resolution for faxing or copying. At any other time,
press this key to select the reception mode (an arrow in
the display will point to the currently selected reception
mode).
4. Rapid Dial Keys
Press one of these keys to dial a fax number automatically.
5. Number keys
Use these keys to dial numbers, and enter numbers and
letters when storing auto-dial numbers.
6. SPEED DIAL key
Press this key to dial a fax or voice number using an
abbreviated 2-digit Speed Dial number.
7. SPEAKER key
Press this key to listen to the line and fax tones through
the speaker when faxing a document.
Note: This is not a speakerphone. You must pick up the
handset to talk with the other party.
8. HOLD key
Press this key to put the other party on hold during a phone
conversation.
When this is done, they cannot hear you. You
can put the handset back in the cradle without breaking the
connection. When you are ready to speak with the other
party again, pick up the handset. If you did not put the
handset back in the cradle, press the HOLD key again to
resume conversation.
9. PANEL RELEASE
Grasp here and pull up to open the operation panel.
10.COPY/HELP key
When a document is in the feeder, press this key to make a
copy of a document. At any other time, press this key to
print out the Help List, a quick reference guide to the
operation of your fax machine.
11.STOP key
Press this key to cancel an operation before it is completed.
12.START/MEMORY key
Press this key after dialing to begin fax transmission. Press
this key before dialing to send a fax through memory. The
key can also be pressed in the date and time display to
show the percentage of memory currently used.
13.Arrow keys
Use these keys to scroll through and select settings, and to
search for auto-dial numbers.
Illustration: UX-B700U
