UX-B700U
FO-B1600U
8 – 6
[2] Changing the record paper size
How to change the A4 size and letter size of the record papers

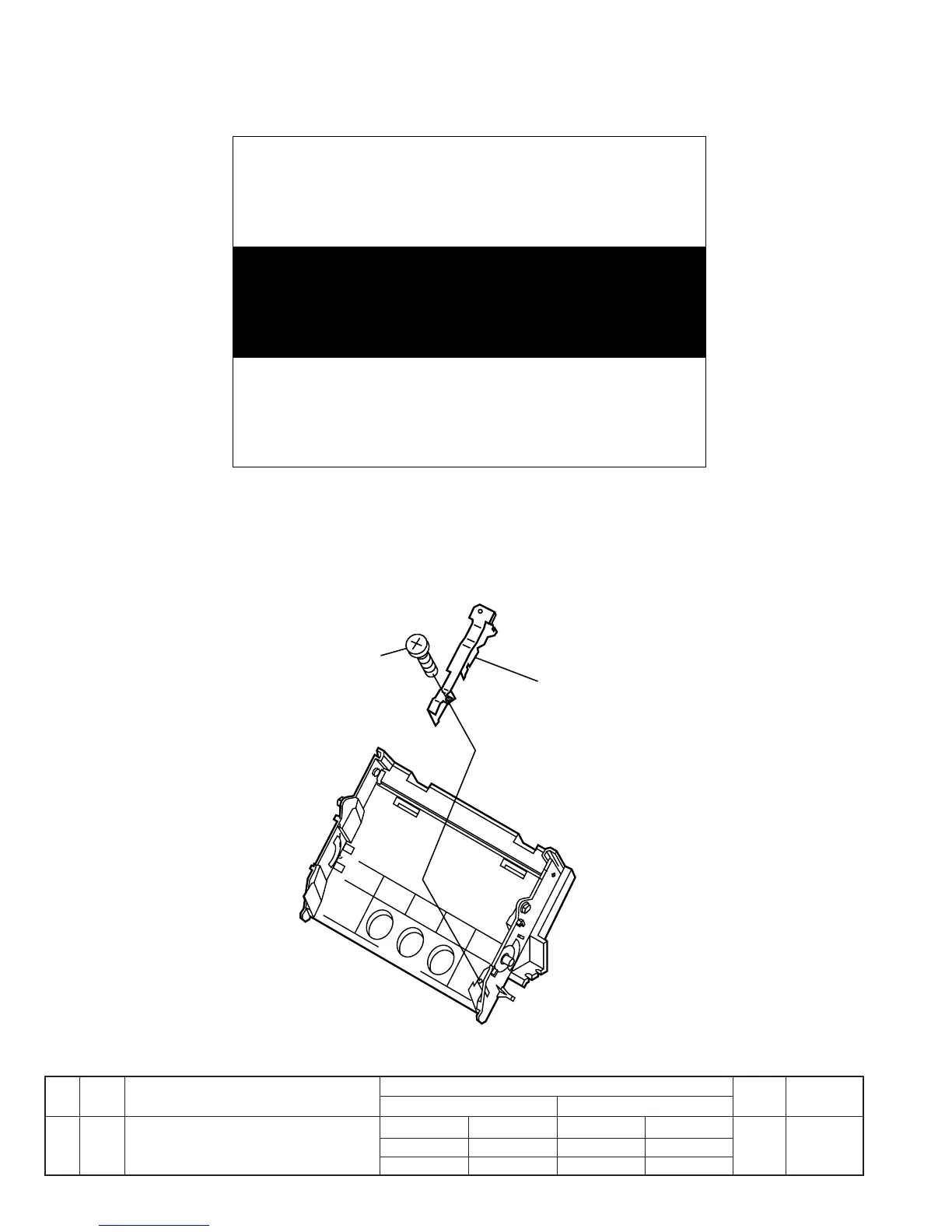

1) It becomes the record paper of the A4 size by installing A4 guide (PGiDM2493AXSA)
which shows in the drawing. Remove A4 guide when you use the record paper of the letter size.
Paper set size LETTER LEGAL A4 OPTION
1 No. 1 0 0 1 0
2 No. 2 0 1 0 0
SW
l
L2
SW
NO.
DATA
NO.
ITEM
Switch setting and function
1
0
Remarks
Initial
setting
2) Set soft switch SW-L2 No.1 and the initialization of SW-L2 No.2 as follows.
A4 Guide
PGIDM2493AXSA
3 x 10 Screw
XEBSD30P10000
2-4. Shading paper
The white and black basis is applied to remember the shading waveform. Be sure to perform this operation when replacing the battery or replacing the
control PWB. Execute in the shading mode of DIAG mode.
SHADING WAVE MEMORY STANDARD PAPER (PSHEZ3579SCZZ)
To Next Page
