UX-B700U
FO-B1600U

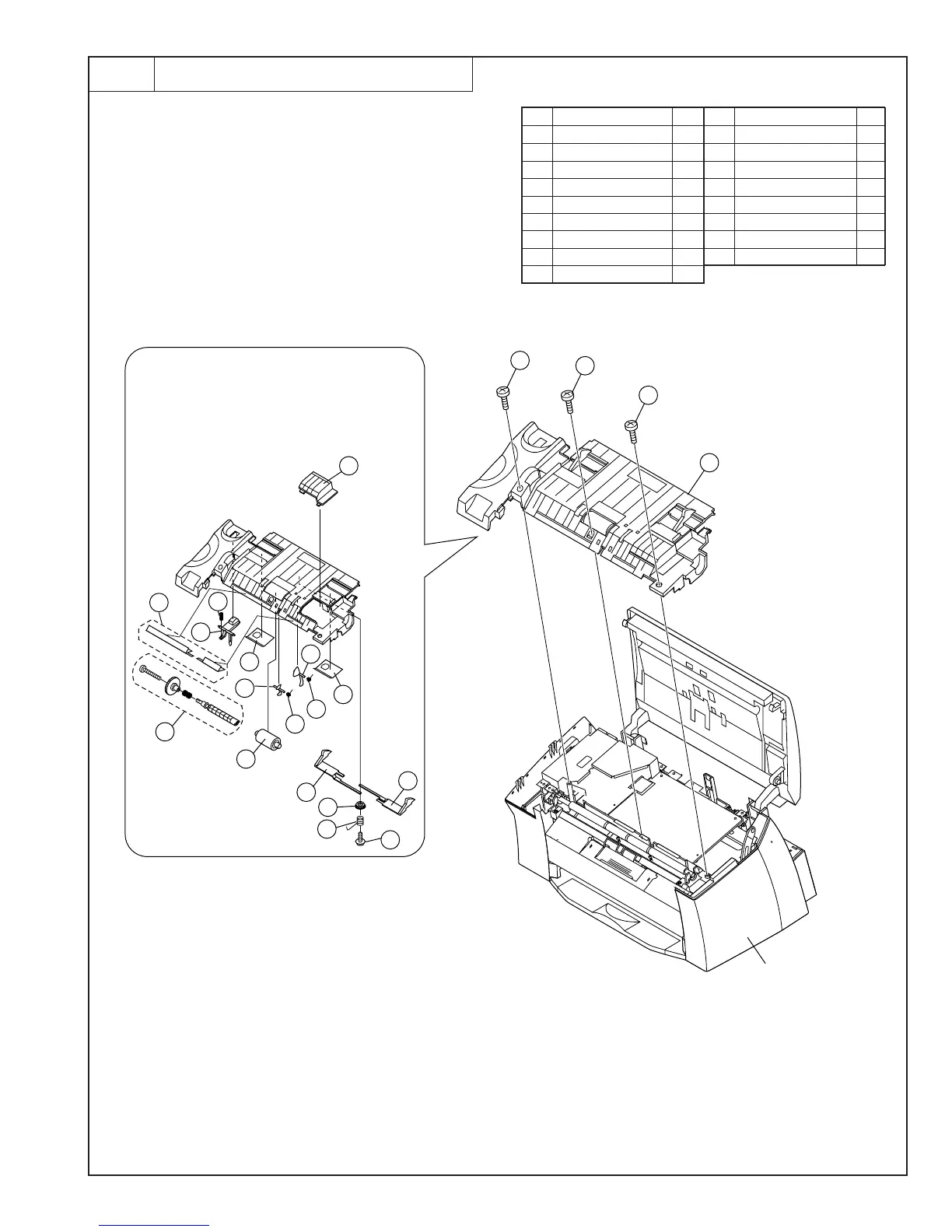

Fig. 2
Document guide lower unit
2
Parts list (Fig. 2)
3 – 7
10 ORG sensor lever 1
11
ORG Sensor lever release spring
1
12 Paper feed gear unit 1
13 Paper feed roller unit 1
14 Screw (3×6) 1
15 Hopper spring 1
16 Pinion gear 1
17 Hopper guide 2
No. Part name Q’ty No. Part name Q’ty
1 Screw (3×12) 3
2
Document guide lower unit
1
3 Connector cover 1
4 Earth sheet (2pcs.) 1
5 Document under sheet 2
6 Hook switch lever 1
7
Hook switch lever spring
1
8 Front sensor lever 1
9
Front Sensor lever release spring
1
Caution:
The CONNECTOR COVER can be
opened easily by inserting a thin head jig
such as a metal stick.
1
1
1
2
Main unit
17
10
6
5
5
7
4
13
12
11
9
17
15
8
3
14
16
Document guide lower unit
To Next Page
