55
ENGLISH
•
Y

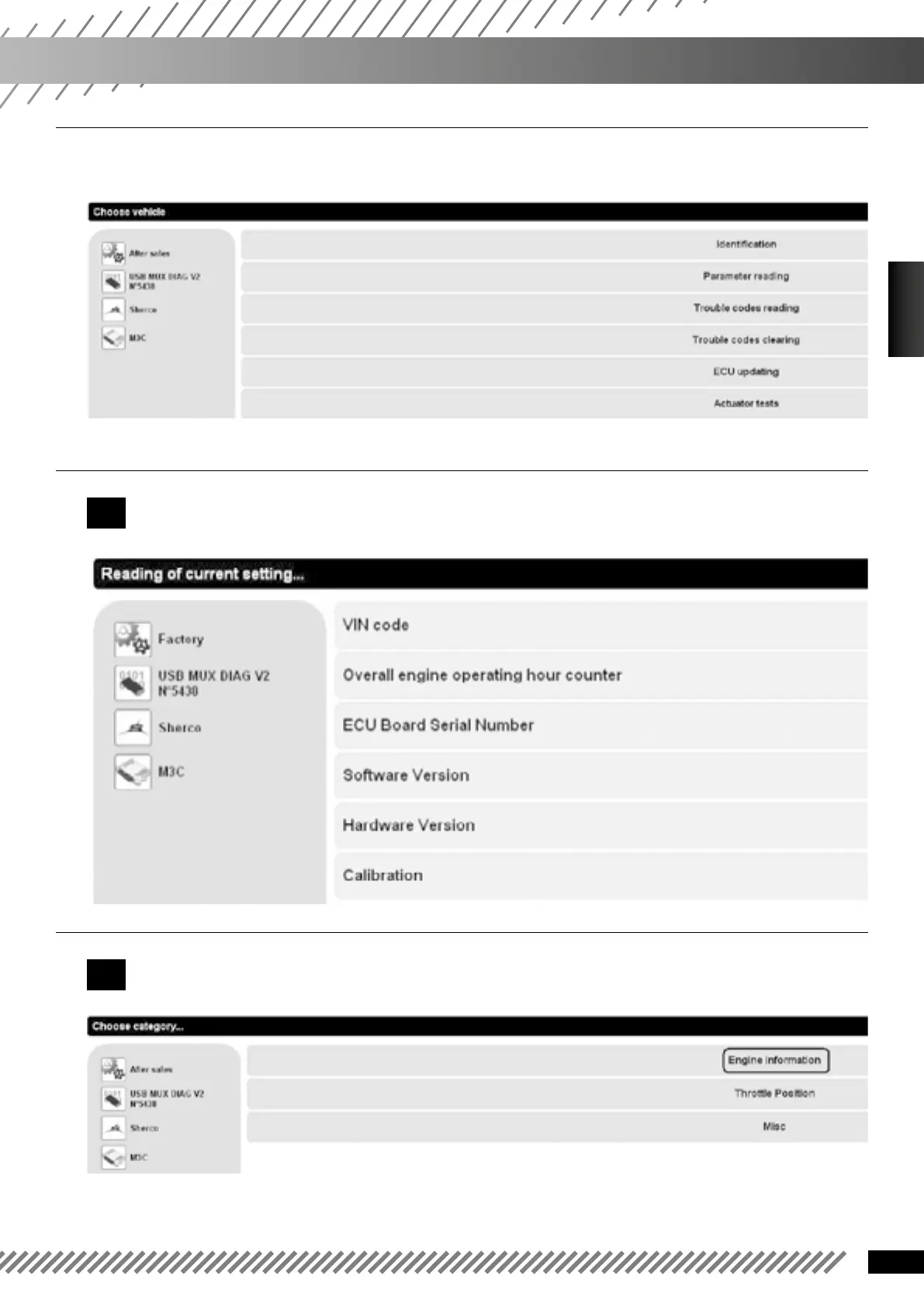

ou reach the follo
wing menu:
3.1-
Identification:
checking identification (serial number
,
vehicles operating hours,
calibration number).
3.2-
Measuring the parameters:
general parameters (speed,
pressure,
stepper
, etc.).
Injection diagnostic tool S
YNERJECT
54
56
Table of Contents
Default Chapter
2
Table of Contents
2
Foreword
4
Engine Tools List 450 Sef-R
5
Technical Specifications
6
Engine
6
Chassis
7
Factory Settings
8
Fork
8
Shock Absorber
9
Operations Requiring the Removal, or Not, of the Engine
10
Removing/Installing the Engine
11
Removing the Engine
11
Installing the Engine in the Frame
12
Removing the Engine
13
Preparation
13
Removing the Cylinder Head Cover
13
Positioning the Engine at Top Dead Center
13
Removing the Camshaft
14
Removing the Distribution Tensioner
14
Removing the Drive Chain
14
Removing the Cylinder Head
15
Removing the Cylinder
15
Removing the Piston
15
Removing the Ignition Cover
15
Replacing the Stator and the Engine Speed Sensor
16
Removing the Rotor
16
Removing the Drive Chain
16
Removing the Electric Starter
16
Removing the Clutch
17
Removing the Water Pump Housing
17
Removing the Clutch Housing
17
Removingthe Water Pump Oilseal and the Bearing Seal
18
Removing the Clutch Bellhousing
18
Removng the Freewheel Sprocket
19
Removing the Oil Pump
19
Changing the Oil Pump
19
Removing the Index Shim
19
Separating the Central Crankcases
20
Removing Thegearbox
20
Removing the Crankshaft
20
Checking Individual Parts
21
Checking the Central Crankcases
21
Checking the Left Crankcase
21
Checking the Right Crankcase
21
Checking the Freewheel Bearing
22
Changing the Crankshaft Bearings
22
Checking the Crankshaft
23
Checking the Gearbox
24
Checking the Clutch
24
Checking the Top Engine
25
Checking the Cylinder Head
28
Checking the Distribution
28
Engine Assembly
29
Installing the Central Crankcases
29
Installing the Clutch Housing
31
Installing the Water Pump Housing
31
Installing the Clutch
32
Installing the Electric Starter
32
Setting the Piston Rings
33
Installing the Piston
33
Installing the Cylinder
34
Installing the Cylinder Head
34
Installing the Drive Chain
35
Installing the Rotor
35
Installing the Camshaft and Setting the Valve Timing
36
Checking Valve Clearance
36
Completing the Engine Assembly
37
Installing the Ignition Cover
37
Tightening Torque Chart
38
Cleaning the Throttle Body
40
Equipment
40
Removing the Throttle Body
40
Cleaning the Throttle Body
42
Installing the Throttle Body
42
Changing the Tps (Throttle Position Sensor)
43
Injection Diagnostic Tool Synerject
44
1 Presentation of the Synerject Injection System
44
2 Software Overview
50
3 Using the Software
54
Checking the Charging Circuit
67
Wiring Diagram
69
