8. ADJUSTMENT
1) Link Adjustments
(1) Neutral Position Adjustment
1. Jack up the front and rear wheels off of the ground
and place jack stands under the axles.
Make sure all four wheels are clear of the ground
and the commercial mower is properly supported.
2. Disconnect the wires from the seat neutral start
switch and connect a jumper wire between the two
harness leads. Apply the master brake pedal and
start the engine, release the brake pedal.
3. Set the throttle at low speed and place the range
shift lever in the low range position.
4. If the wheels rotate at this time, loosen the bolt (1)
and rotate the eccentric sleeve (2) until the wheels
stop and tighten the bolt, Figure 421X.
NOTE: Turning the control lever (3) clockwise will
cause wheels to rotate in forward and
turning counterclockwise the wheels will
rotate in the reverse direction.
5. Stop the engine and remove the jack stands.
Lower the wheels to the ground.
6. Re-connect the seat neutral start switch wires.
7. While seated in the operators seat, start the engine
with the range lever in low range, and increase the
engine speed to full throttle. The commercial
mower should not move in either direction.

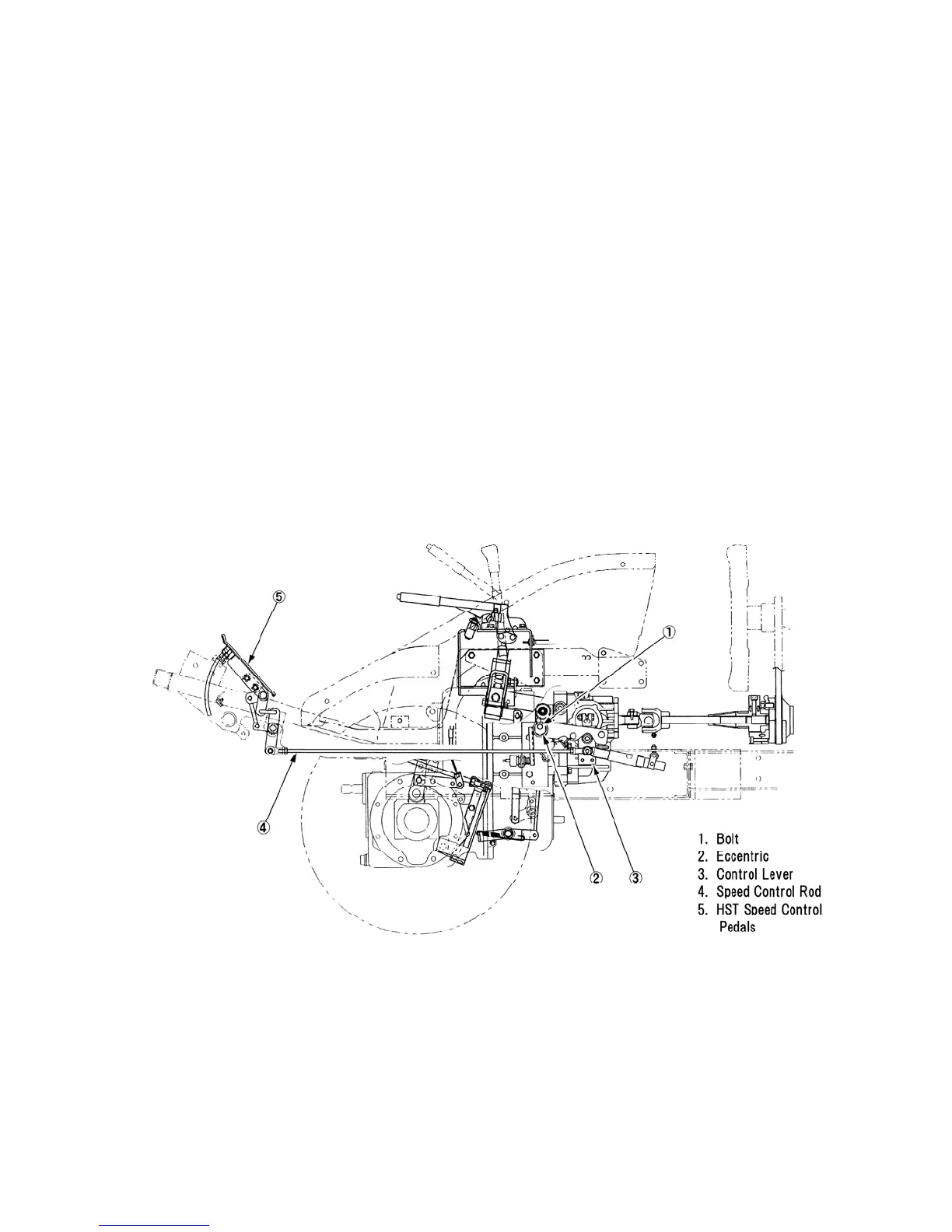

421X
