152
4. DISASSEMBLY

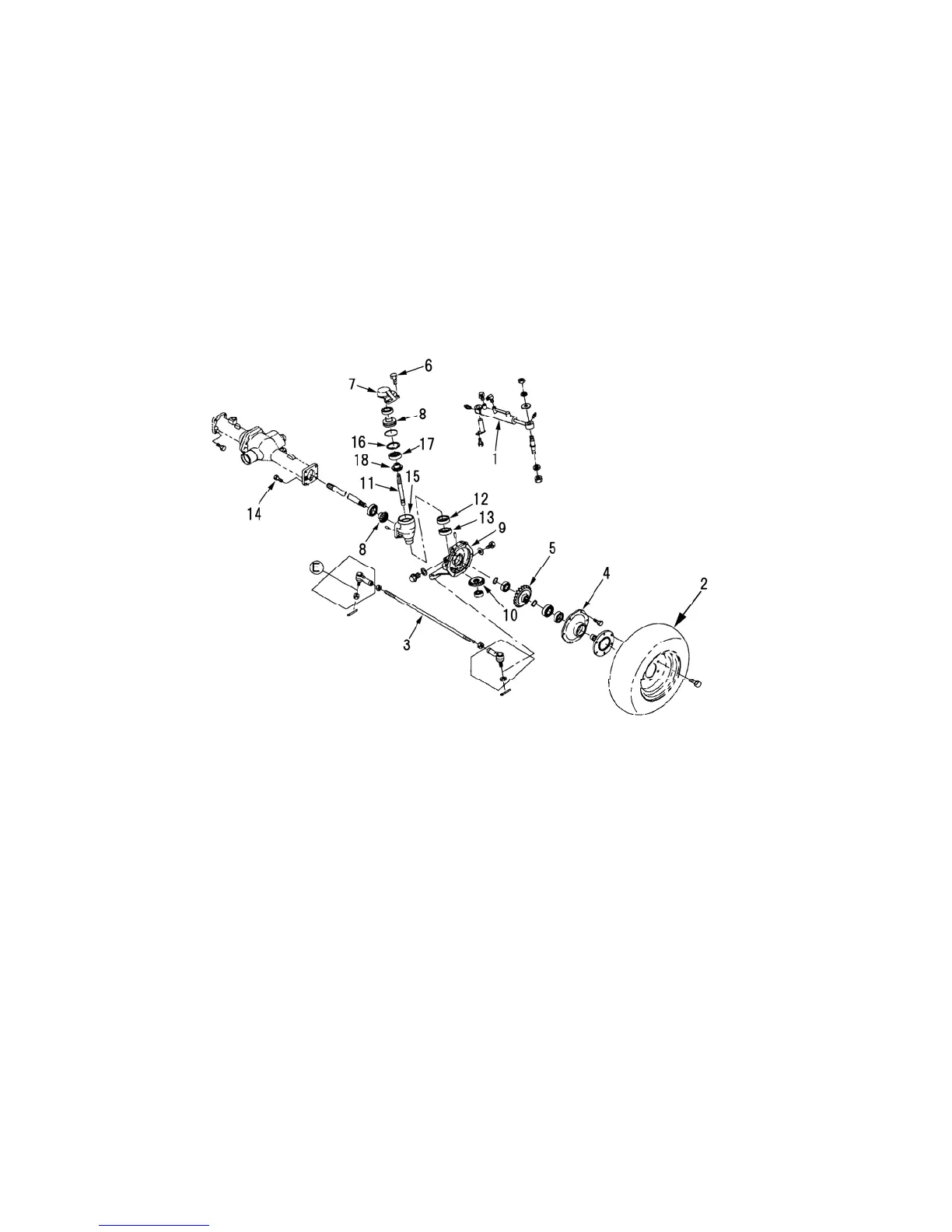

Reference Figure 604X.
1. Remove the rear axle as outlined above and then remove the power steering cylinder (1), wheels (2) and tie rod (3)
from the rear axle assembly.
2. Remove the outer case cover (4) and bevel gear (5) as an assembly.
3. Remove the bolts (6), arm (7) and king pin (8).
4. Remove the final case (9), final pinion (10) and drive shaft (11) to downward.
NOTE: If necessary, remove the seal (12) and bearing (13) from the case.
5. Remove the bolts (14) and remove the idler gear case (15) assembly.
6. Remove the snap ring (16), bearings (17) and idler bevel gears (18) from the idler gear case (15).
1. Power steering cylinder 6. Bolt 11. Drive shaft 16. Snap ring
2. Rear wheel 7. Arm 12. Seal 17. Bevel gear
3. Tie rod 8. King pin 13. Bearing
4. Outer case cover 9. Final case 14. Bolt
5. Bevel gear 10. Final pinion 15. Idler gear case
604X
