Shibaura CM284 - Electrical Units; Alternator

46
2-3 Electrical Units

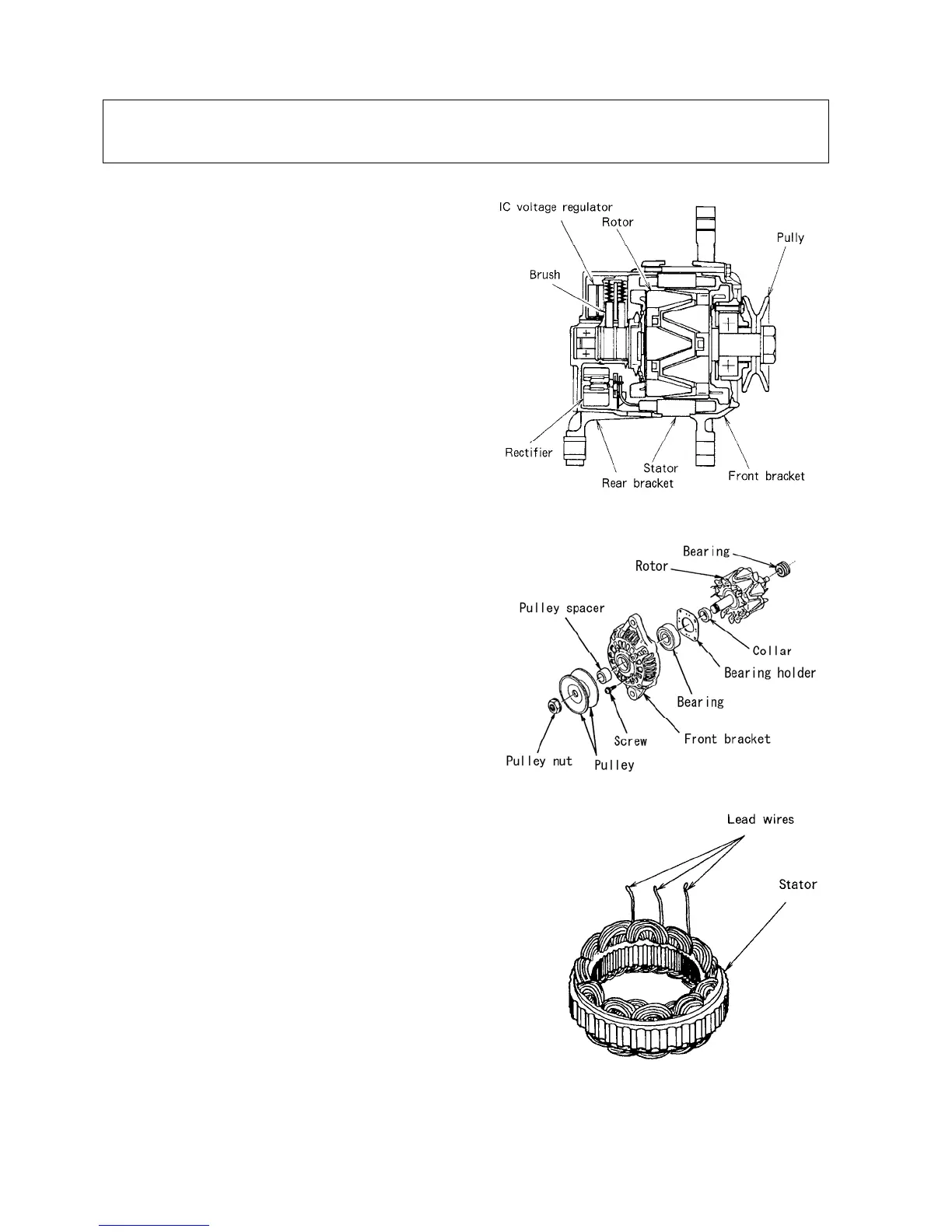

1. Alternator
(No. 185046320 – A007T03877)
1) Disassembly
① Make both brackets and the stator with a scribe mark
for assembly.
② Remove the four through bolts. Pry between the
stator and front bracket with blade of a screw driver.
Carefully separate the front bracket, pulley and rotor
assembly away from the stator and rear bracket
assembly.
③ Place the rotor in a vice with soft jaws and remove
the pulley nut, washer, pulley spacer and front
bracket from the rotor.
④ Unsolder three stator leads and remove the stator.
⑤ Remove the voltage regulator assembly and rectifier
assembly as a set.
088X
089X
090X
