154
14. Remove the bolts (11) from the ring gear (2), and
remove the gear, side cover (3), thrust washer (7) and
side gear (5).
15. Remove the pinion shaft (8), pinions (6), thrust
washer (7) and the opposite side gear and thrust
washer.
5. INSPECTION
1. Wash all parts in a suitable solvent and air dry.
2. Check the bearings for discoloration and wear.
3. Discard all seals and O-rings.
4. Check all gears for wear, chips or broken teeth.
5. Measure the thickness of the thrust washers (4).
Replace the thrust washers if thickness is less than
0.9 mm.
6. Measure the thickness of the thrust washers (7).
Replace the thrust washers if thickness is less than
0.9 mm.
7. Measure the outside diameter of the pinion
shaft (8) and inside diameter of the pinion gears (6).
Replace the pinion or gear if clearance is more than
0.5 mm.
8. Measure the outside diameter of the pivot shaft (1)
and inside diameter of the bushings (2).
Replace the pivot shaft or bushing if clearance is
more than 0.3 mm.

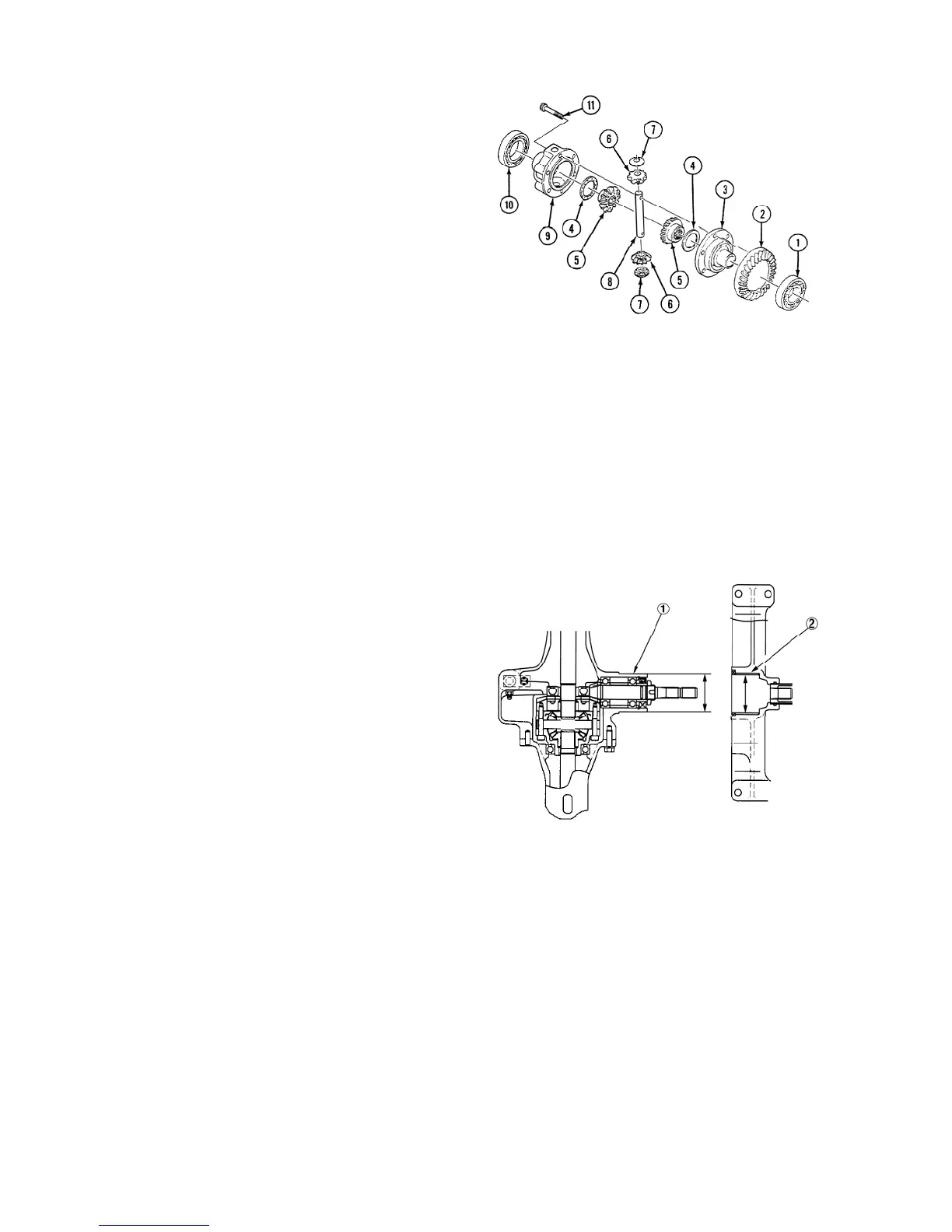

608X
1. Bearing (6207) 7. Thrust Washer
2. Ring Gear 8. Shaft
3. Side Cover 9. Case
4. Thrust Washer 10. Bearing (6009)
5. Side Gear 11. Bolt
6. Pinion
609X
1. Pivot Shaft 2. Bush
