1. DESCRIPTION AND OPERATION
1) Removal
The transaxle assembly consists of a two-speed gearbox, a
differential assembly, PTO clutch assembly, PTO shaft and
inboard brake.
The front axle, consists of differential lock linkage, axles,
and brakes.

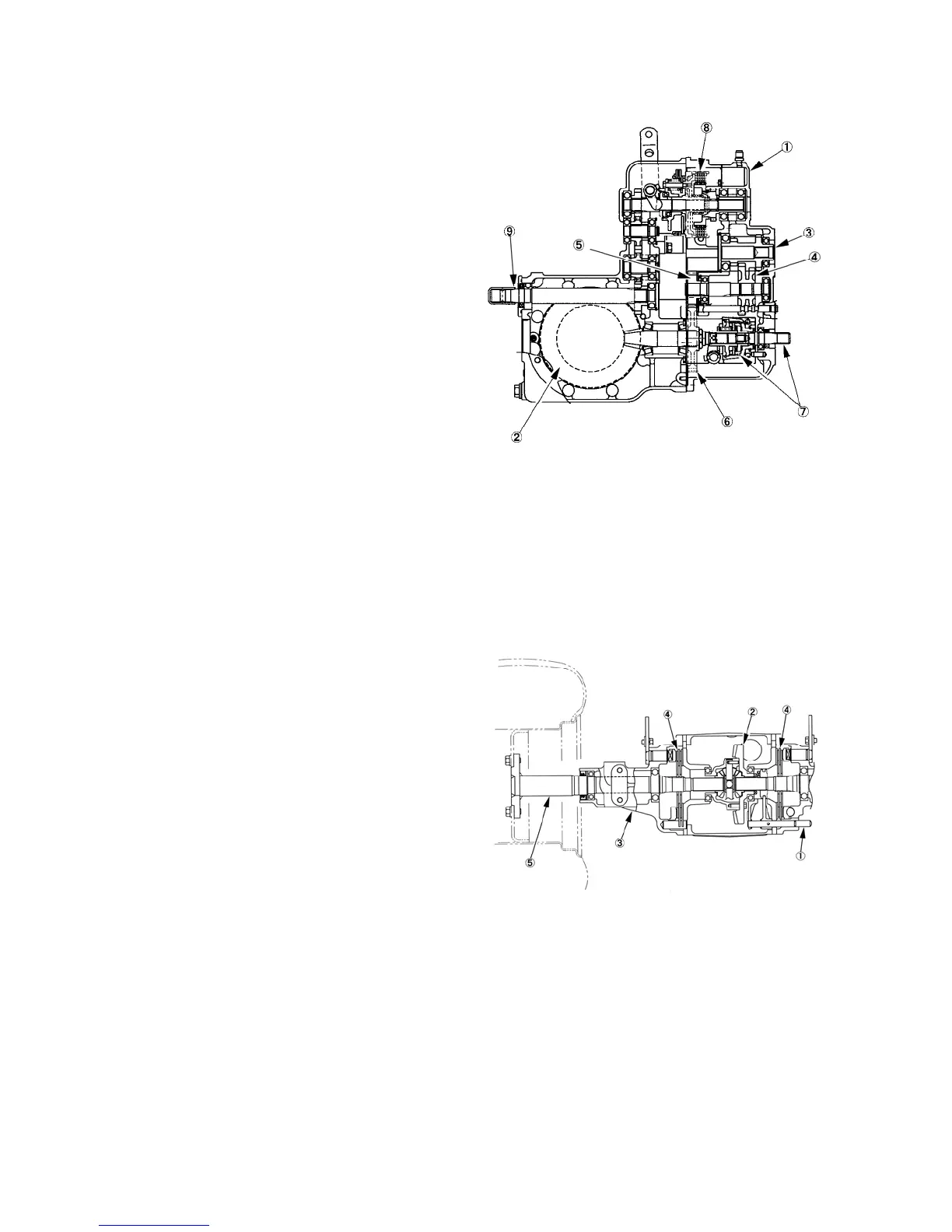

300X
Transaxle Assembly
1. Transmission 5. Fixed Gears
Gearbox (2-Speed) 6. Pinion Drive Gear
2. Differential 7. Rear Wheel Drive
Assembly Output Shaft and
3. Input Gear Cluster Two Way Clutch
4. Sliding Gears 8. PTO Clutch Assembly
9. PTO Shaft
301X
Transaxle Assembly
1. Differential Lock 3. Axle Housing
Lever 4. Inboard Brake
2. Differential 5. Drive Axle
Assembly
