156

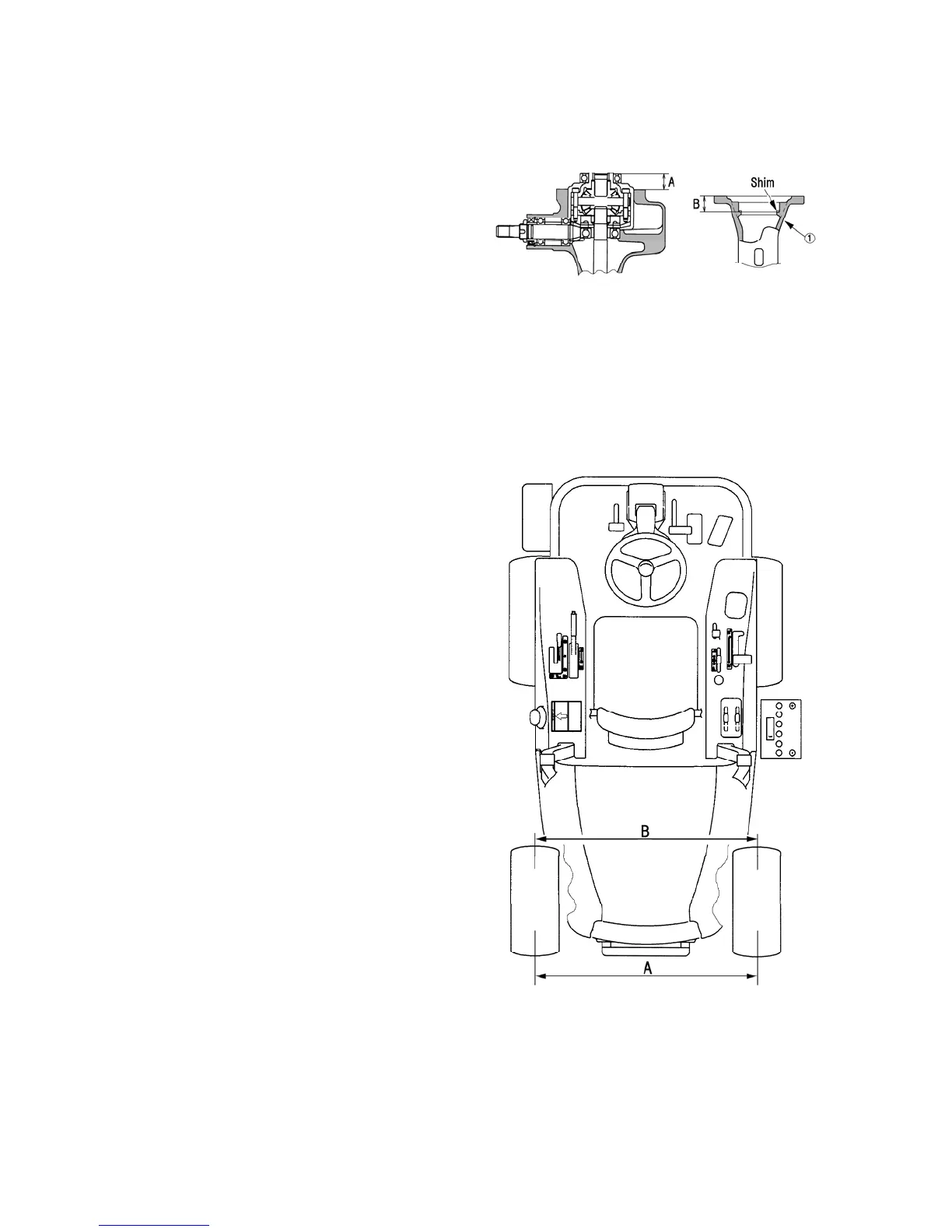

8. Adjust the ring gear to pinion backlash as follows:
● With the drive pinion and left axle installed, place
the differential assembly into the housing.
Measure the distance “A” from bearing to the
housing.
● Measure the depth of the right hand axle housing
“B” from the housing to the bottom of the bearing
bore.
● Select shims so that measurement “A” equals
measurement “B”.
For example: If measurement “B” is 20.5 mm. and
measurement “A” is 20.0 mm, the difference is 0.5
mm.
Place the selected shim(s) into the right axle
housing (1) prior to assembly. This procedure will
give you the collect ring gear to pinion backlash.
7. INSTALLATION
Installation generally follows removal procedure in reverse
however, the following must be observed:
Adjust the toe-in (A - B) with the tie rod to 5 mm.
Fill the rear axle to the level plug with gear oil.
612X
613X
