93

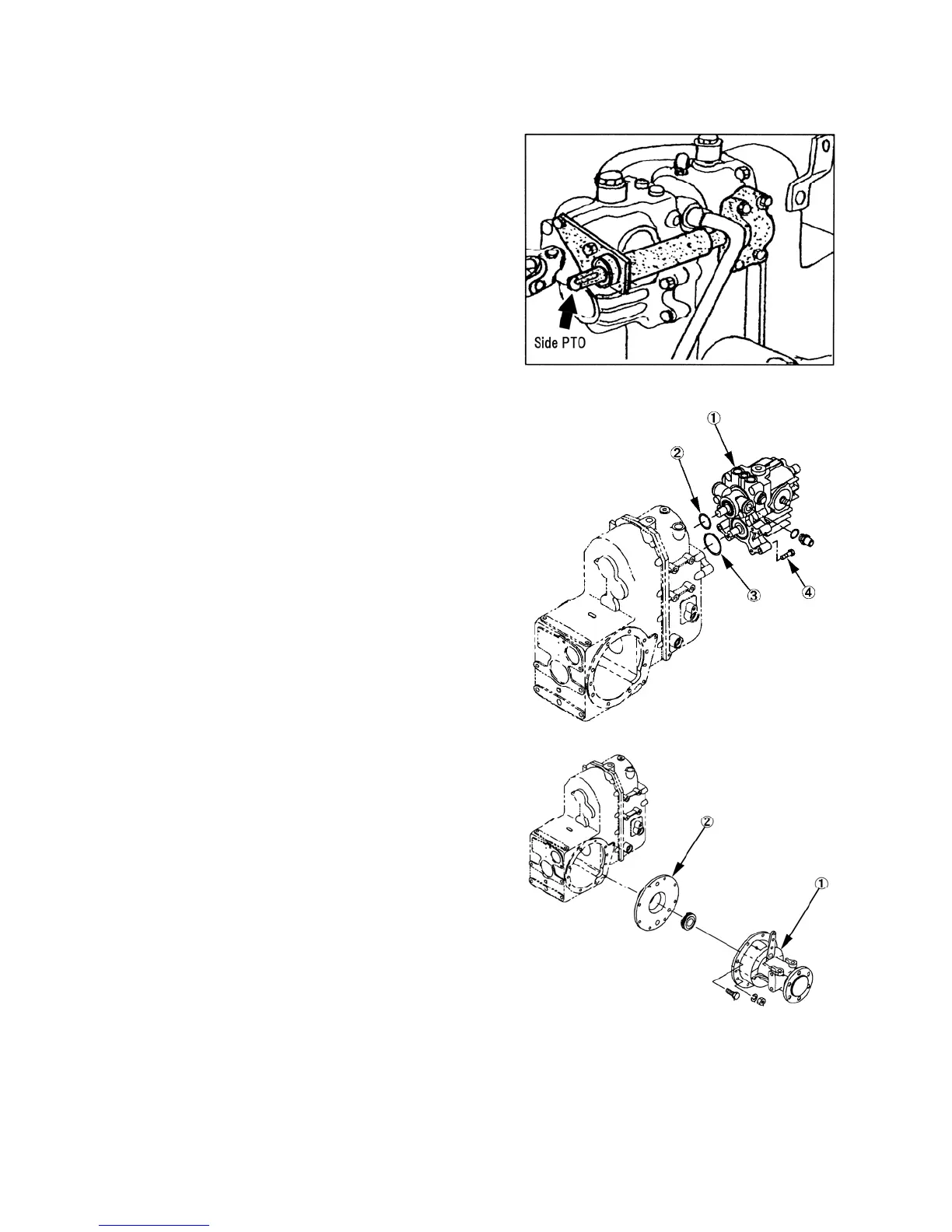

2) Front Transmission Unit
(1) Disassembly
1. Remove the side PTO unit from the transmission
housing and HST unit.
2. Remove the HST unit ①, from the transmission
assembly.
① HST Unit
② O-Ring
③ O-Ring
④ Bolt
3. Remove the L.H. wheel shaft housing ①, and bearing
holder ②.
NOTE: Note the total amount of shims and
thickness used between differential bearing
and bearing holder.
325X
326X
327X
To Next Page
