92

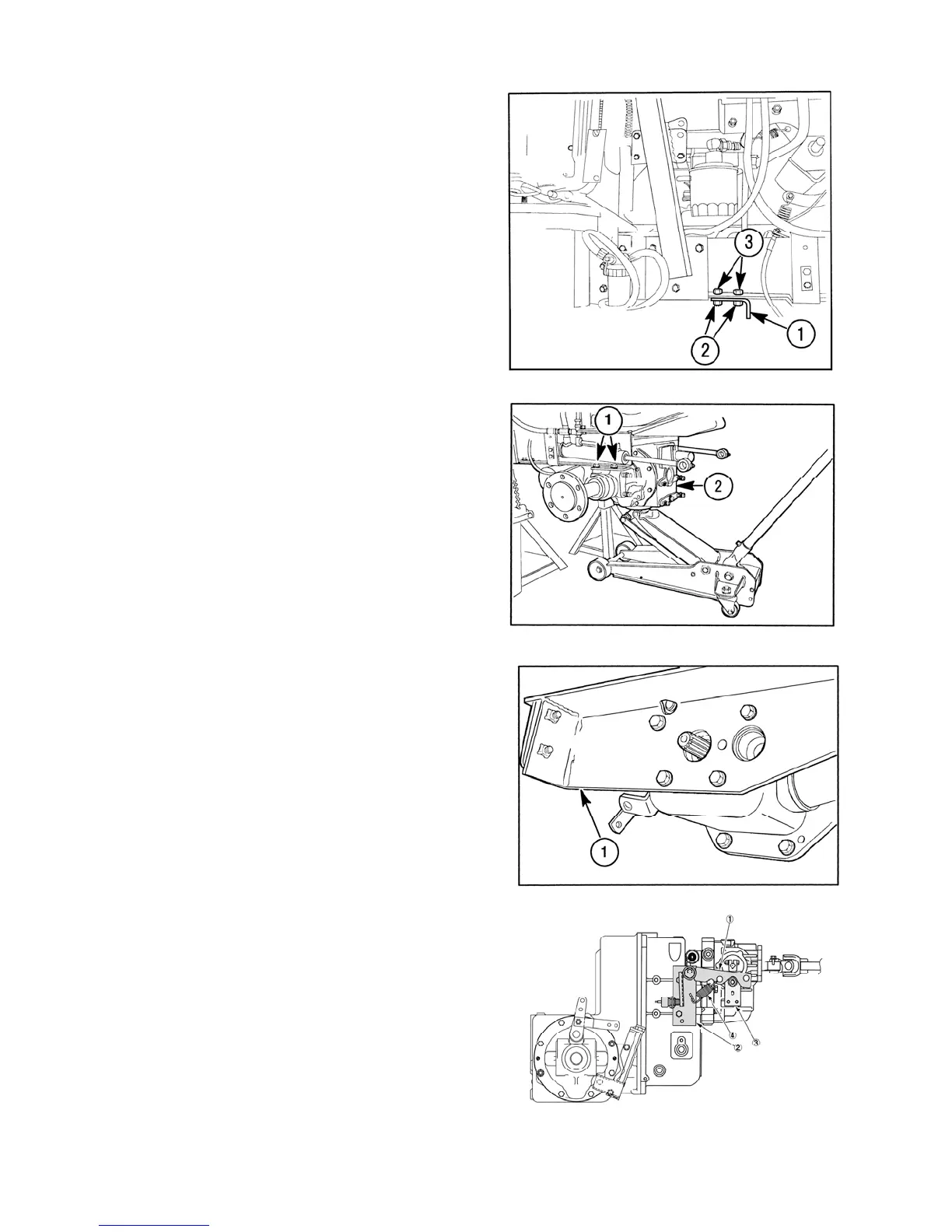

28. Hold the front flame, with the chain block.
29. Remove the rear frame ①, attaching bolts ②,
and nuts ③.
30. Remove the bolts ① , for attached front axle
housing.
31. Remove the front axle and transmission housing
assembly ②, from the main frame.
32. Remove the rear frame ① , from the rear
transmission housing.
33. Un hook the spring ④, remove the shift arm ①,
and shift guide ②, as a set from the transmission.
If necessary, remove the control lever ③, from
the HST unit.
321X
322X
323X
324X
