Shibaura CM284 - 2-1 Engine Removal

8
2-1 Engine Removal
1) If necessary, remove bolts and nuts and the bonnet.
2) Remove the muffler and stay from the engine.
3) Disconnect the wiring from the air cleaner clogging
sensor.
4) Disconnect the wiring from the water temperature
sensor and water temperature switch.
5) Remove the radiator hoses from the engine.
6) Disconnect the wiring from the alternator.
7) Disconnect the wiring from the starting motor.
8) Remove the bolt and ground wire from the cylinder
head.
9) Disconnect the fuel return hose from the fuel return
pipe.
10) Disconnect the wiring from the engine oil pressure
switch.
11) Disconnect the wiring from the glow plug connector.
12) Disconnect the wiring from the engine stop solenoid.
13) Disconnect the fuel pipe from the injection pump.
14) Remove the accelerator wire from the engine.
15) Disconnect the drain hose from the drain cock.
16) Disconnect the oil hoses from the hydraulic oil pump.
17) Remove the engine attaching nuts and hoist the
engine from the flame.

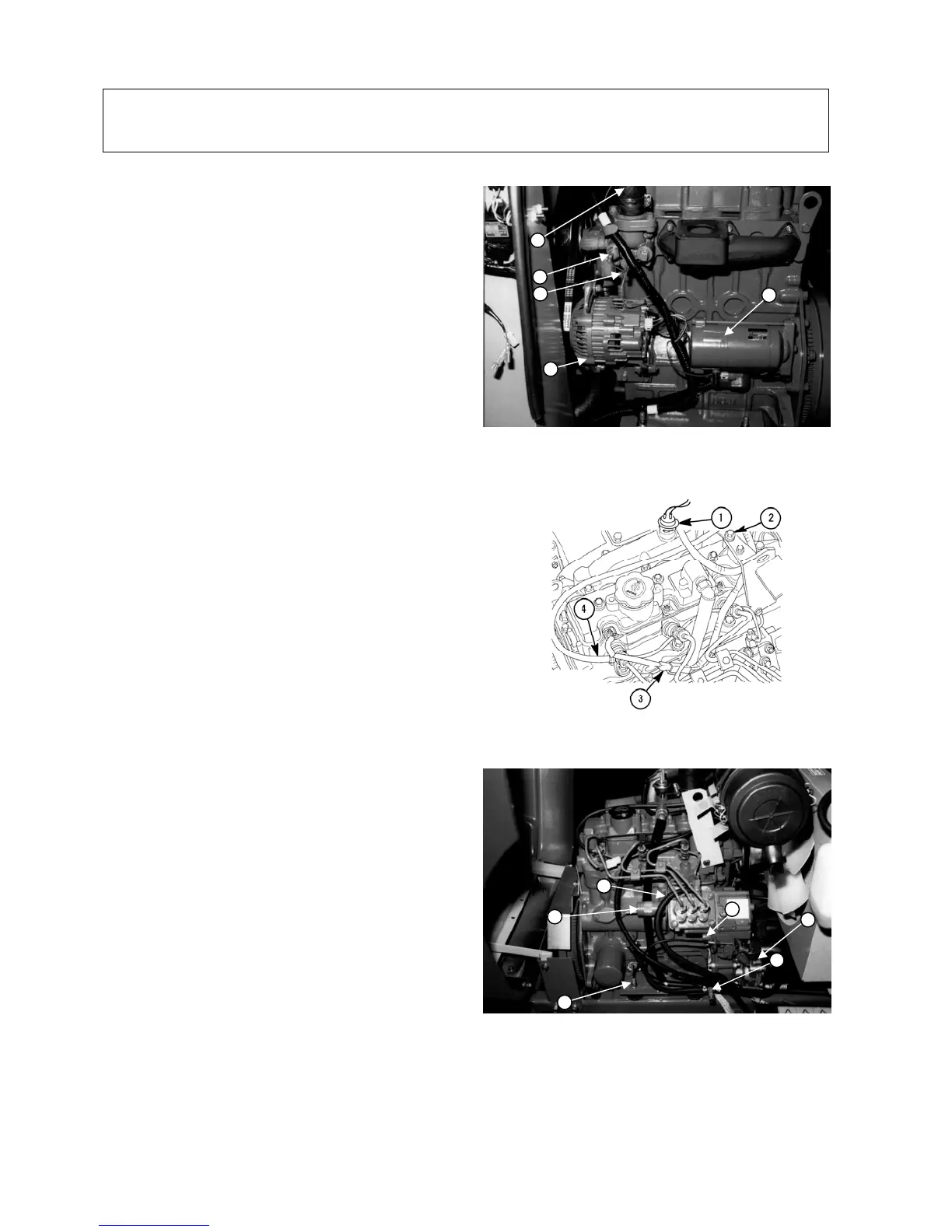

002X
① Water temperature switch ④ Alternator
② Water temperature sensor ⑤ Starting motor
③ Radiator hose
003X
① Air cleaner clogging sensor ③ Glow plug connector
② Ground wire ④ Fuel return hose
004X
① Engine stop solenoid ⑤ Hydraulic oil pump
② Accelerator wire ⑥ Engine attaching nut
③ Fuel hose
④ Drain cock
5
4
2
1
3
4
5
2
3
1
6
