1. DESCRIPTION AND OPERATION
The four -wheel drive rear axle is supported by an axle
pivot pin at the rear of the frame.
Range Selector Lever and Four-Wheel Drive (FWD)
Selector Lever are activated by the same lever.
The range selector lever is on the left side of the seat, can
be shifted when the HST foot pedal is in the Neutral
position to select, High range, Low range or Neutral.
● When the lever is located in the position of Range
Selector Lever, the tractor will run in Automatic
mode.
● When the lever is brought to the outer slot, the
tractor will run in Permanent FWD mode.
NOTE: When tractor is in Permanent FWD mode,
only low range is engaged.
The four-wheel drive output shaft (1) in the range gear box
is contained in a two way clutch assembly (4).
The two way clutch assembly (4) is installed on the front
wheel drive pinion (2). During operation, placing the lever
into the Automatic four wheel drive position will
automatically give the operator full four-wheel drive when
the front wheels lose traction.
Since the rear wheel drive axle gears rotate slightly faster
than the range gears in the transmission, the four-wheel
drive output shaft (1) is free to rotate within the two way
clutch (4).
When one of the front drive wheels starts to spin, the
two-way clutch applies and sends power to the rear wheels
thus giving the operator automatic four-wheel drive.

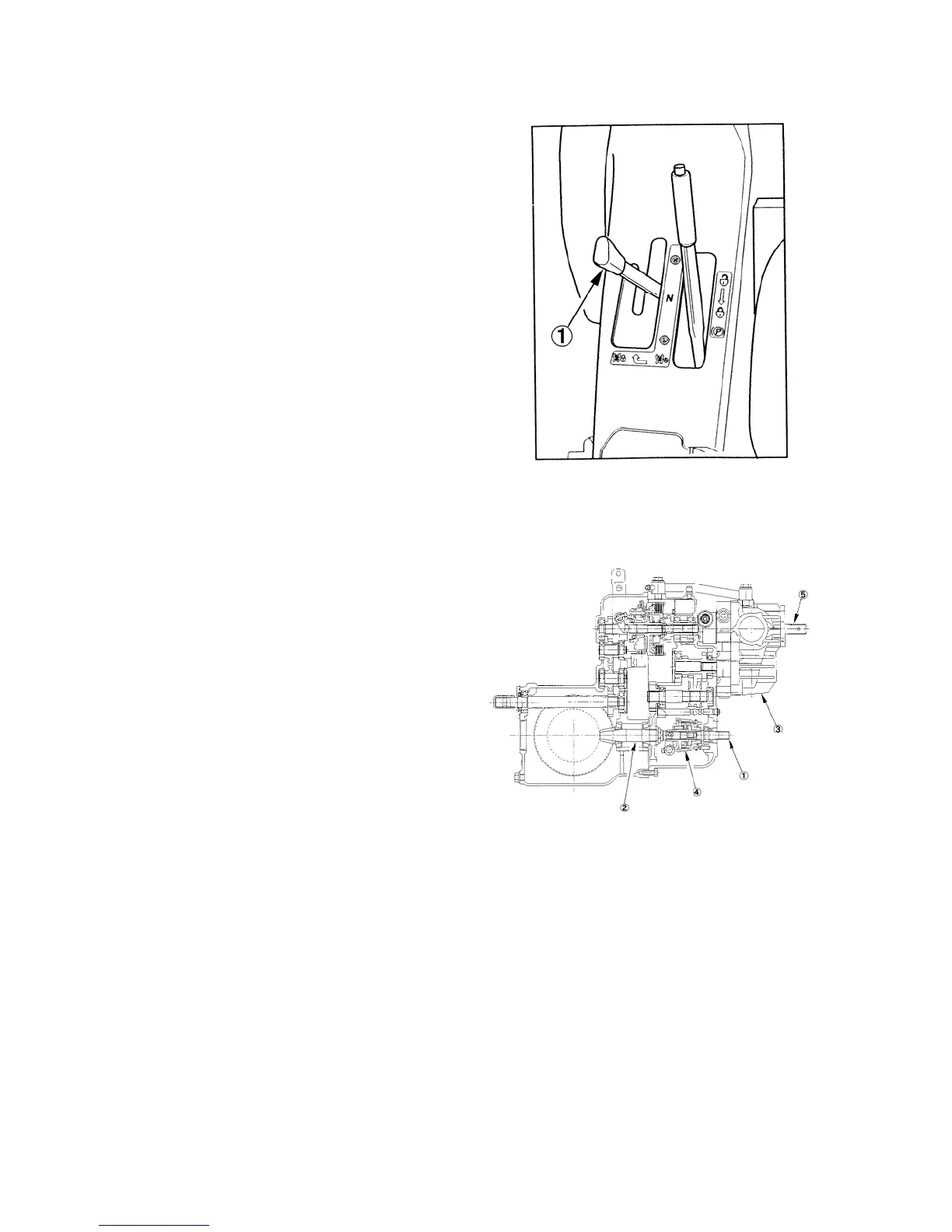

600X
1. Ranger Selector Lever
601X
1. Four-Wheel Drive 3. HST Unit
Out put Shaft 4. Two-Way Clutch Assembly
2. Drive Pinion Shaft 5. Input Shaft
