2. Starting Motor (For Engine Model J843:CM284) (No. 185086551 1.7kW)
1) Straucture
This starter features a reduction mechanism of planetary gearing system and permanent magnets for magnetic field
induction.
Its reduction mechanism comprises internal gear, three planetary gears, gear shafts (with overrunning clutch fitted by
spline) and armature shaft gear.
The structure is different from that of direct drive type, but the electrical wiring is the same between two types.
The magnetic field is produced by six permanent magnets. The magnets are mounted in the yoke and positioned according
to polarity. They are permanently attached to the yoke and are not removable.

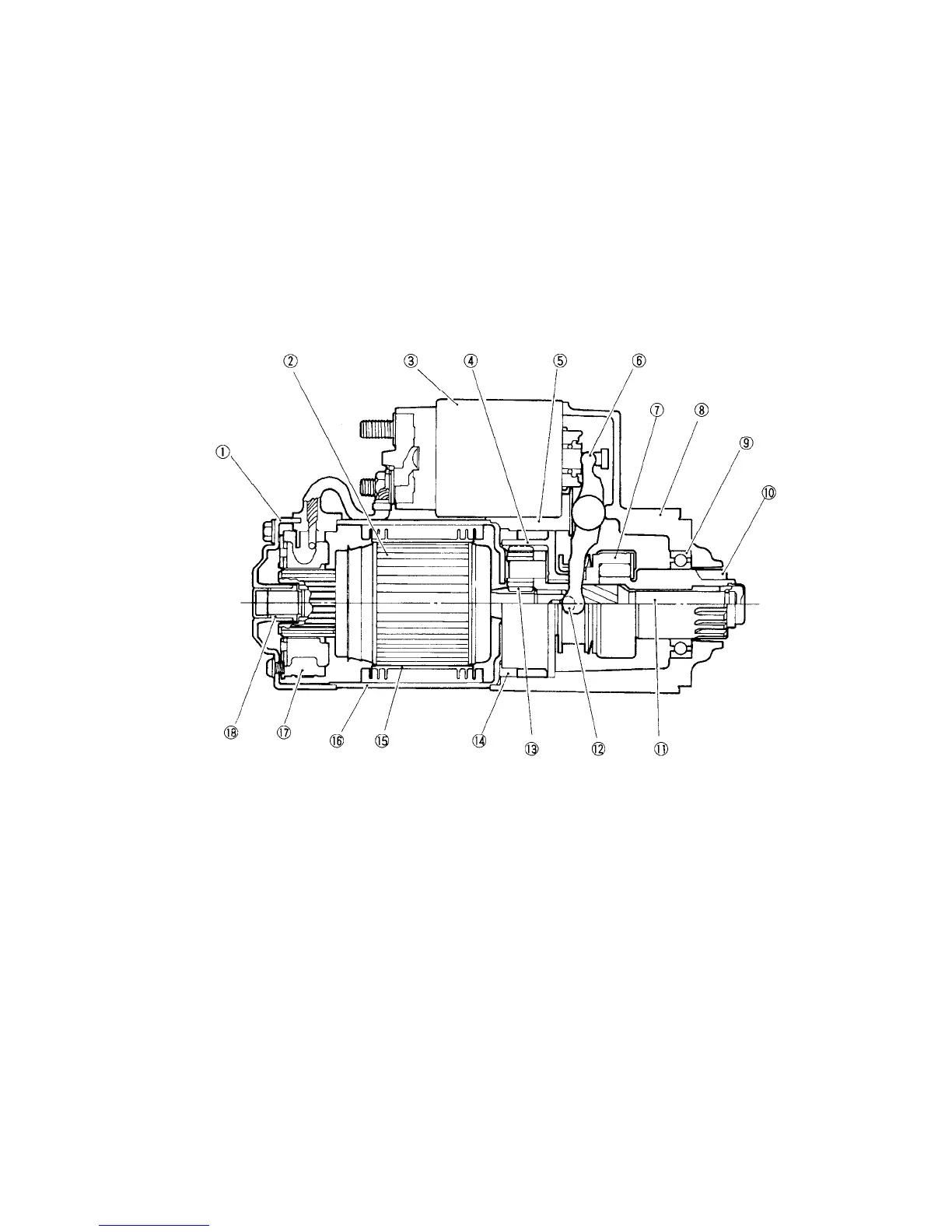

① Rear Bracket ⑦ Overrunning Clutch ⑬ Planetary Gears
② Armature ⑧ Front Bracket ⑭ Rubber Cover
③ Switch ⑨ Bearing ⑮ Magnets
④ Internal Gear ⑩ Pinion ⑯ Yoke
⑤ Lever Packing ⑪ Gear Shaft ⑰ Brushes
⑥ Lever ⑫ Ball ⑱ Sleeve Bearing
102X
