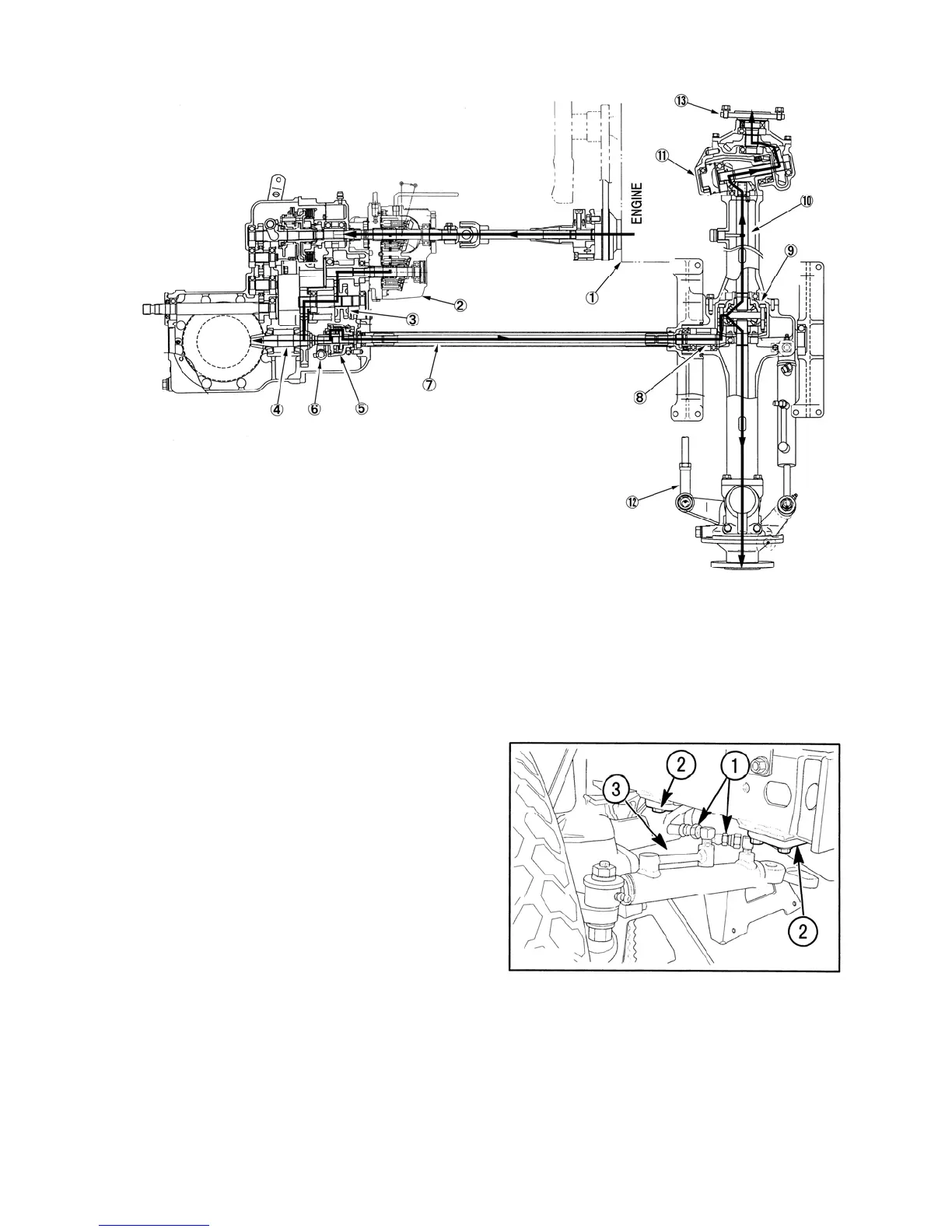

1. Engine 5. Two-Way Clutch 8. Drive Pinion 11. Reduction Case
2. HST Unit 6. Permanent FWD 9. Differential Gear 12. Tie Rod
3. Range Slide Gear Shifter Fork Assembly 13. Wheel Shaft
4. Drive Pinion 7. Rear Wheel Drive Shaft 10. Drive shaft
2. REAR AXLE REMOVAL
1. Disconnect the power steering oil pipes from the
power steering cylinder.
2. Place the safety stands under the main frame.
3. Remove the rear axle bearing holders from the
frame ,and remove the rear axle assembly.
4. If necessary ,remove the pipe, drive shaft and
coupling from the transmission.
603X
1. Oil Pipe 3. Rear Axle
2. Bearing Holder Assembly
3. INSTALLATION
Installation generally follows removal procedure in reverse, however the following must be observed:
1. Replace cracked or damaged hoses.
