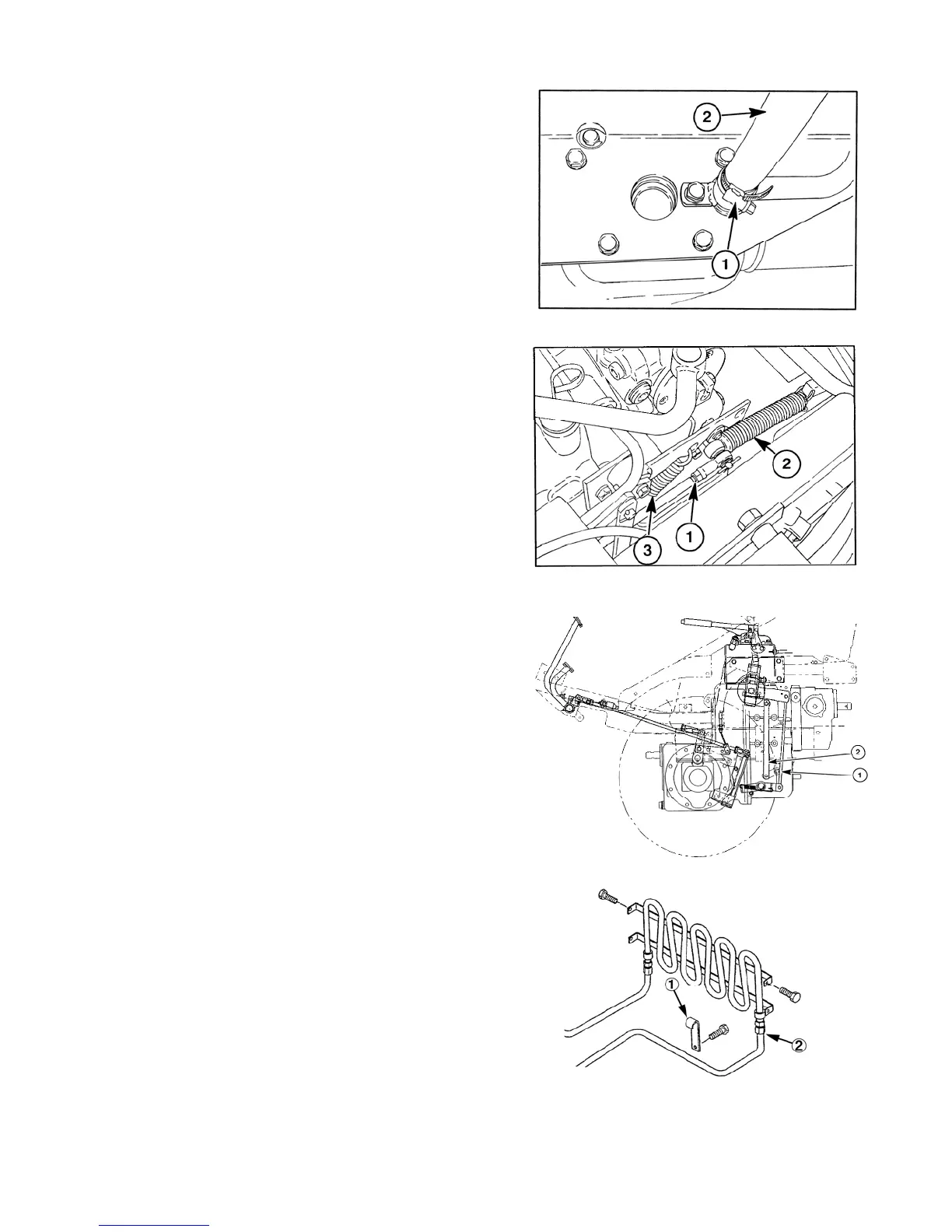

21. Untighten the hose band ①, and disconnect the
suction hose ②, for the hydraulic oil pump.
22. Remove the split pin, washer and disconnect the
HST speed control rood ① , from the HST
control lever.
23. Remove the U-nut, and remove the damper ②,
from the HST control lever.
24. Unhook the spring ③, from under the HST speed
control lever.
25. Remove the splits pin, washer and disconnect the
four-wheel drive control rod ①, and range gear
control rod ②, from the change lever.
26. Remove the banjo bolt and clamp ①, for the oil
cooler return pipe, and disconnect the return pipe
②, from the oil cooler.
27. Use the two wrenches, and disconnect the feed
pipe ⑥, for the HST on the top of the HST unit,
Fig. 315X.
