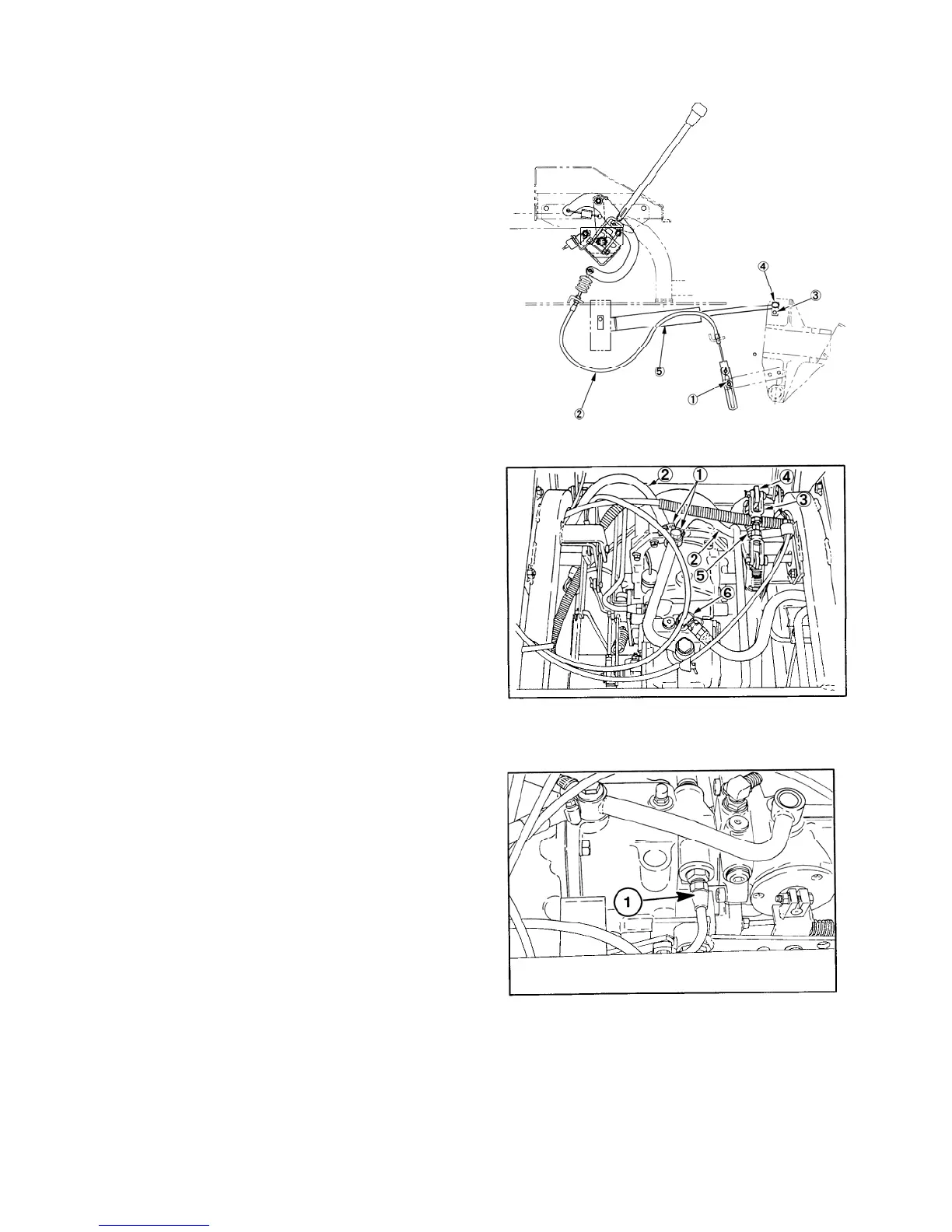

15. Remove the split pin ① , and washer and
disconnect the lift arm feed back (PTO safety
stop) wire ②, from the R.H. lift arm.
16. Remove the bolt ③, and pin ④, and separate the
hydraulic cylinder ⑤, from the lift arm.
17. Untighten the hose bands ①, and disconnect the
return hose ② , from the vent hose on the
transmission housing.
18. Disconnect the fork joint ③, by remove the split
pin and pin for the PTO clutch control lever ④.
19. Remove the spring ⑤, from the PTO clutch
control lever ④.
20 Disconnect the oil pipe ①, from HST charge
pump to power steering control valve.
