94

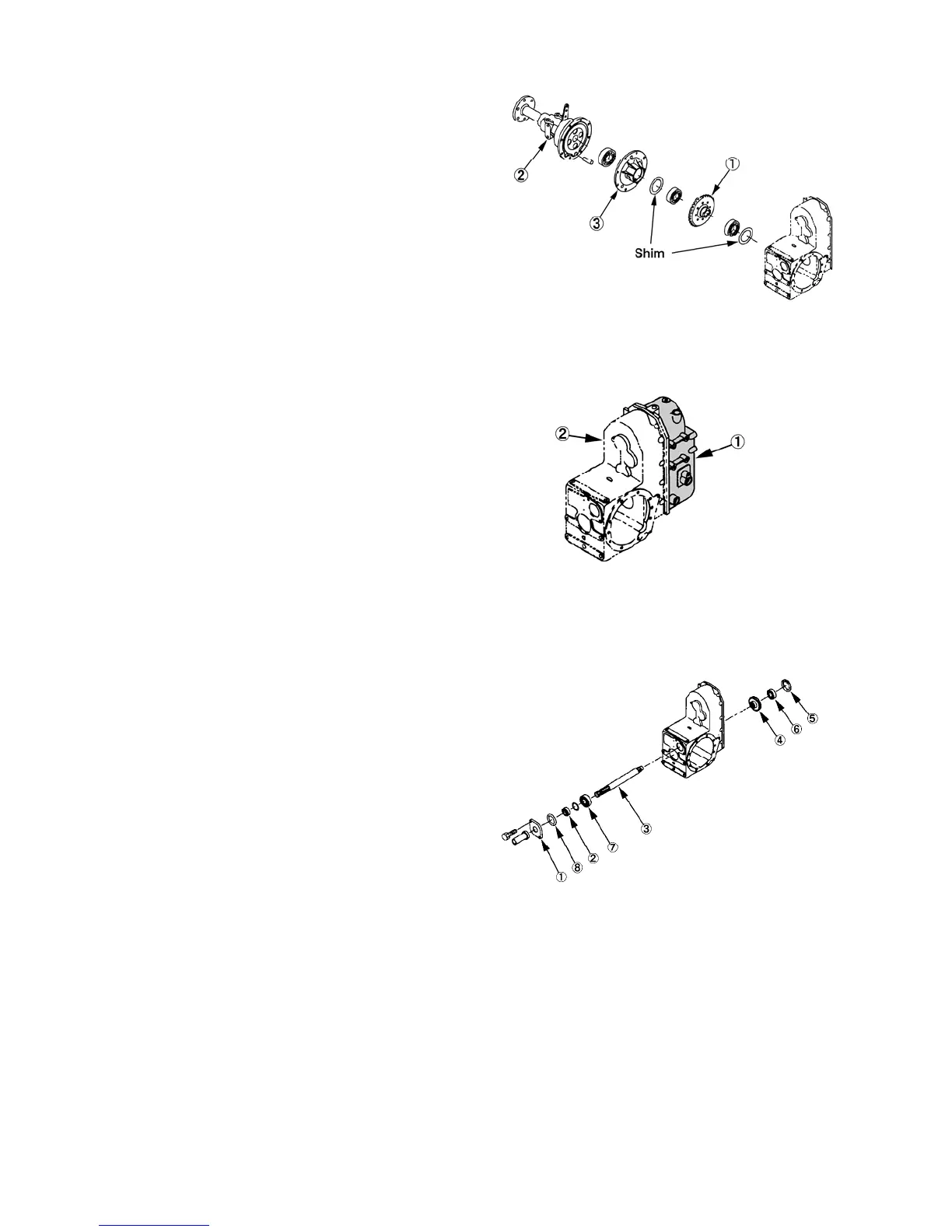

4. Remove the L.H. wheel shaft housing ②, the bearing
holder ③, and differential assembly ①.
NOTE: Note the total amount of shims and
thickness used between differential bearing
and bearing holder.
5. Separate the rear transmission housing ①, from the
front transmission housing ②.
6. Remove the seal cover ①, with oil seal ②, and
O-Ring ⑧, from the transmission housing.
7. Drive out the PTO shaft ③, and remove the fixed gear
④, snap ring ⑤, bearings ⑥ and ⑦, from the
transmission housing.
328X
329X
330X
