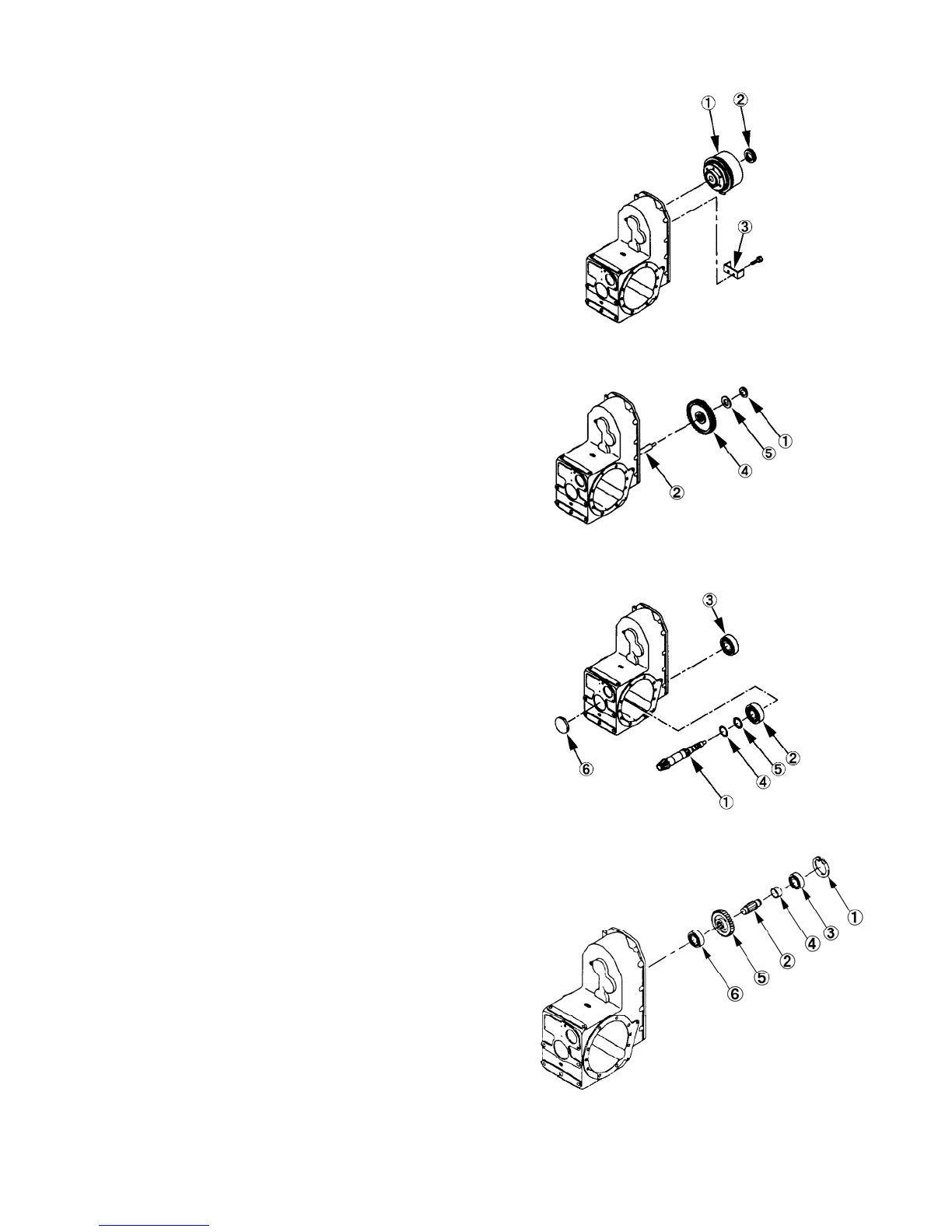

8. Remove the PTO clutch assembly ①, and thrust
bearing ②.
9. If necessary, remove the plate ③, from the
transmission housing.
10. Untighten the lock nut ①, on the drive pinion shaft
②.
11. Remove the washer ⑤, and fixed gear ④, from on
the drive pinion shaft ②.
12. Pull out the drive pinion shaft ①, thrust washer ④,
and shims ⑤ , to the front of the transmission
housing.
13. Remove the bearings ② and ③ from the housing.
14. If necessary, drive out the seal cover ⑥, for inspect
the ring gear backlash.
15. Remove the snap ring ①, and pull out the counter
shaft ②, with bearing ③, and collar 4.
16. Take out the fixed gear ⑤, and bearing, ⑥, from the
housing.
NOTE: Put the identity make on the fixed gear by
paint.
