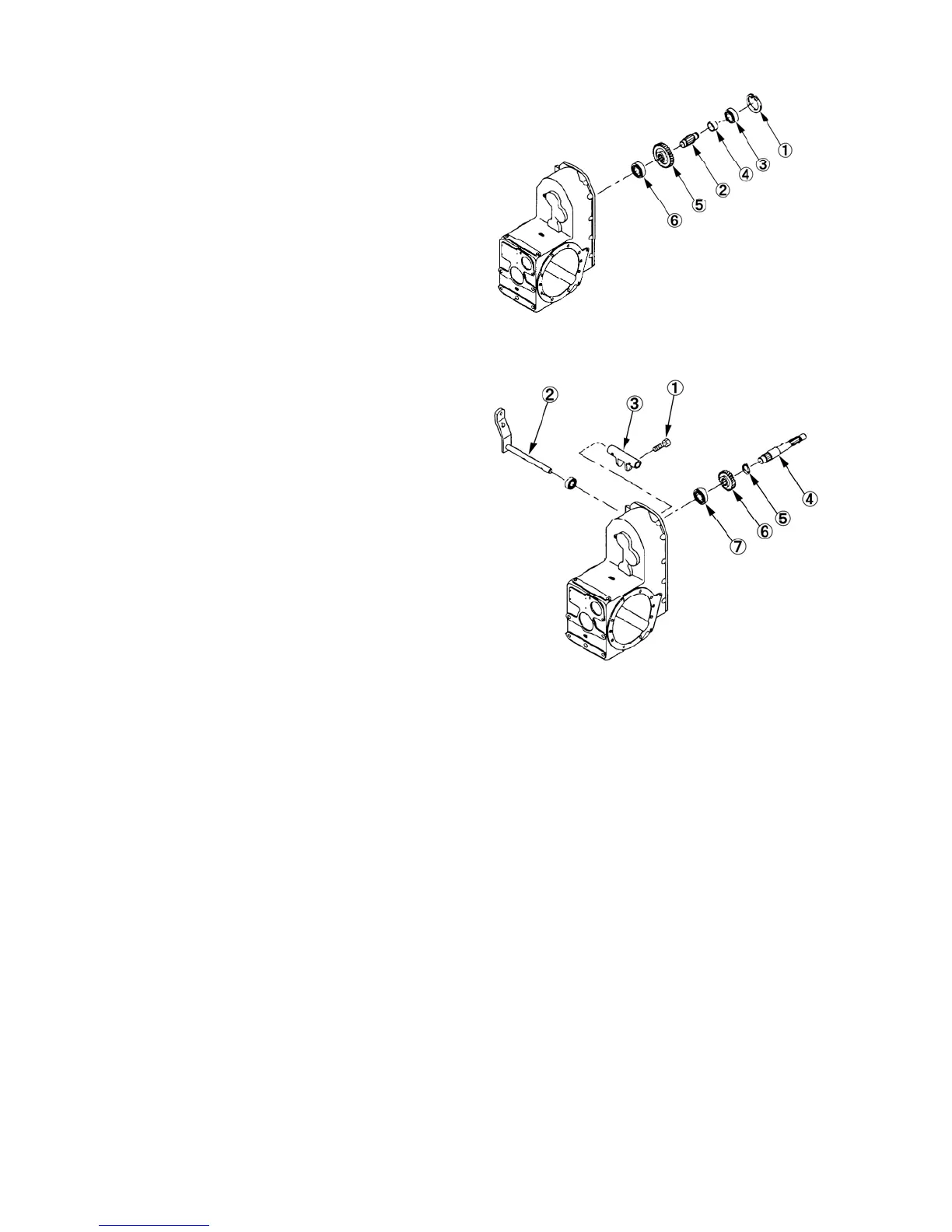

17. Remove the snap ring ①, and pull out the counter
shaft ②, with bearing ③.
18. Take out the collar ④, fixed gear ⑤, and bearing ⑥,
from the housing.
19. Heat the two bolts ①, by burner and remove them,
and pull out the PTO clutch shaft ②.
20. Take out the clutch fork ③, from the housing.
21. Remove the drive shaft ④, with snap ring ⑤.
22. Take out the fixed gear ⑥, and bearing ⑦.
335X
336X
(2) Inspection
1. Wash all components with a suitable cleaning solvent
and air dry.
2. Inspect all bearings for excess wear, score marks,
discoloration from overheating, or other damage.
Rotate the bearings by hand and check for roughness
while slowly rotating the inner and outer races.
3. Lubricate all bearings with a clean lubricant before
installation.
4. Inspect the transmission case for cracks, worn bearing
bores or other damage.
5. Inspect all for excess wear, chipped teeth, or other
damage.
6. Inspect the shift forks for excess wear, bends or other
damage.
