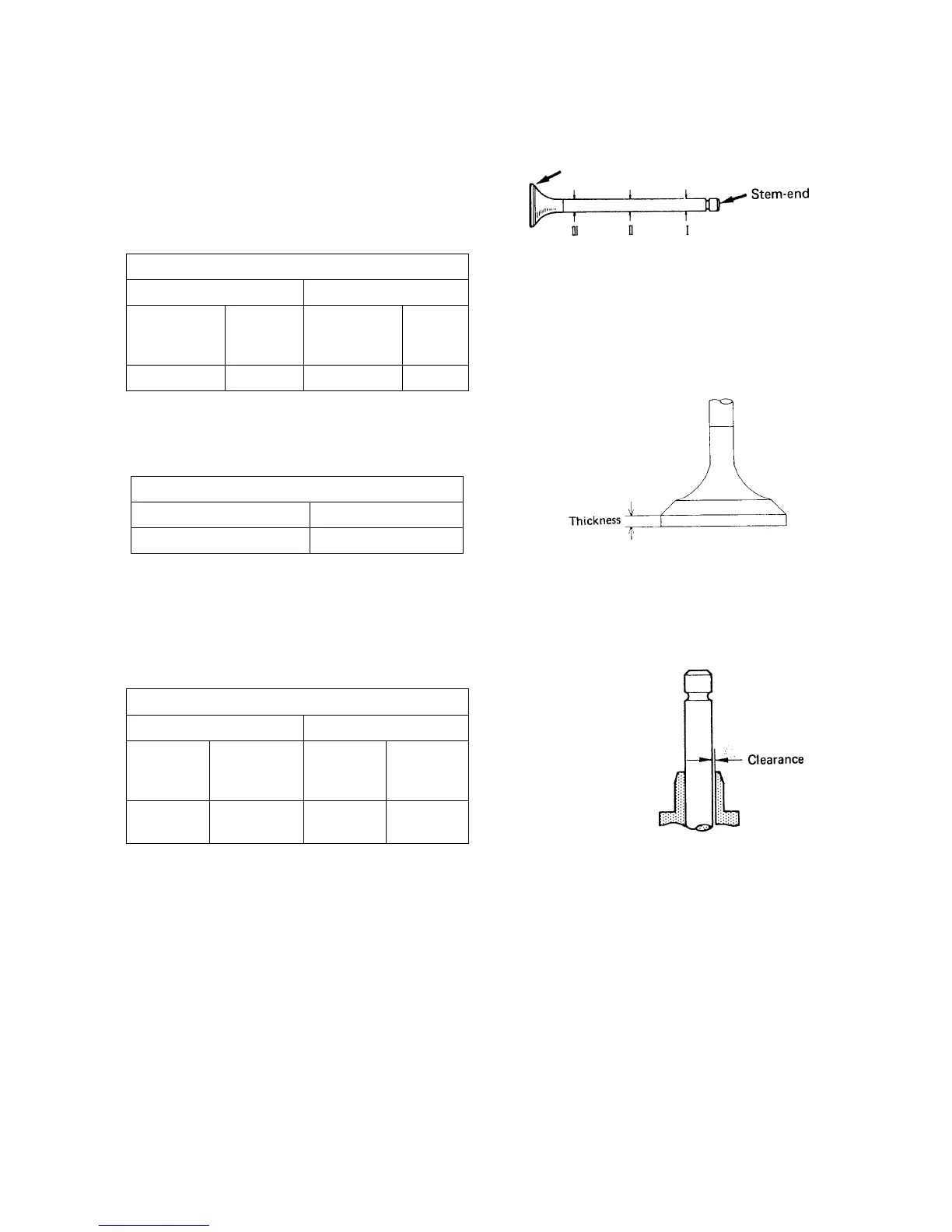

(2) Intake and exhaust valves and valve guide
a. Check the head and stem of each valve and
replace if burnout, wear or deformation is
remarkable.
b. Measure the outside diameter at the position I, II,
and III on the valve stem with a micrometer and
replace if the result is less than the service limit.
Valve stem diameter (mm)
Intake valve Exhaust valve
Standard
assembling
value
Service
limit
Standard
assembling
value
Service
limit
6.955 – 6.97 6.89 6.94 – 6.95 6.84
c. Replace a valve if its head thickness is less than
service limit.
Valve head thickness (mm)
Standard assembling value Service limit
0.775 – 1.075 0.5
d. Replace the valve if the clearance between the
stem and guide exceeds the service limit.
Clearance between valve stem and valve guide (mm)
Intake valve Exhaust valve
Standard
assembling
value
Service limit
Standard
assembling
value
Service
limit
0.03 – 0.06 0.2
0.045 –
0.075
0.25
016X
017X
018X
