2.2 Assembly Drawing

2.2.1 Assembly Drawing (SAL-1/2HP-UGP)

Remarks: Please refer to material list 2.2.2 for specific explanation of the Arabic numbers

in parts drawing.

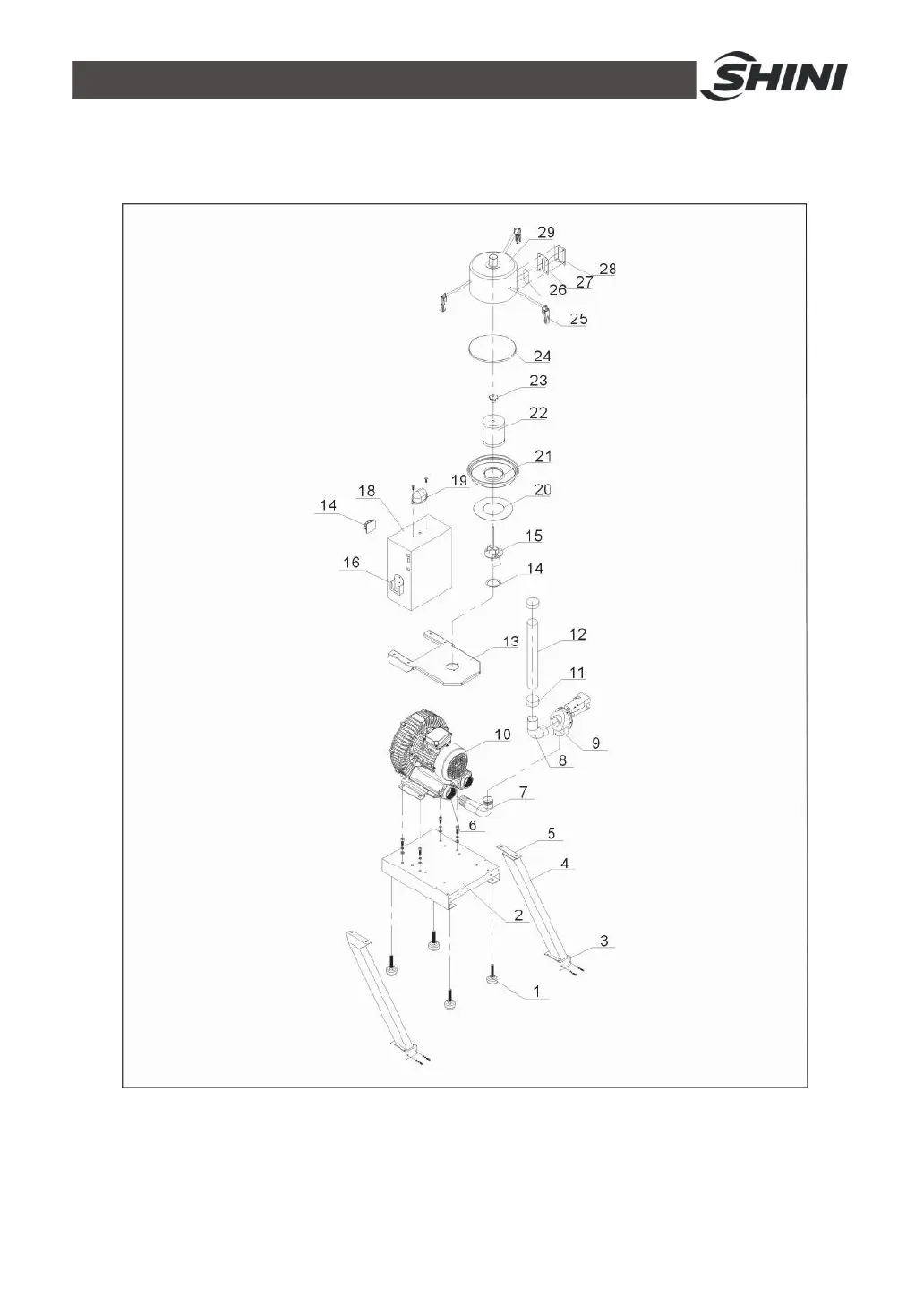

Picture 2-2：Assembly Drawing (SAL-1/2HP-UGP)
