24(61)

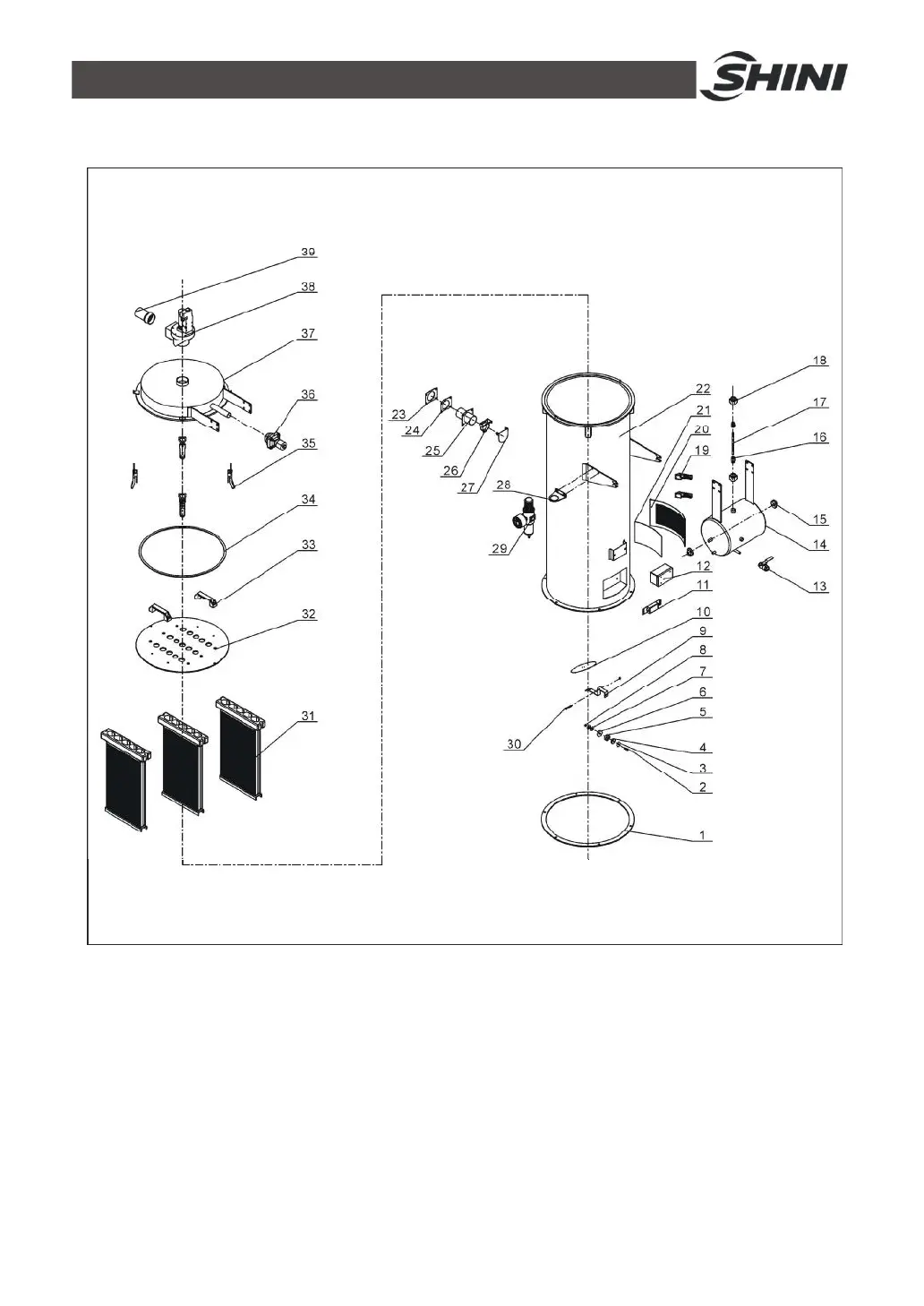

2.2.7 Assembly Drawing of Storage Hopper with Plate Filter
Remarks: Please refer to material list 2.2.8 for specific explanation of the Arabic numbers in
parts drawing.
Picture 2-5Assembly Drawing of Storage Hopper with Plate Filter
