20(61)

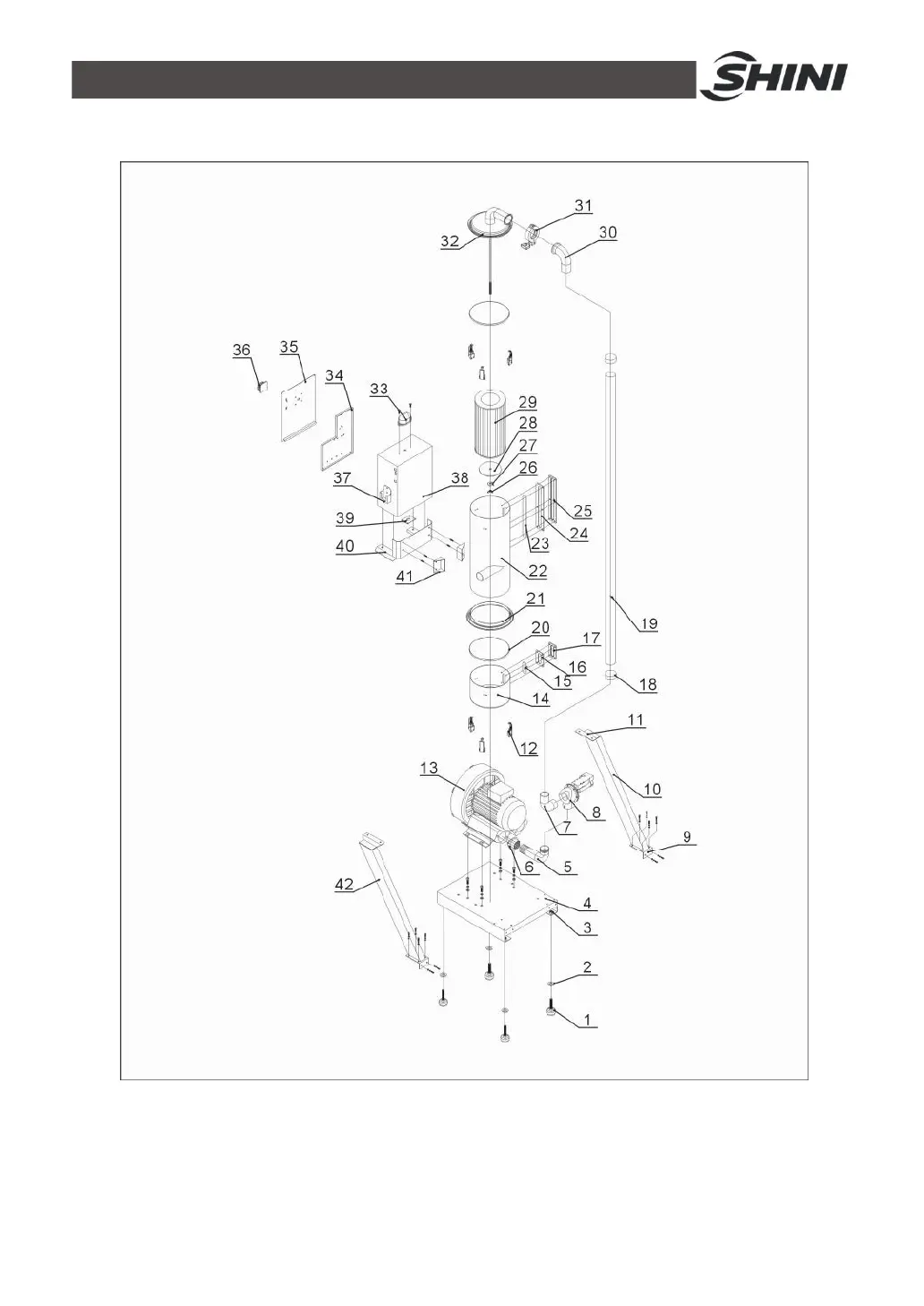

2.2.3 Assembly Drawing (SAL-3.5HP/5HP-UGP)

Remarks: Please refer to material list 2.2.4 for specific explanation of the Arabic numbers

in parts drawing.

Picture 2-3：Assembly Drawing (SAL-3.5HP/5HP-UGP)
