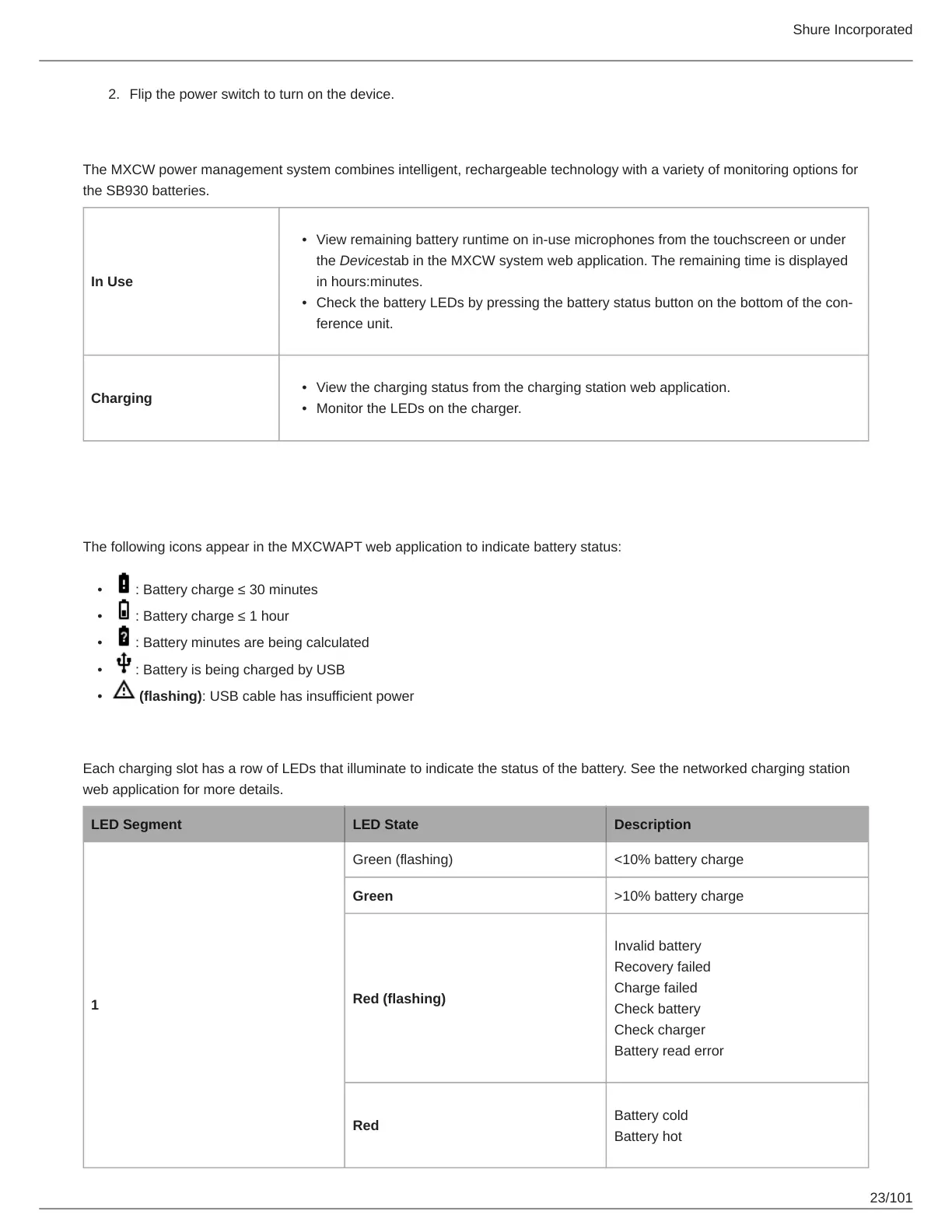

2.
•
•
•
•
•
•
•
•
•
Flip the power switch to turn on the device.
Monitoring Battery Charge
The MXCW power management system combines intelligent, rechargeable technology with a variety of monitoring options for
the SB930 batteries.
In Use
View remaining battery runtime on in-use microphones from the touchscreen or under
the Devicestab in the MXCW system web application. The remaining time is displayed
in hours:minutes.
Check the battery LEDs by pressing the battery status button on the bottom of the con
ference unit.
Charging
View the charging status from the charging station web application.
Monitor the LEDs on the charger.
Icons for Charging Batteries
The following icons appear in the MXCWAPT web application to indicate battery status:
: Battery charge ≤ 30 minutes
: Battery charge ≤ 1 hour
: Battery minutes are being calculated
: Battery is being charged by USB
(flashing): USB cable has insufficient power
Charge Status LEDs
Each charging slot has a row of LEDs that illuminate to indicate the status of the battery. See the networked charging station
web application for more details.
LED Segment LED State Description
1
Green (flashing) <10% battery charge
Green >10% battery charge
Red (flashing)
Invalid battery
Recovery failed
Charge failed
Check battery
Check charger
Battery read error
Red
Battery cold
Battery hot
