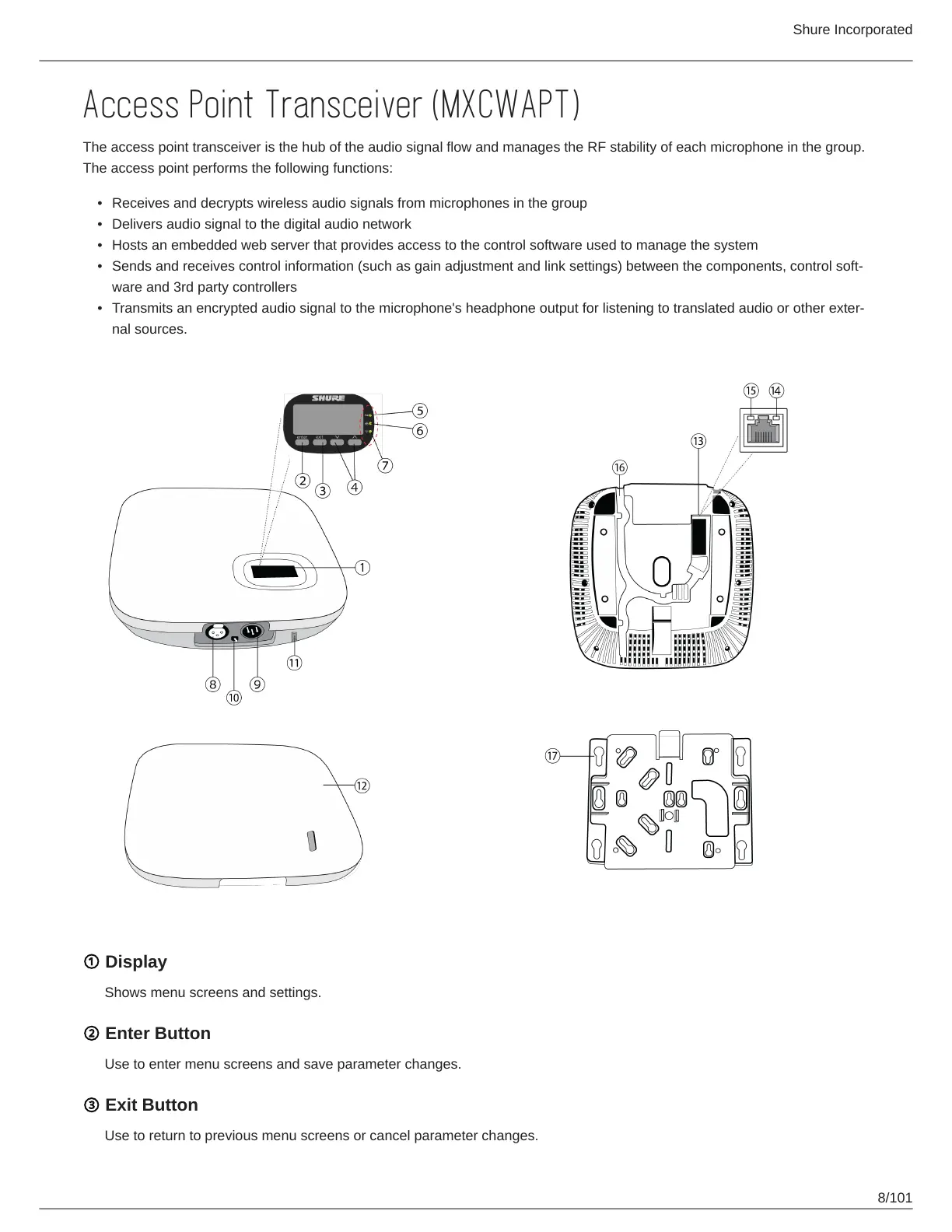

Access Point Transceiver (MXCWAPT)
The access point transceiver is the hub of the audio signal flow and manages the RF stability of each microphone in the group.
The access point performs the following functions:
Receives and decrypts wireless audio signals from microphones in the group
Delivers audio signal to the digital audio network
Hosts an embedded web server that provides access to the control software used to manage the system
Sends and receives control information (such as gain adjustment and link settings) between the components, control soft
ware and 3rd party controllers
Transmits an encrypted audio signal to the microphone's headphone output for listening to translated audio or other exter
nal sources.
① Display
Shows menu screens and settings.
② Enter Button
Use to enter menu screens and save parameter changes.
③ Exit Button
Use to return to previous menu screens or cancel parameter changes.
