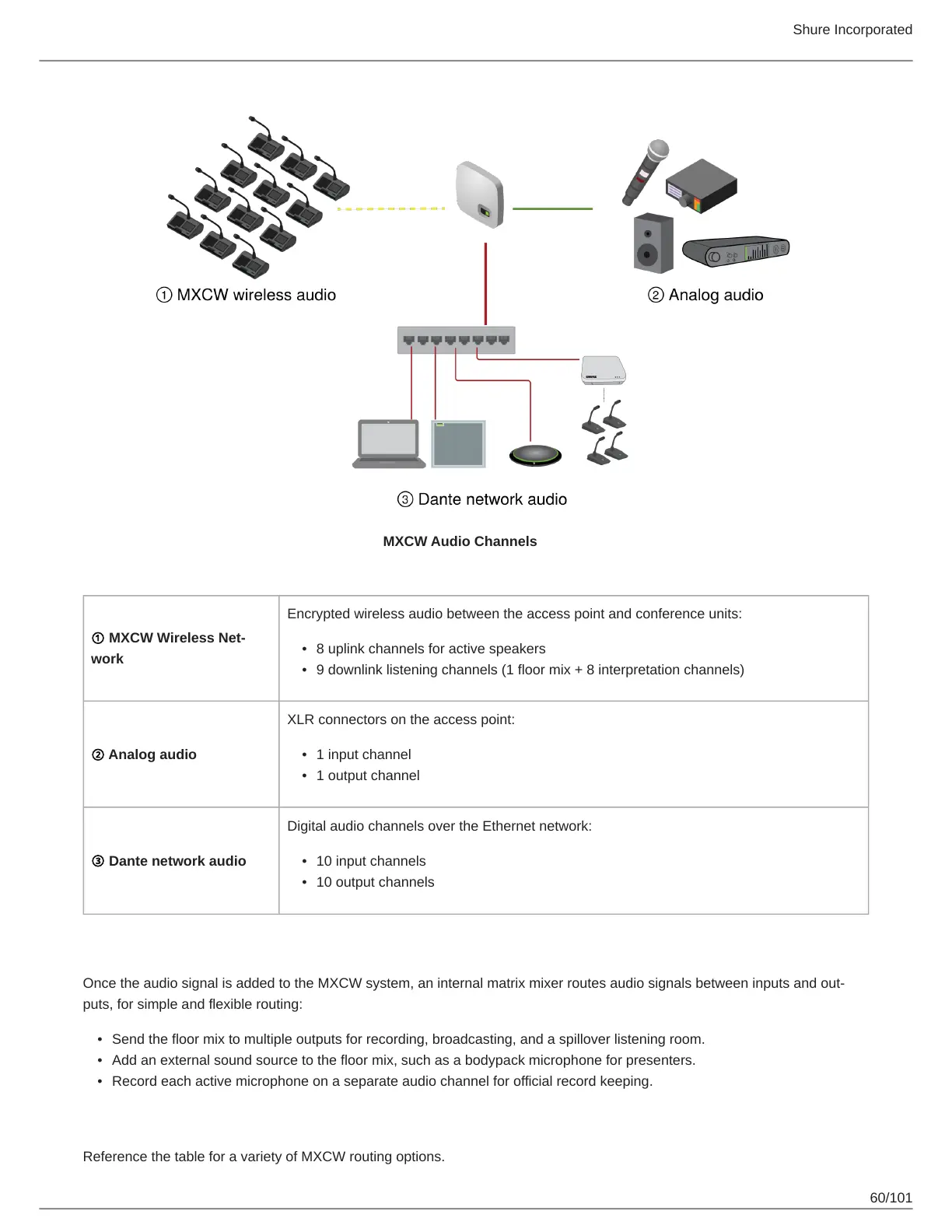

MXCW Audio Channels
① MXCW Wireless Net
work
Encrypted wireless audio between the access point and conference units:
8 uplink channels for active speakers
9 downlink listening channels (1 floor mix + 8 interpretation channels)
② Analog audio
XLR connectors on the access point:
1 input channel
1 output channel
③ Dante network audio
Digital audio channels over the Ethernet network:
10 input channels
10 output channels
Once the audio signal is added to the MXCW system, an internal matrix mixer routes audio signals between inputs and out
puts, for simple and flexible routing:
Send the floor mix to multiple outputs for recording, broadcasting, and a spillover listening room.
Add an external sound source to the floor mix, such as a bodypack microphone for presenters.
Record each active microphone on a separate audio channel for official record keeping.
MXCW Routing Descriptions
Reference the table for a variety of MXCW routing options.
