Mounting on Wood Paneling

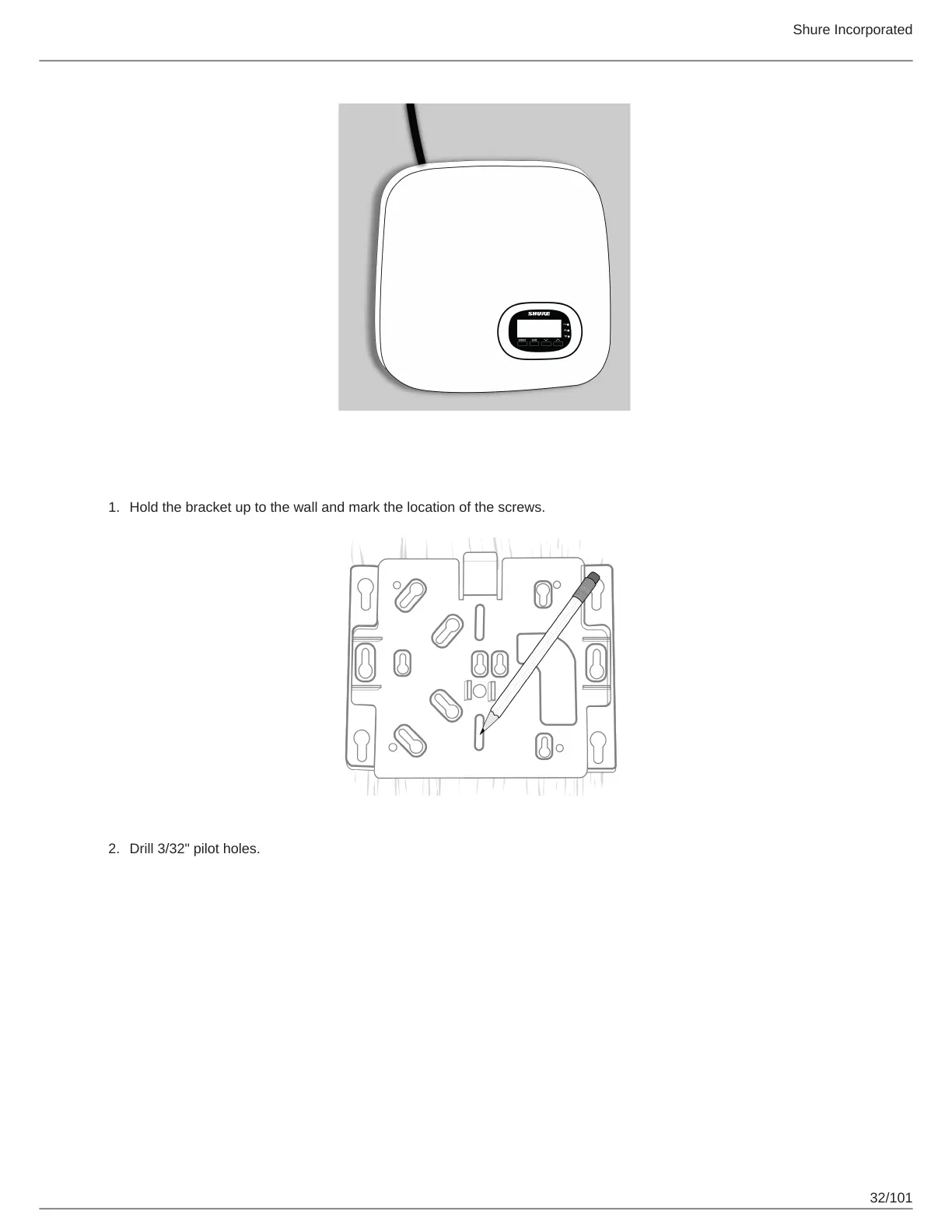

Hold the bracket up to the wall and mark the location of the screws.

Drill 3/32" pilot holes.
