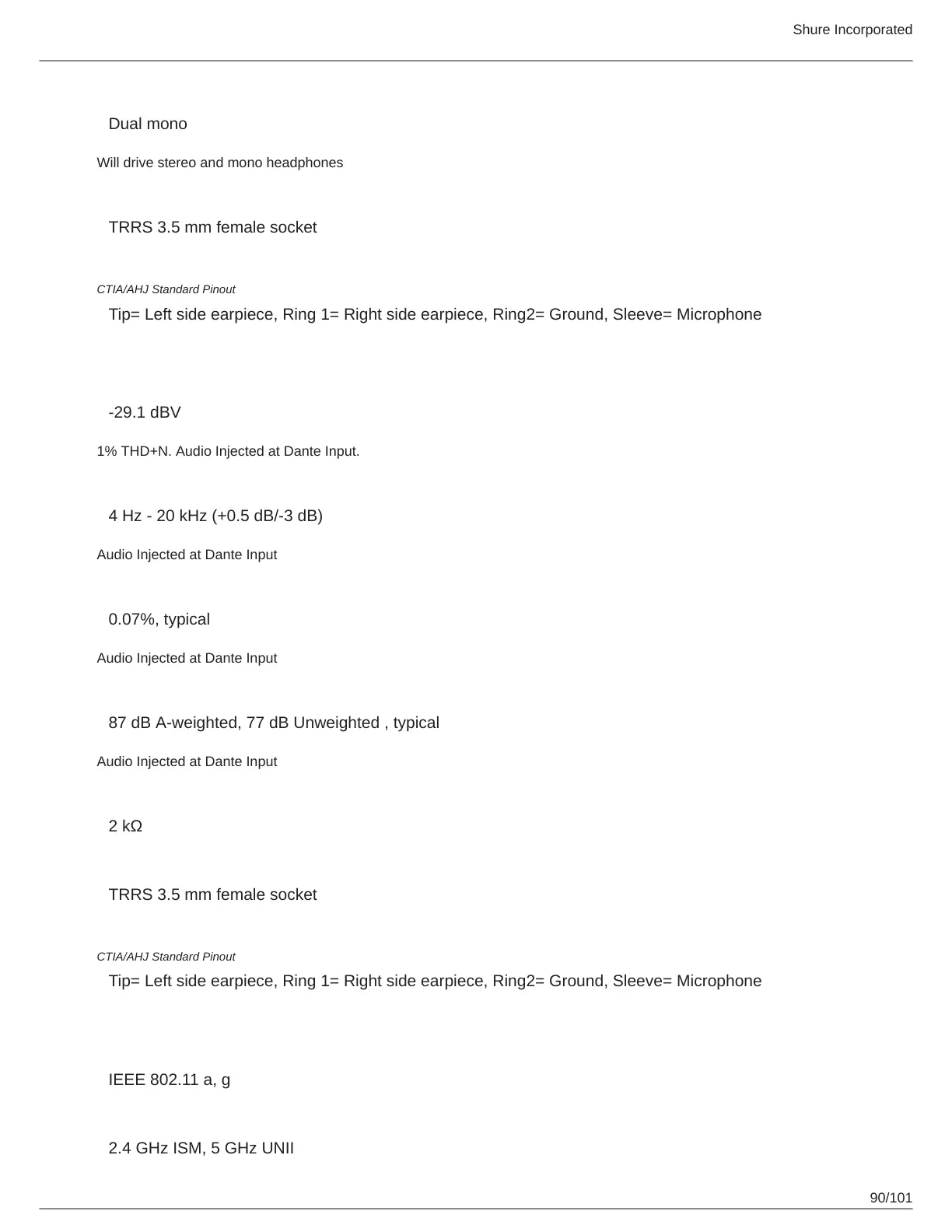

Configuration
Dual mono
Will drive stereo and mono headphones
Type
TRRS 3.5 mm female socket
Pin Assignments
CTIA/AHJ Standard Pinout
Tip= Left side earpiece, Ring 1= Right side earpiece, Ring2= Ground, Sleeve= Microphone
Remote Caller Output
Maximum Output Level
-29.1 dBV
1% THD+N. Audio Injected at Dante Input.
Frequency Response
4 Hz - 20 kHz (+0.5 dB/-3 dB)
Audio Injected at Dante Input
Total Harmonic Distortion
0.07%, typical
Audio Injected at Dante Input
Dynamic Range
87 dB A-weighted, 77 dB Unweighted , typical
Audio Injected at Dante Input
Output Impedance
2 kΩ
Type
TRRS 3.5 mm female socket
Pin Assignments
CTIA/AHJ Standard Pinout
Tip= Left side earpiece, Ring 1= Right side earpiece, Ring2= Ground, Sleeve= Microphone
RF
WLAN Standard
IEEE 802.11 a, g
Frequency Bands
2.4 GHz ISM, 5 GHz UNII
