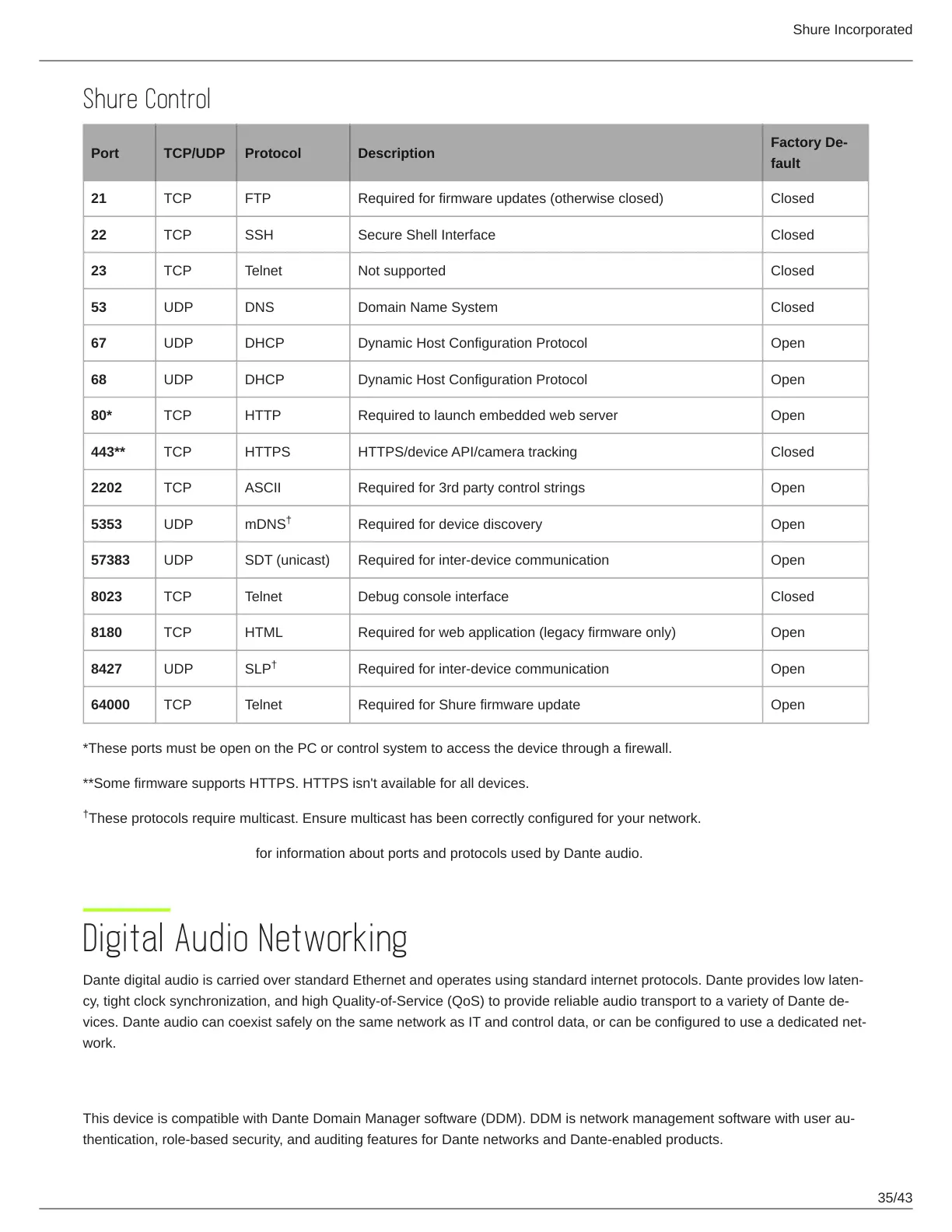

Shure Control
Port TCP/UDP Protocol Description
Factory De-
fault
21 TCP FTP Required for firmware updates (otherwise closed) Closed
22 TCP SSH Secure Shell Interface Closed
23 TCP Telnet Not supported Closed
53 UDP DNS Domain Name System Closed
67 UDP DHCP Dynamic Host Configuration Protocol Open
68 UDP DHCP Dynamic Host Configuration Protocol Open
80* TCP HTTP Required to launch embedded web server Open
443** TCP HTTPS HTTPS/device API/camera tracking Closed
2202 TCP ASCII Required for 3rd party control strings Open
5353 UDP mDNS Required for device discovery Open
57383 UDP SDT (unicast) Required for inter-device communication Open
8023 TCP Telnet Debug console interface Closed
8180 TCP HTML Required for web application (legacy firmware only) Open
8427 UDP SLP Required for inter-device communication Open
64000 TCP Telnet Required for Shure firmware update Open
*These ports must be open on the PC or control system to access the device through a firewall.
**Some firmware supports HTTPS. HTTPS isn't available for all devices.
These protocols require multicast. Ensure multicast has been correctly configured for your network.
Refer to Audinate's website for information about ports and protocols used by Dante audio.
Digital Audio Networking
Dante digital audio is carried over standard Ethernet and operates using standard internet protocols. Dante provides low laten
cy, tight clock synchronization, and high QualityofService (QoS) to provide reliable audio transport to a variety of Dante de
vices. Dante audio can coexist safely on the same network as IT and control data, or can be configured to use a dedicated net
work.
Compatibility with Dante Domain Manager
This device is compatible with Dante Domain Manager software (DDM). DDM is network management software with user au
thentication, role-based security, and auditing features for Dante networks and Dante-enabled products.
†
†
†
