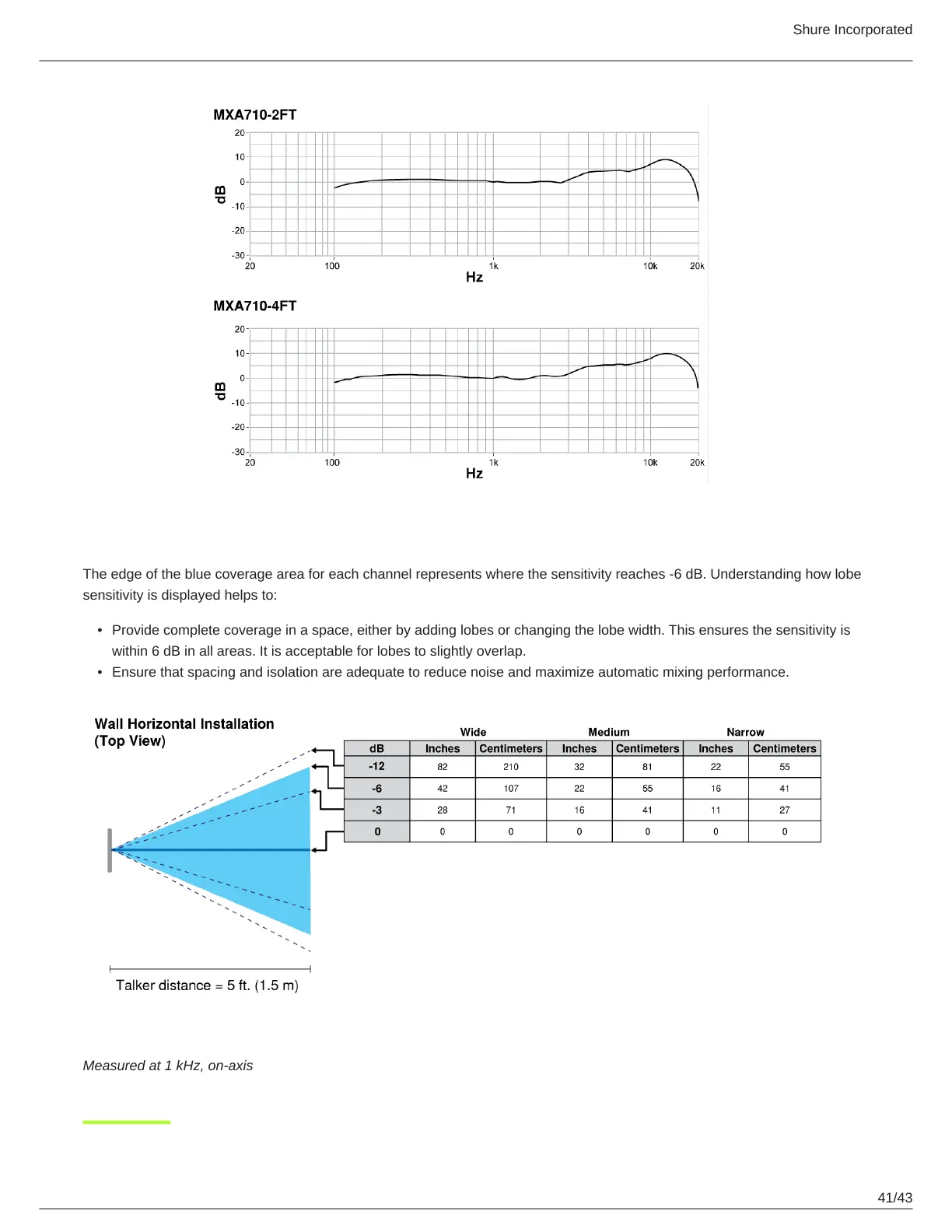

Lobe Sensitivity
The edge of the blue coverage area for each channel represents where the sensitivity reaches -6 dB. Understanding how lobe
sensitivity is displayed helps to:
Provide complete coverage in a space, either by adding lobes or changing the lobe width. This ensures the sensitivity is
within 6 dB in all areas. It is acceptable for lobes to slightly overlap.
Ensure that spacing and isolation are adequate to reduce noise and maximize automatic mixing performance.
Measured at 1 kHz, on-axis
