SICK C4-RD User Manual

Protective field height in mm Weight in g
1)
s S
ender r Receiver
350 320 322
400 365 367
450 409 411
500 449 451
550 496 498
600 540 542
750 669 671
900 800 802
1050 932 934
1200 1065 1067
1350 1194 1196
1500 1329 1331
1)
Tolerance: ± 50 g.

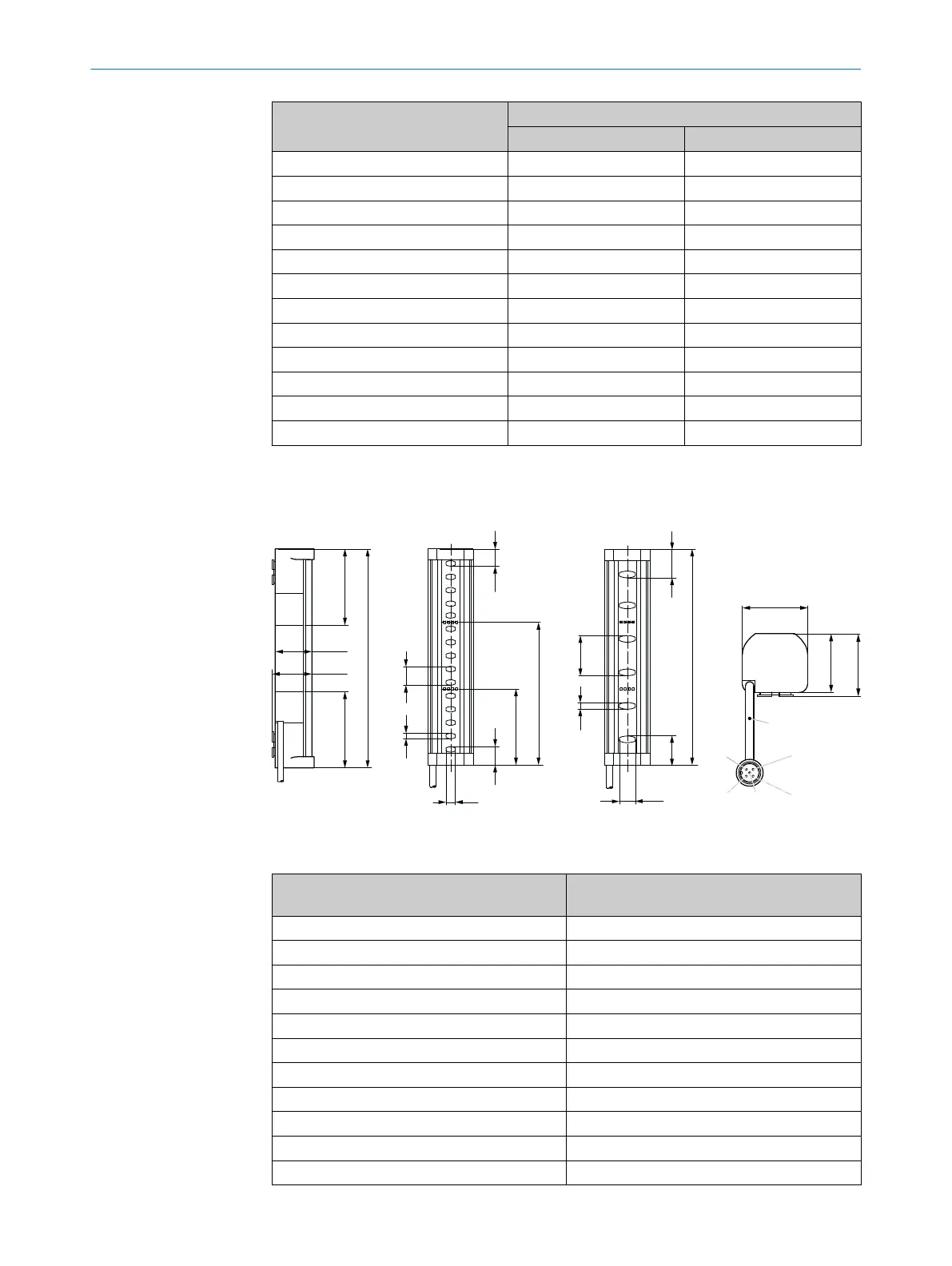

12.6 Dimensional drawings
5
30
4
14
56,8
L
56,8
56,8
L
29,5
31,5
7
12
30,7
32,8
34
L=150
106,8
1
4
2
5
3
<14
<22
<14
<22
Figure 32: Dimensional drawing of sender and receiver
Table 19: Dimensions based on the protective field height, sender and receiver
Protective field height, nominal in mm Protective field height, effective = dimension L
in mm
1)
150 163
200 213
250 263
300 313
350 363
400 413
450 463
500 513
550 563
600 613
750 763
TECHNICAL DATA 12
8025644/19Z2/2021-03-09 | SICK O P E R A T I N G I N S T R U C T I O N S | C4-RD
65
Subject to change without notice
