SICK C4-RD User Manual

± 15°

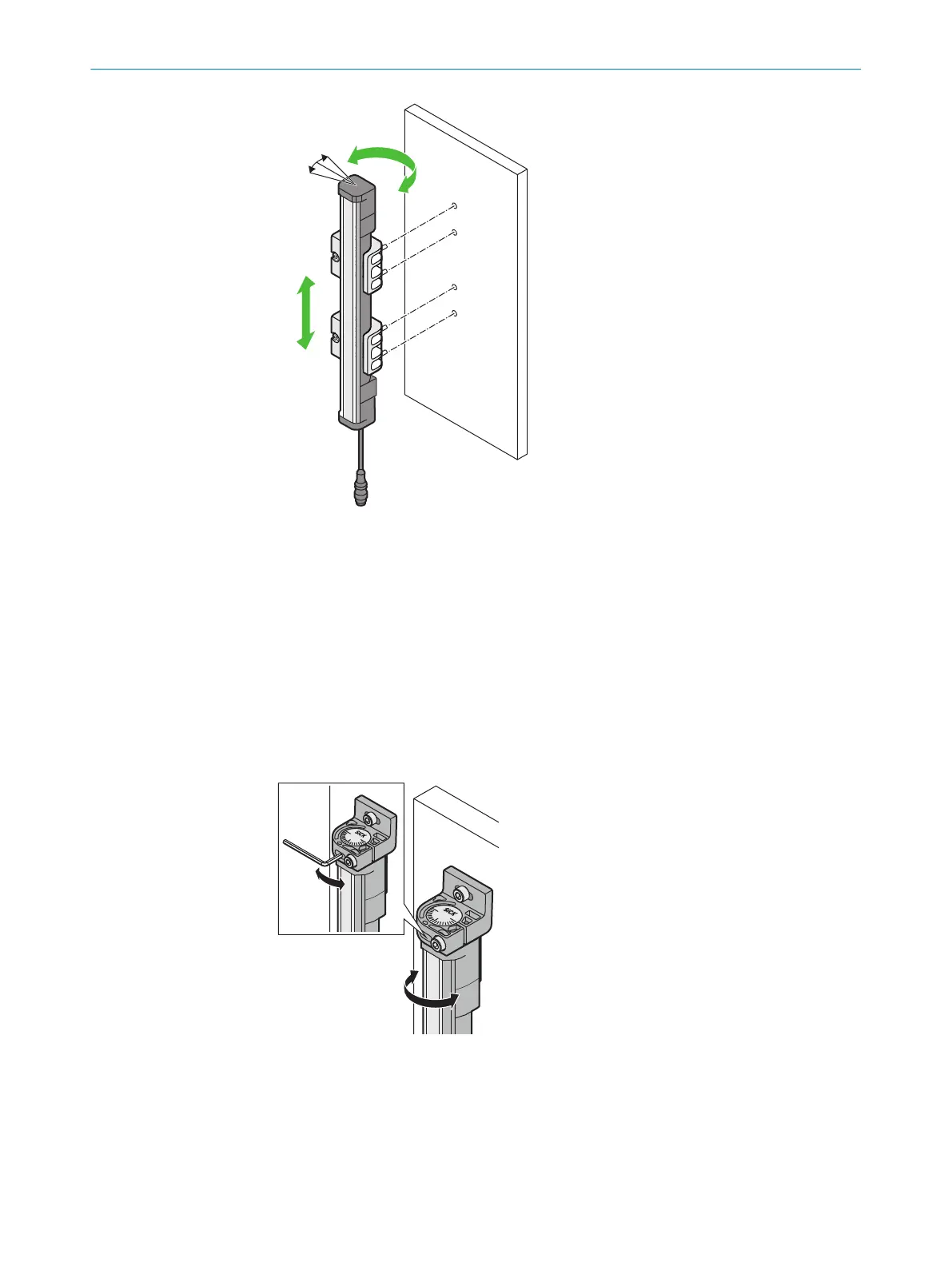

Figure 30: Compact FlexFix bracket: Rotate
7.4.5 Alignment with the swivel mount bracket
Prerequisites
•
T
he sender and receiver have been mounted using a swivel mount bracket
Alignment with the swivel mount bracket
T
he swivel mount bracket offers you the following adjustment options for aligning the
sender and receiver to each other:
•
Turning (± 270° or ± 9°)
+/-270°
+/-9°
Figure 31: Swivel mount bracket: Rotate
7 COMMISSIONING
52
O P E R A T I N G I N S T R U C T I O N S | C4-RD 8025644/19Z2/2021-03-09 | SICK
Subject to change without notice
