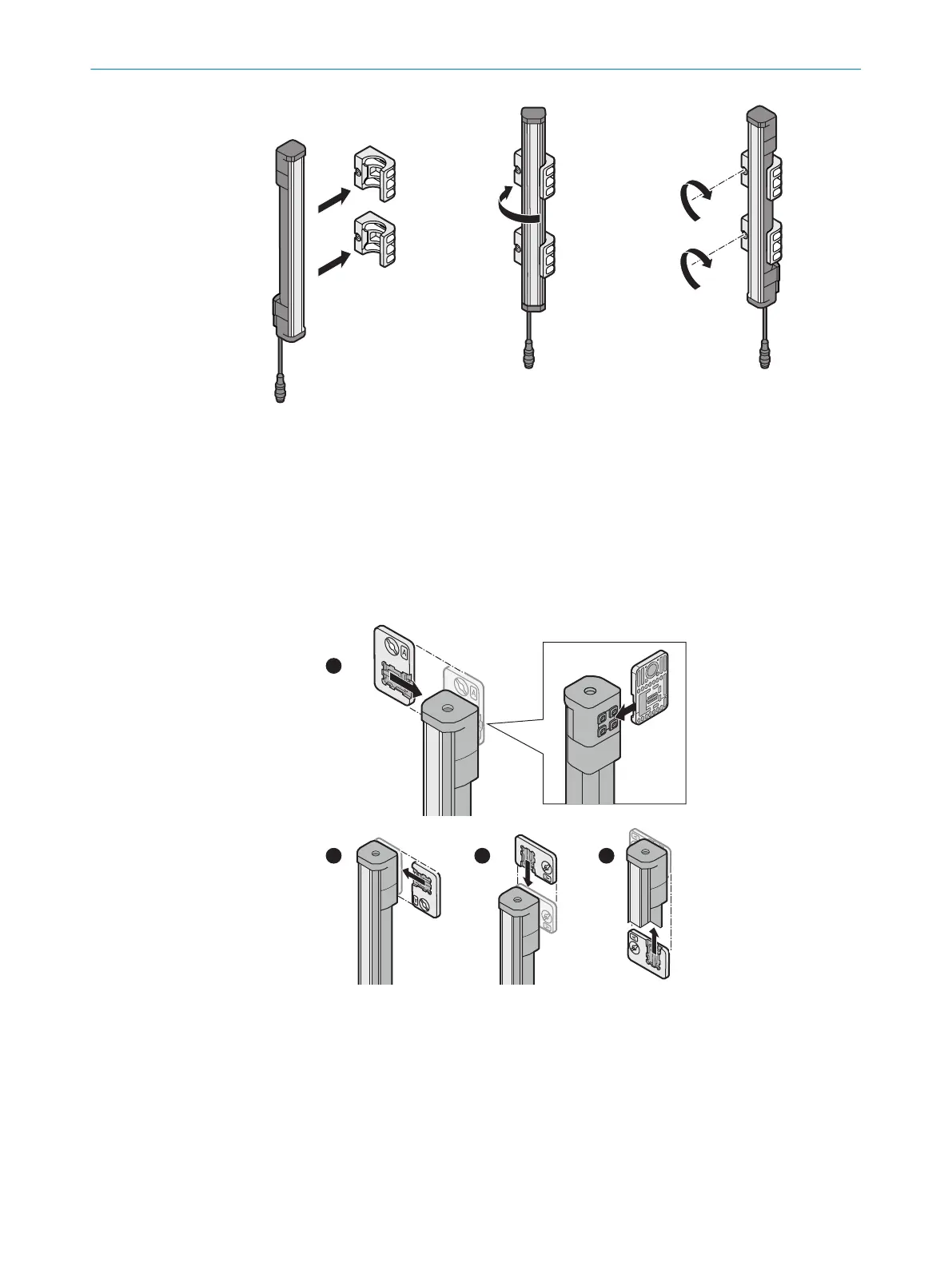

Figure 24: Insert the safety light curtain in the Compact FlexFix brackets
5.3.4 Mounting the flat mount bracket
Overview
T
he sender and receiver are each mounted using 2 flat mount brackets.
Approach
1.
S
lide the bracket onto the end cap of the device. (!)
!
CLICK
a
b
c
d
The bracket can be aligned horizontally or vertically. (options a - d)
A clicking sound can be heard when the bracket is firmly seated on the end cap of
t
he device.
MOUNTING 5
8025644/19Z2/2021-03-09 | SICK O P E R A T I N G I N S T R U C T I O N S | C4-RD
39
Subject to change without notice
