SICK C4-RD User Manual

Disassembly
Usin

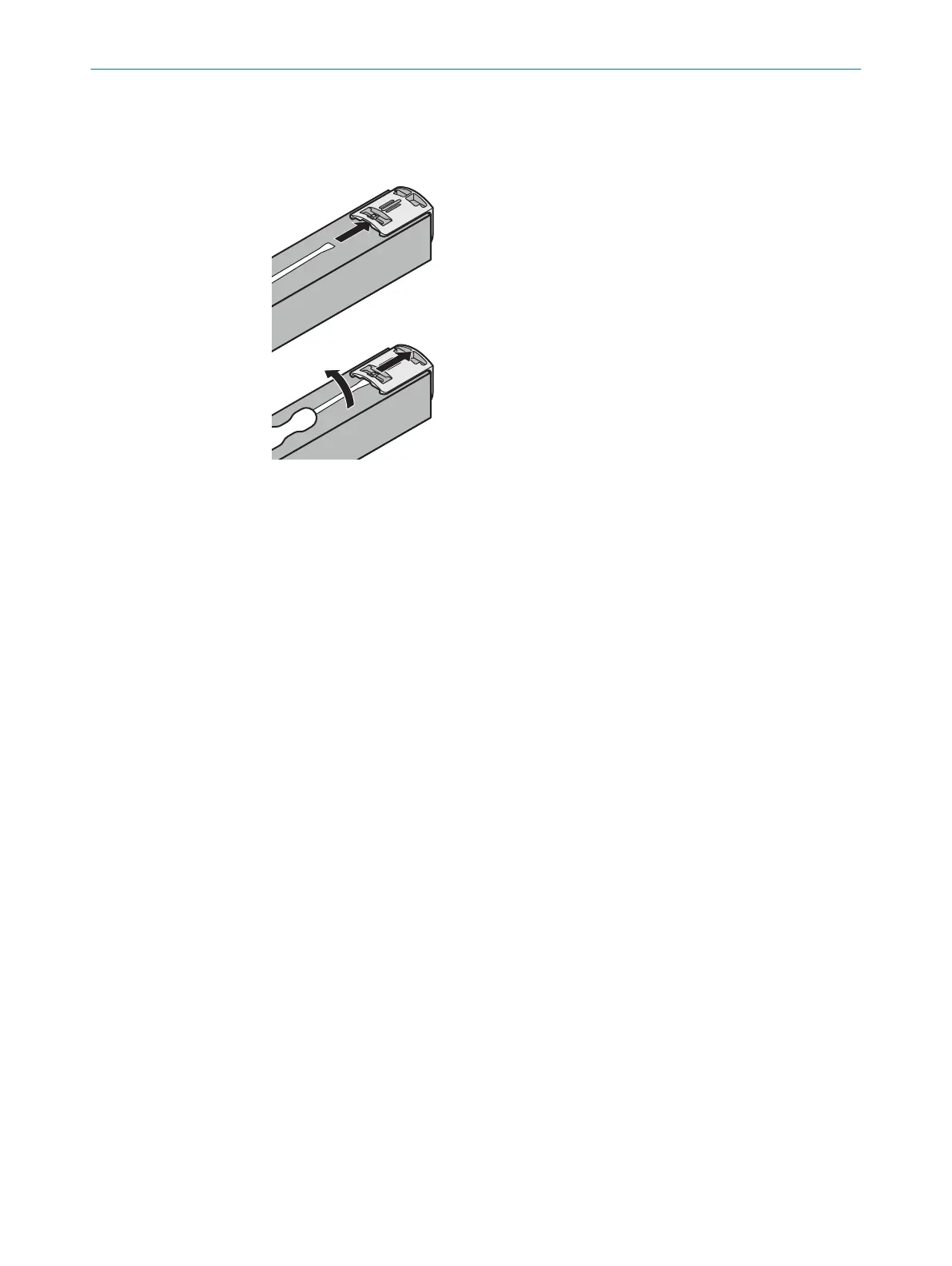

g a suitable tool (e.g. slotted screwdriver), press on the safety clip of the bracket
(!) and pull the bracket off the device with a rotational movement (").
!
"
5.3.6 Mounting the upgrade bracket
Overview
If an e
xisting C4000 safety light curtain is mounted with a swivel-mount bracket or with
a side bracket, it can be replaced with a C4-RD safety light curtain using an exchange
bracket. There is no need to drill new holes, since the existing ones can be used for the
upgrade bracket.
Complementary information
A
dditional information for mounting a safety light curtain with a replacement bracket
can be found in the mounting instructions for the replacement bracket.
MOUNTING 5
8025644/19Z2/2021-03-09 | SICK O P E R A T I N G I N S T R U C T I O N S | C4-RD
43
Subject to change without notice
