SICK C4-RD - Example Applications; Hazardous Point Protection; Access Protection

Further topics
•
"Dia
gnostic LEDs", page 57

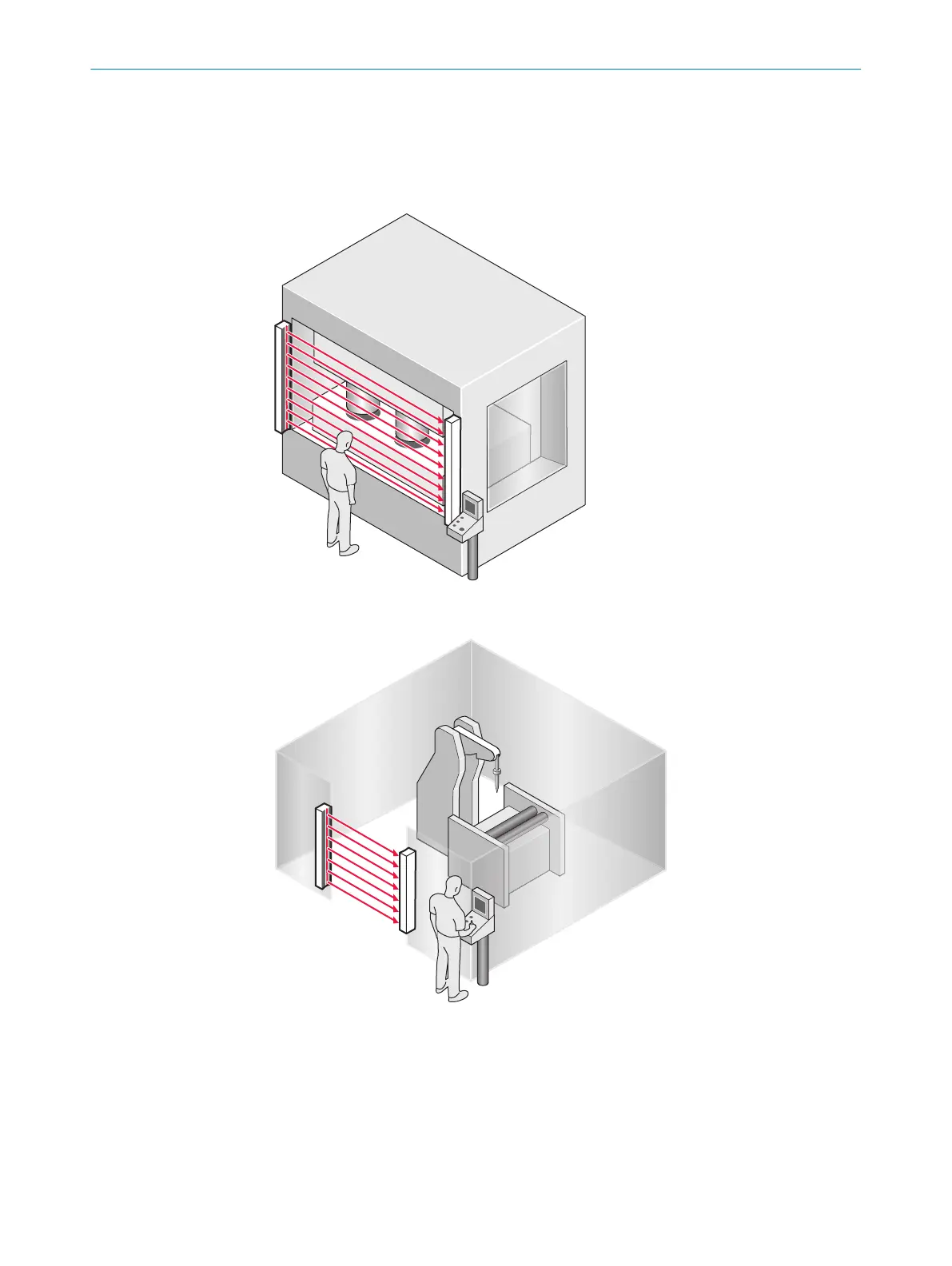

3.3 Example applications
Figure 5: Hazardous point protection
Figure 6: Access protection
PRODUCT DESCRIPTION 3
8025644/19Z2/2021-03-09 | SICK O P E R A T I N G I N S T R U C T I O N S | C4-RD
13
Subject to change without notice
