Sender indicators
!
PWR
"
ERR

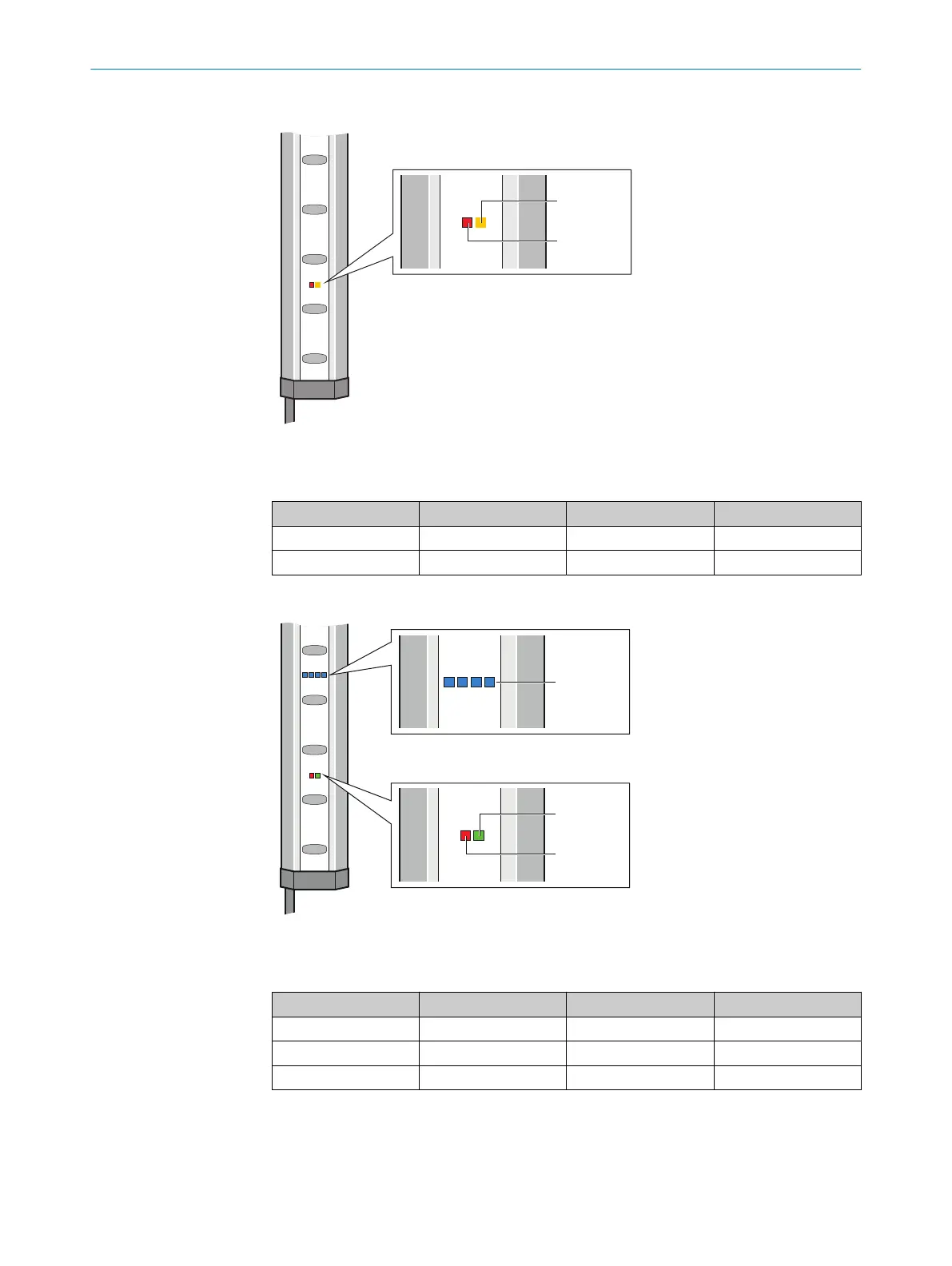

Figure 3: Sender indicators
T
wo LEDs on the sender indicate the operational status:
Position LED color Display Labeling
!
Yellow Status indicator PWR
"
Red Fault indicator ERR
Receiver indicators
!
O
SSD
"
ERR
§
1
2
3
4
Figure 4: Receiver indicators
S
ix LEDs on the receiver indicate the operational status:
Position LED color Display Labeling
!
Red/green OSSD status OSSD
"
Red Fault indicator ERR
§
Blue Alignment quality 1, 2, 3, 4
The blue alignment quality light emitting diodes in combination with the red flashing
ER
R LED also denote faults.
3 P
RODUCT DESCRIPTION
12
O P E R A T I N G I N S T R U C T I O N S | C4-RD 8025644/19Z2/2021-03-09 | SICK
Subject to change without notice
