5.3 Installation
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
b
Observe the calculated minimum distances for the machine in which the safety
light curtain is integrated.
b
Then, mount the safety light curtain such that it is not possible to reach over,
under or around, or to stand behind the safety light curtain, and that the light
curtain cannot be repositioned.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
b
The safety light curtain can only be mounted on machines on which the protective
field width does not change when the safety light curtain is switched on.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
b
The end with the cable connection must point in the same direction for the sender
and receiver.

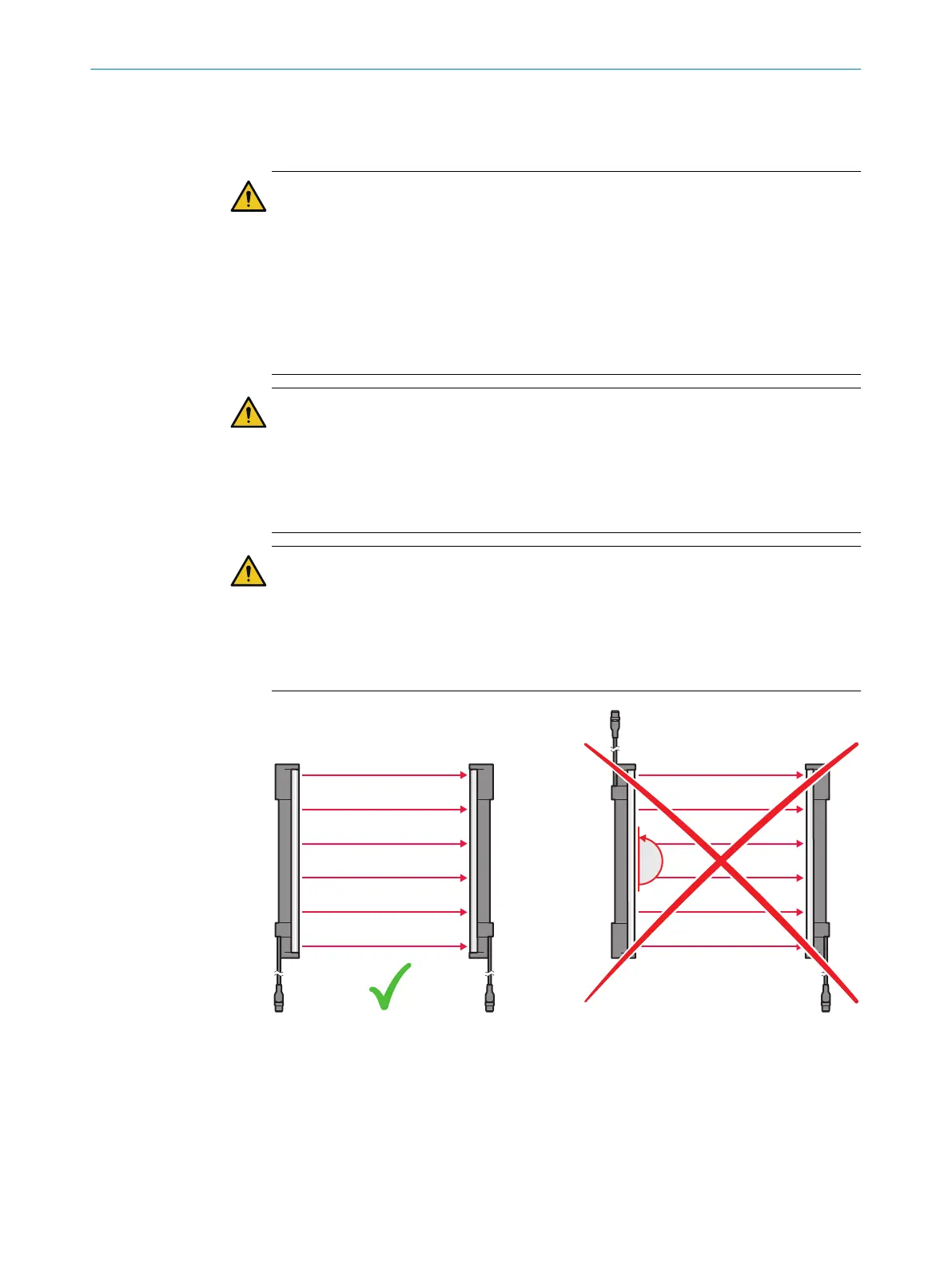

Figure 19: Sender and receiver must not be installed such that they are rotated 180° relative to
e
ach other
Notes on mounting
b Mount t
he sender and receiver on a level surface (!).
MOUNTING 5
