± 15°

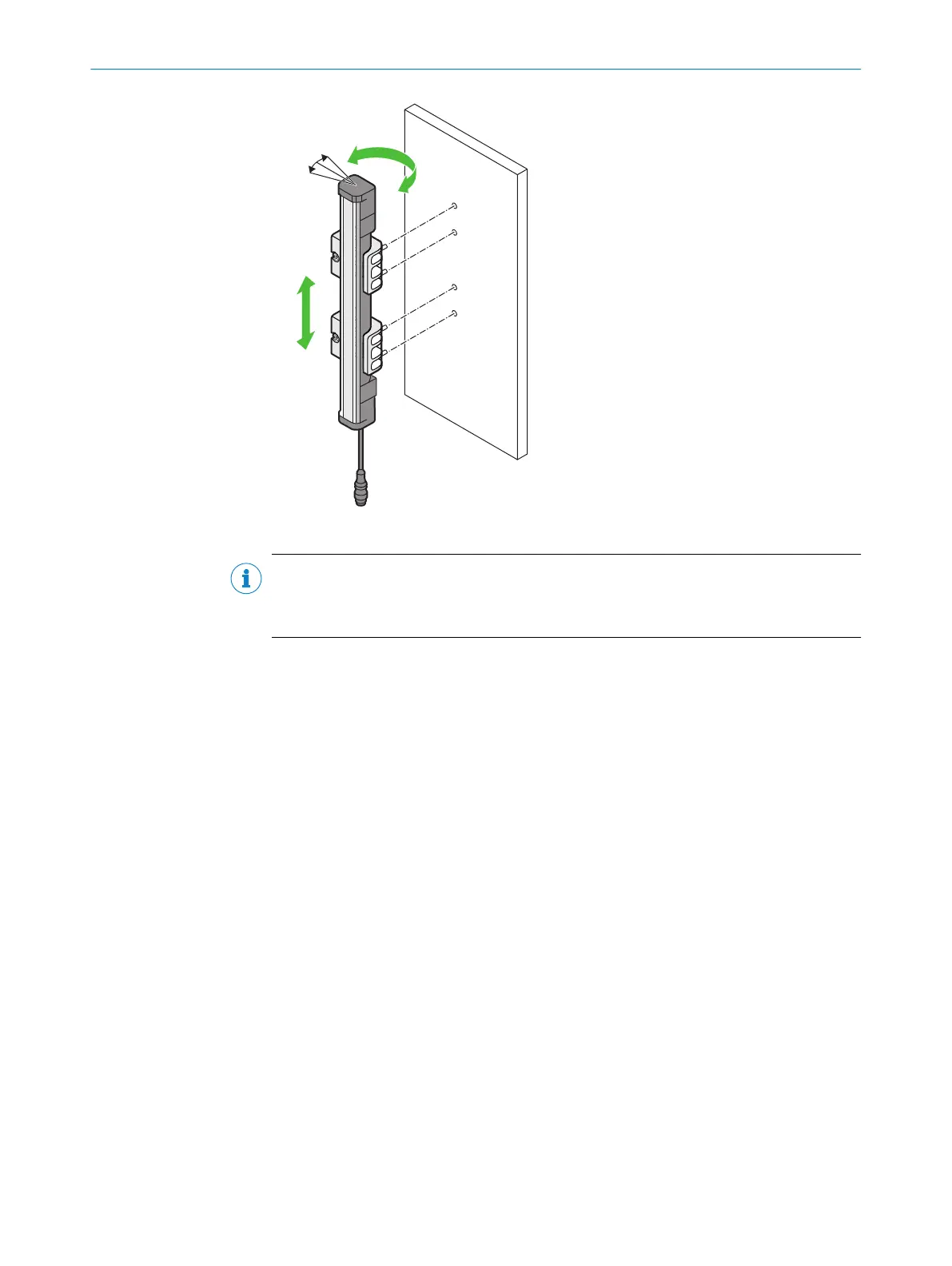

Figure 29: FlexFix bracket: adjust vertically/rotate
NOTE
R
ecommendation for aligning a long device so that it rotates uniformly in both brackets:
b
Grab the alignment device roughly in the center between the two brackets.
7.4.4 Alignment with the Compact FlexFix bracket
Prerequisites
•
T
he sender and receiver have been mounted using a Compact FlexFix bracket
Alignment with the Compact FlexFix bracket
T
he Compact FlexFix bracket offers you the following adjustment options for aligning
the sender and receiver with each other:
•
Shift vertically
•
Rotation (± 15°)
COMMISSIONING 7
