SICK C4-RD User Manual

Swivel mount bracket
7,7
5,2
64,5
9
12,6
28
34
6
37,5

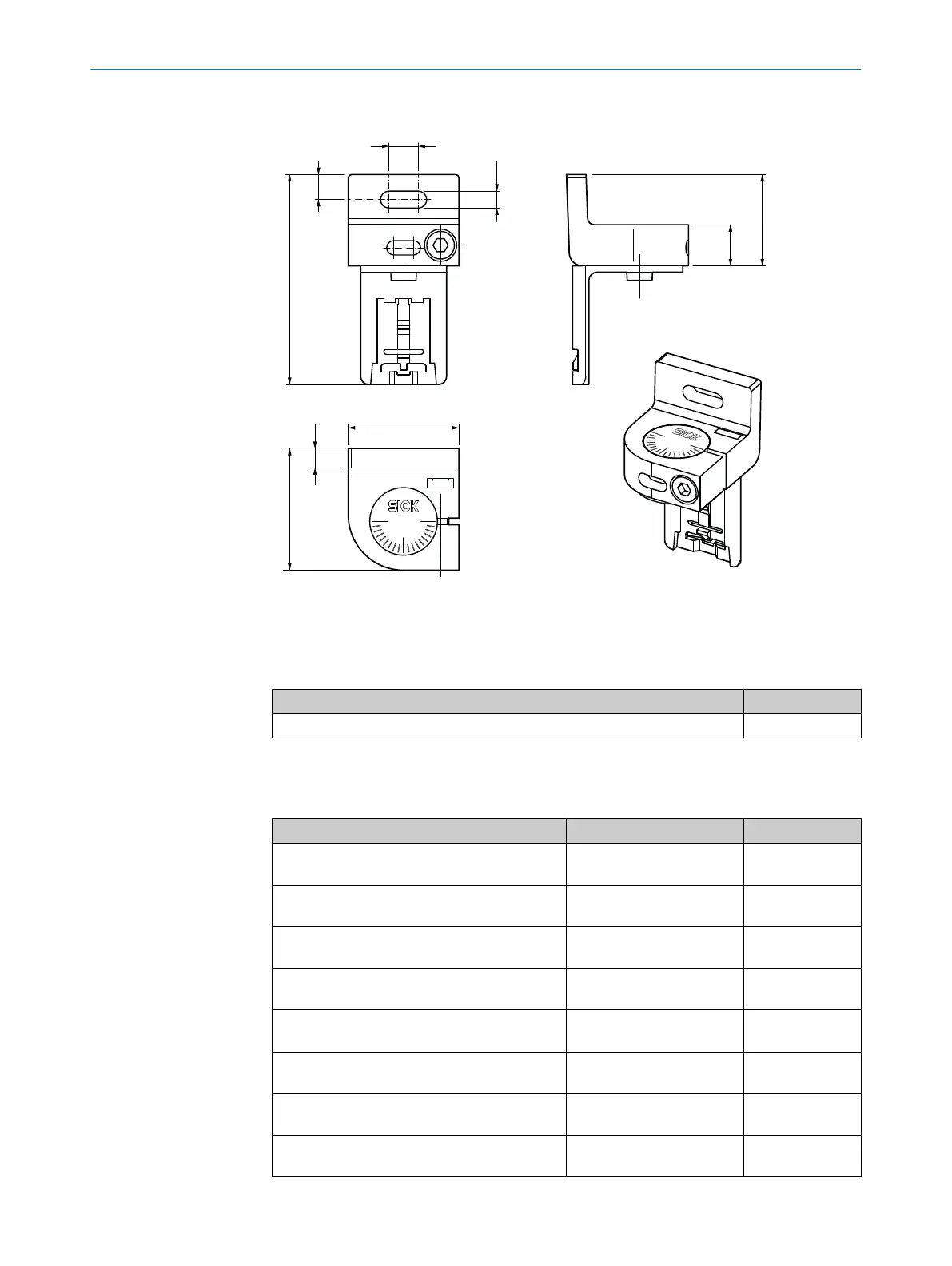

Figure 37: Dimensional drawing of the swivel mount bracket
14.2 Mounting accessories
Table 23: Mounting accessories ordering information
Part Part number
Alignment tool 4084133
14.3 Connectors
Table 24: Ordering information for M12 connecting cable, 5-pin (0.34 mm
2
)
1)
Part Type code Part number
Female connector, straight, 2 m cable, flying
leads
YF2A15-020UB5XLEAX 2095617
Female connector, straight, 5 m c
able, flying
leads
YF2A15-050UB5XLEAX 2095618
Female connector, straight, 10 m cable, flying
leads
YF2A15-100UB5XLEAX 2095619
Female connector, straight, 15 m cable, flying
leads
YF2A15-150UB5XLEAX 2095620
Female connector, straight, 20 m cable, flying
leads
YF2A15-200UB5XLEAX 2095614
Female connector, straight, 30 m c
able, flying
leads
YF2A15-300UB5XLEAX 2095621
Female connector, angled, 2 m cable, flying
leads
YG2A15-020UB5XLEAX 2095772
Female connector, angled, 5 m c
able, flying
leads
YG2A15-050UB5XLEAX 2095773
14 ACCESSORIES
72
O P E R A T I N G I N S T R U C T I O N S | C4-RD 8025644/19Z2/2021-03-09 | SICK
Subject to change without notice
