Alignment with the QuickFix bracket
T
he QuickFix bracket offers you the following adjustment options for aligning the sender
and receiver with each other:
•
Shift vertically

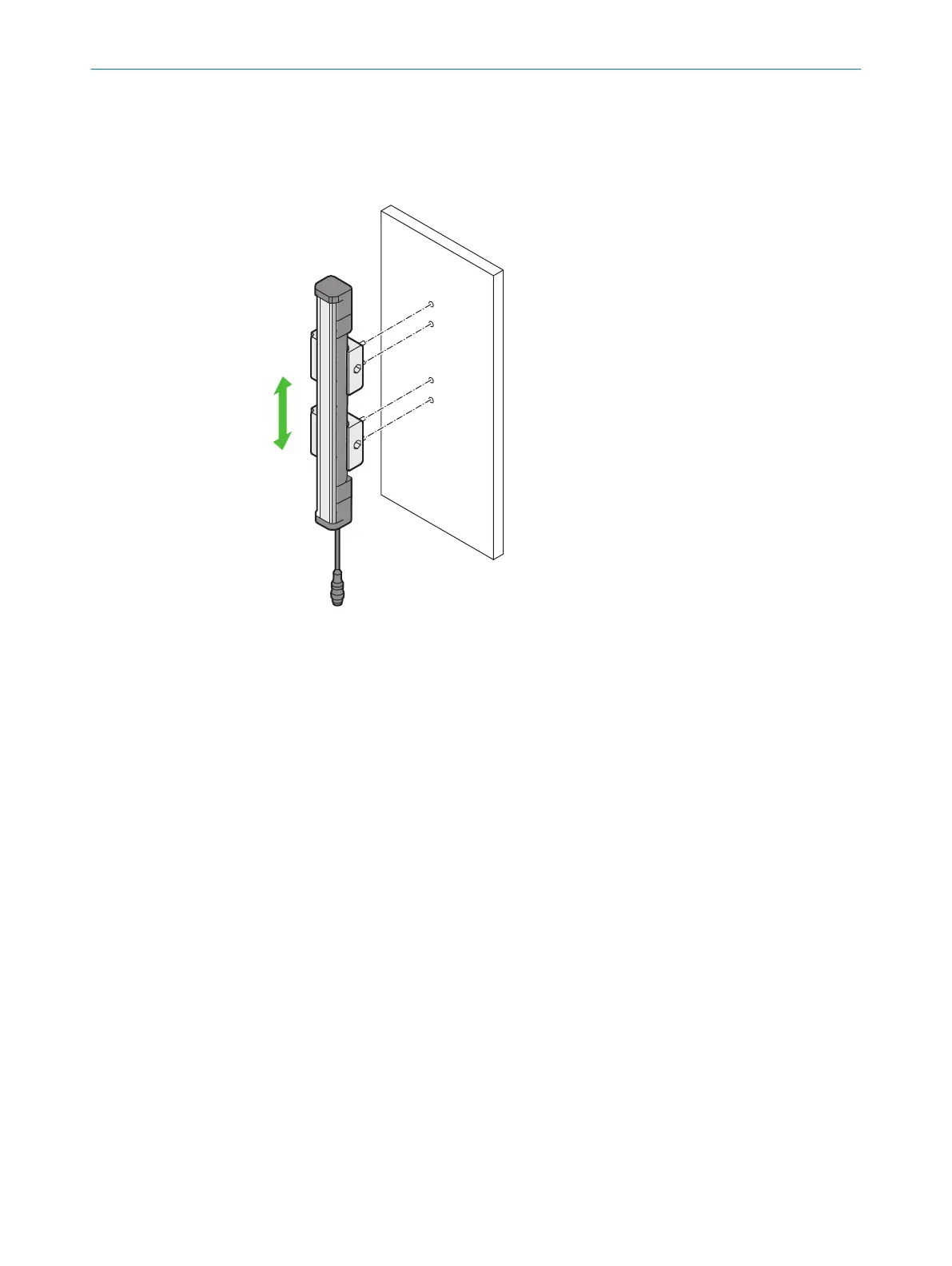

Figure 28: QuickFix bracket: adjust vertically
7.4.3 Alignment with the FlexFix bracket or with the upgrade bracket
Prerequisites
•
A F
lexFix bracket or upgrade bracket is used to mount the sender and receiver.
Alignment with the FlexFix bracket or the upgrade bracket
T
he FlexFix bracket or upgrade bracket offer you the following adjustment options for
aligning the sender and receiver with each other:
•
Shift vertically
•
Rotate (± 15°)
7 C
OMMISSIONING
50
O P E R A T I N G I N S T R U C T I O N S | C4-RD 8025644/19Z2/2021-03-09 | SICK
Subject to change without notice
