SICK C4-RD User Manual

$
Torque: 4.5 Nm to 5 Nm

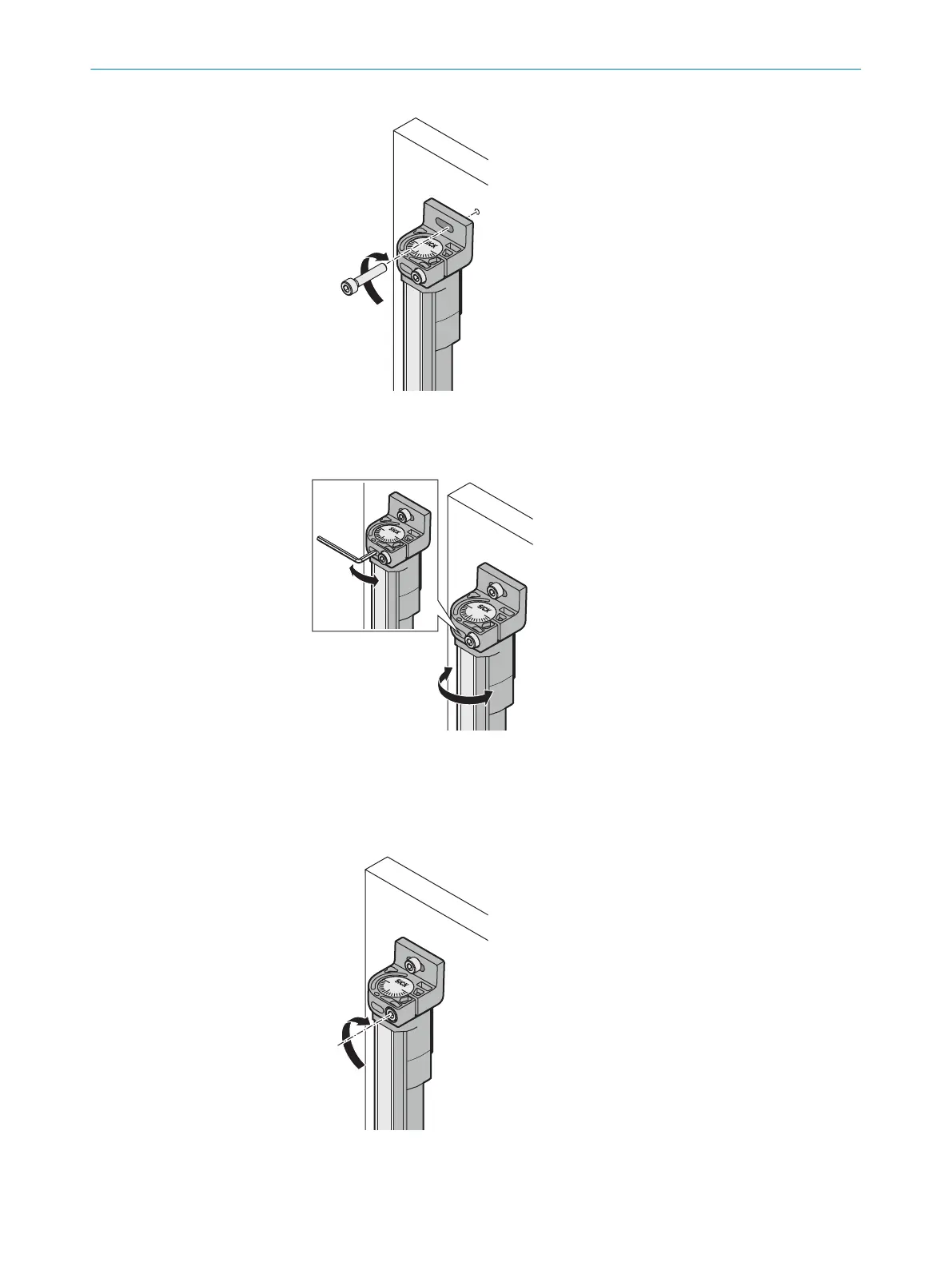

5.
Ali
gn the device in the bracket. (%)
%
+/-270°
+/-9°
The device can be rotated up to ± 270° in the bracket. Fine adjustment is
pos
sible as an option via the slot on the front of the bracket. To do so, insert a
hexagon key into the slot and align the device by up to ± 9°.
6. When the device is correctly aligned, tighten the M5 screw to mount the two
individual parts. (&)
&
Torque: 3 Nm to 3.5 Nm
✓
T
he device is firmly mounted in the bracket.
5 MOUN
TING
42
O P E R A T I N G I N S T R U C T I O N S | C4-RD 8025644/19Z2/2021-03-09 | SICK
Subject to change without notice
