Operating Instructions Chapter 10
CLV 42x bar code scanner
Appendix
8 009 981/O078/16-08-2004 © SICK AG · Division Auto Ident · Germany · All rights reserved 10-3
10.2.3 Reading field diagram for CLV 420 line/raster scanner with 105° angle
attachment (lateral reading window)

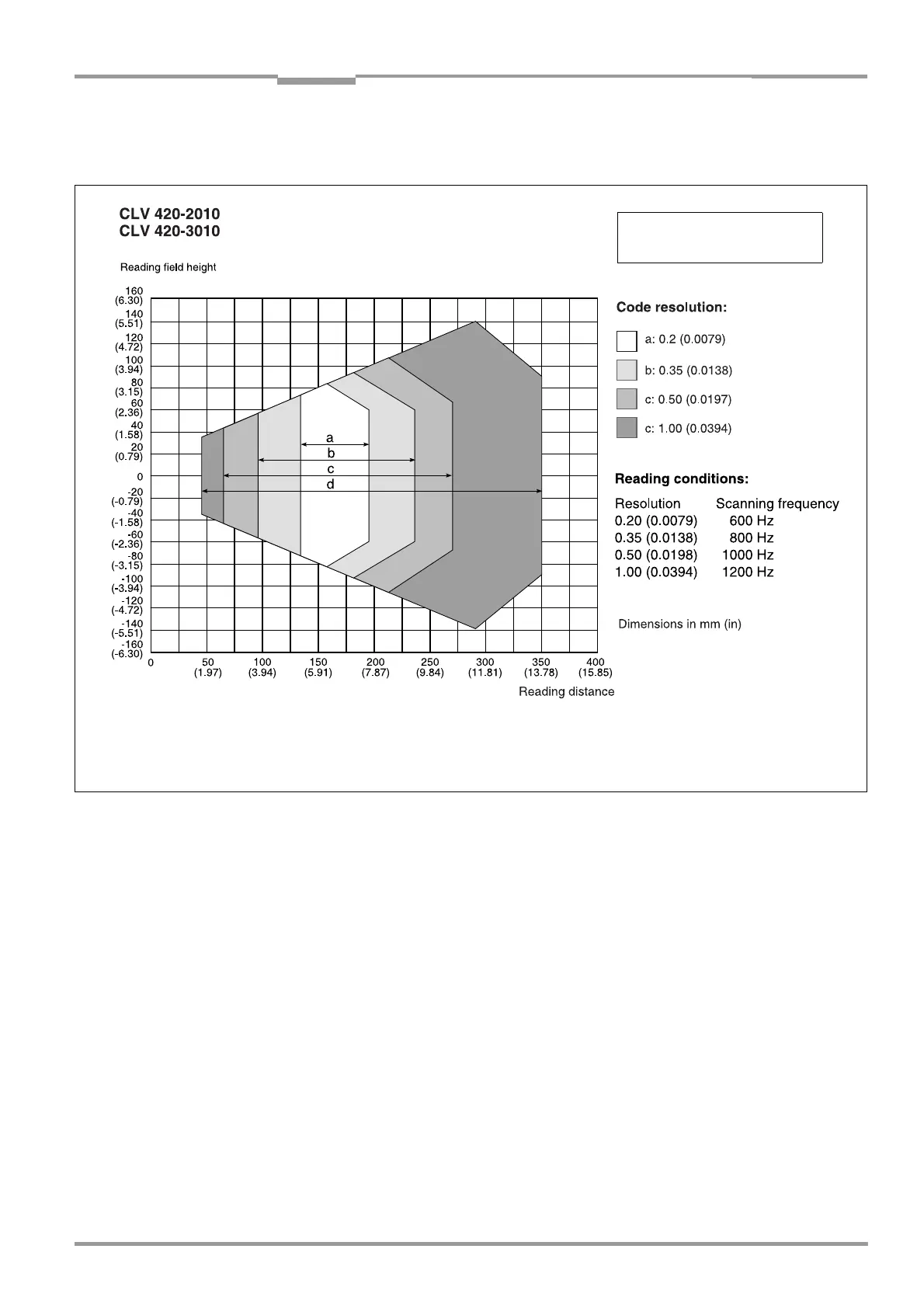

Fig. 10-2: CLV 420-2010/3010: reading range (DOF) for line/raster scanner with 105° angle attachment
General reading conditions:
see Table 10-1, Page 10-1
Scan frequency/reading distance
characteristics:
see Fig. 10-5, Page 10-6
