Operating Instructions
Chapter
10
CLV 42x bar code scanner
Appendix
8 009 981/O078/1
6-08-2004
©
SICK AG · Division Auto Ident
· Germany · All rights reserved
10-5
10.2.5

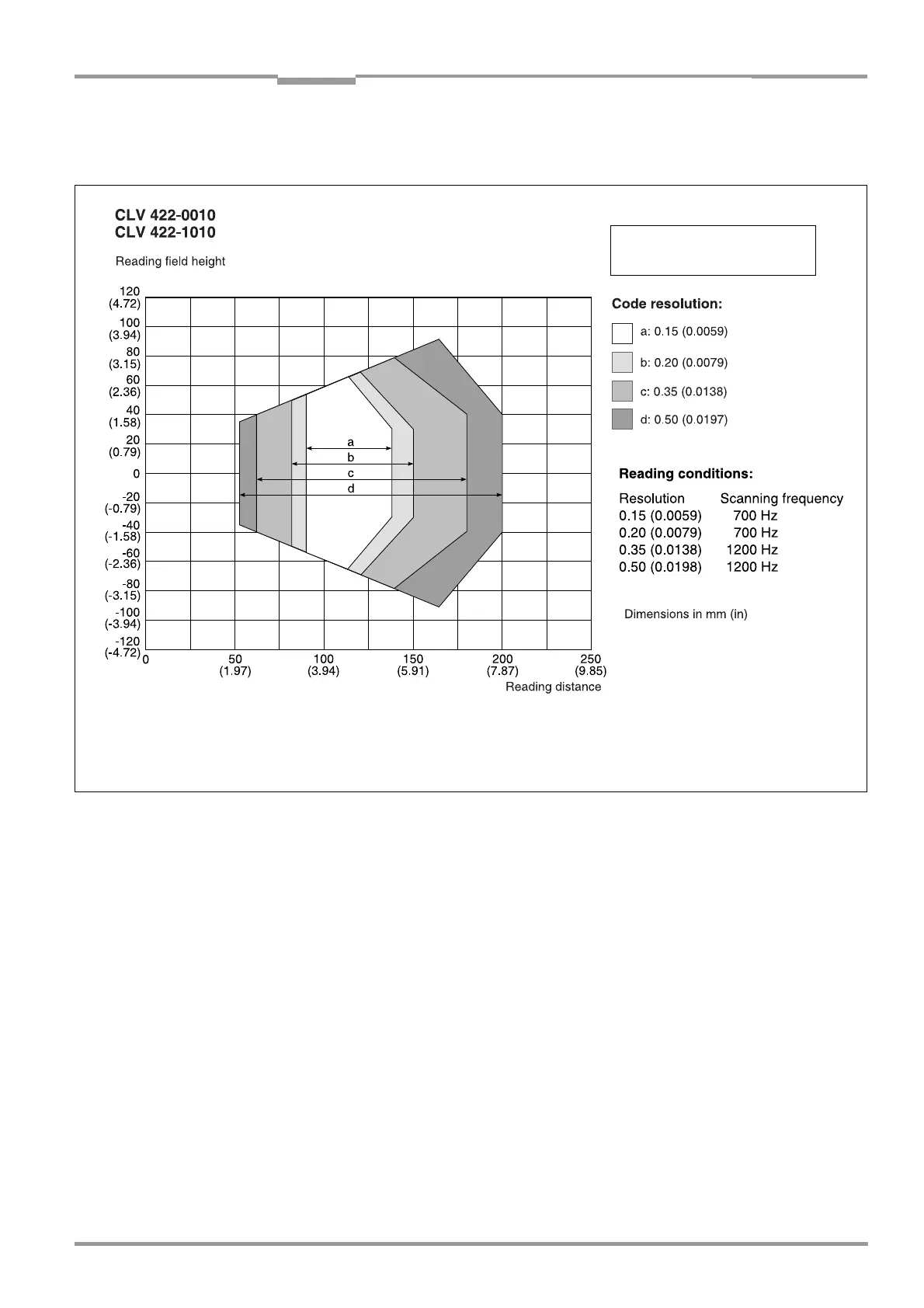

Reading field
diagram
for CLV 422
line/raster scanner
(fro
nt
reading windo
w
)
Fig. 10-4:
CLV 422-
0010/-1010
: reading range (DOF) for line/raster scanner
General reading conditions:
see
Table 10-1, Page 10-1
Scan frequency/reading distance
characteristics:
see
Fig. 10-5, Page 10-6
96
98
