Appendix
10.2.4 Reading field diagram for CLV 421 line/raster scanner
(front reading window)

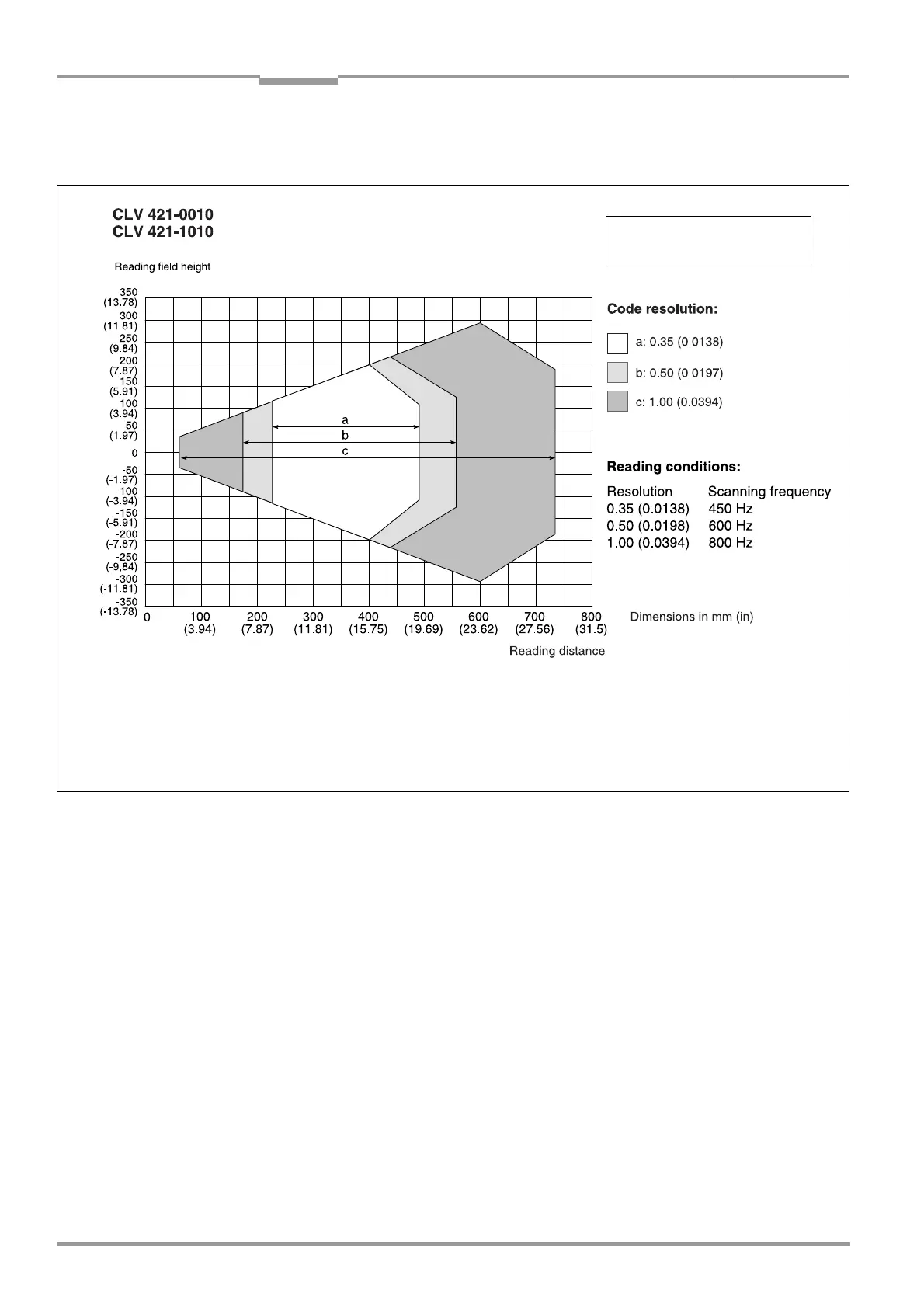

Fig. 10-3: CLV 421-0010/1010: reading range (DOF) for line/raster scanner
General reading conditions:
see Table 10-1, Page 10-1
Scan frequency/reading distance
characteristics:
see Fig. 10-5, Page 10-6
